- 72 -GA-8I865PE-L Motherboard
English
The BIOS file becomes
F12 after updating
6. Press Del to enter BIOS menu after system reboots. When you are in BIOS menu, move to Load
Fail-Safe Defaults item and press Enter to load BIOS Fail-Safe Defaults. Normally the system
redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading
the BIOS defaults after BIOS has been upgraded.
The following is an AMI BIOS menu screen. However, you can also find similar option in
AWARD BIOS menu.
AMIBIOS SIMPLE SETUP UTILITY - VERSION 2.00
(C ) 2001 American M egatrends, Inc. All Rights Reserv ed
STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP / PCI CONFIGURATION IDE HDD AUTO DETEC TION
LOAD FAIL-SAFE DEFAULTS SAVE & EXIT SETUP
LOAD OPTIMIZED DEFAULTS EXIT WITHOUT SAVING
ESC: Quit hifg: Select Item F5: Old Values F6: Fail-Safe Values
F7: Optimized Values F8: Dual BIOS/Q-Flash F10:Sav e & Exit
Load Fail-Safe Defaults
Press Enter on
your keyboard

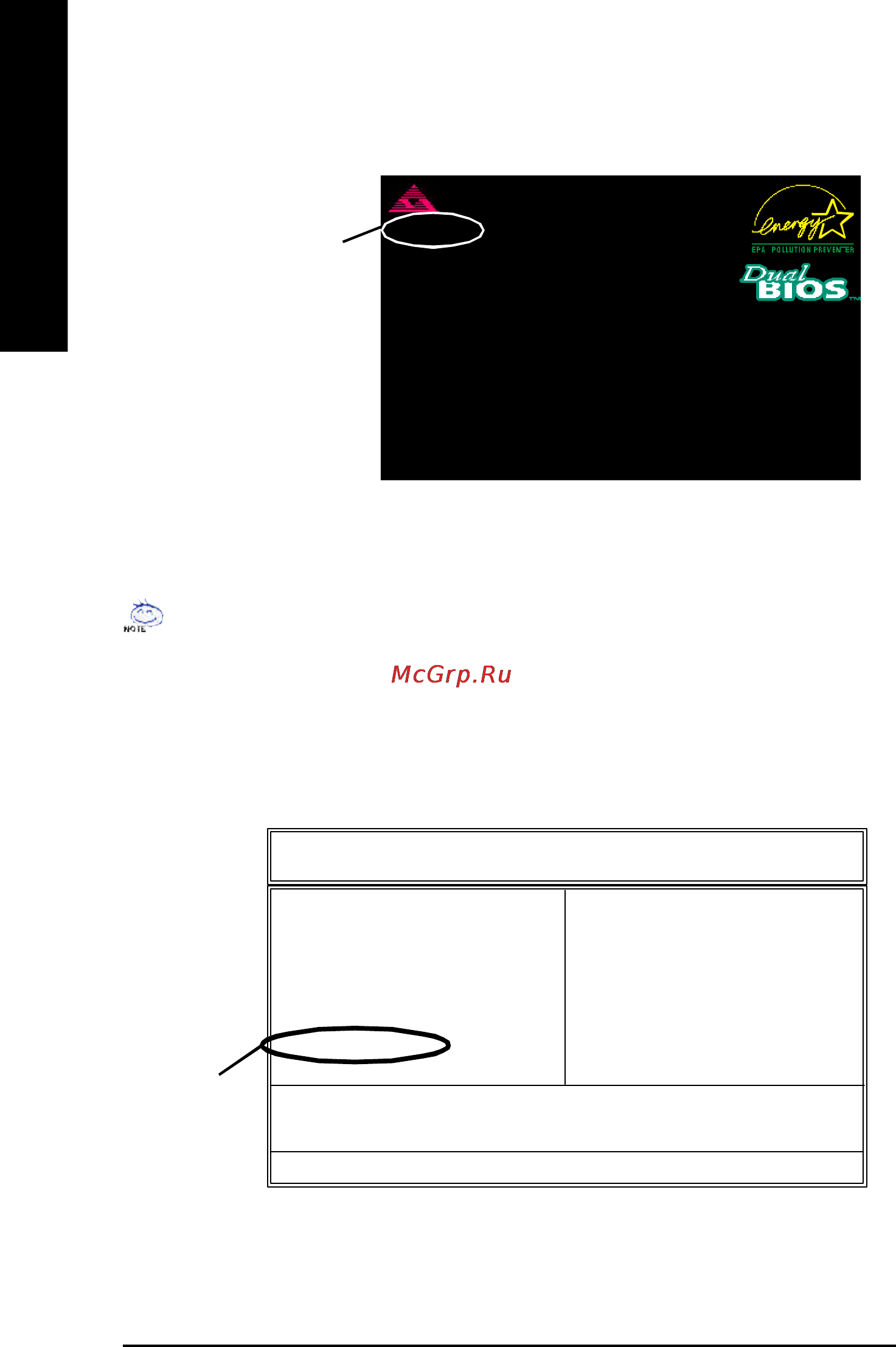

After system reboots, you may find the BIOS version on your boot screen becomes the one you
flashed.
7VRXP F12
AMD-Athlon(tm)Processor-1333MHz
Check System Health !
Checking NVRAM...Update OK
262144KB
DEL:Steup/Dual BIOS/Q-Flash F8:Boot Menu F12:Network boot TAB:Logo
Auto-Detecting Pri Master..IDE Hard Disk
Auto-Detecting Pri Slave...Not Detected
Auto-Detecting Sec Master..ATAPI CDROM
Auto-Detecting Sec Slave.. Not Detected
( C ) American Megatrends Inc.,
62-2003-001199-00101111-040201-KT333-GA7VRXP1-
American Release:08/23/2002
Megatrends AMIBIOS (C) 1999 American Megatrend
