Beko HIAG64223X [11/68] Installation

Содержание

Похожие устройства

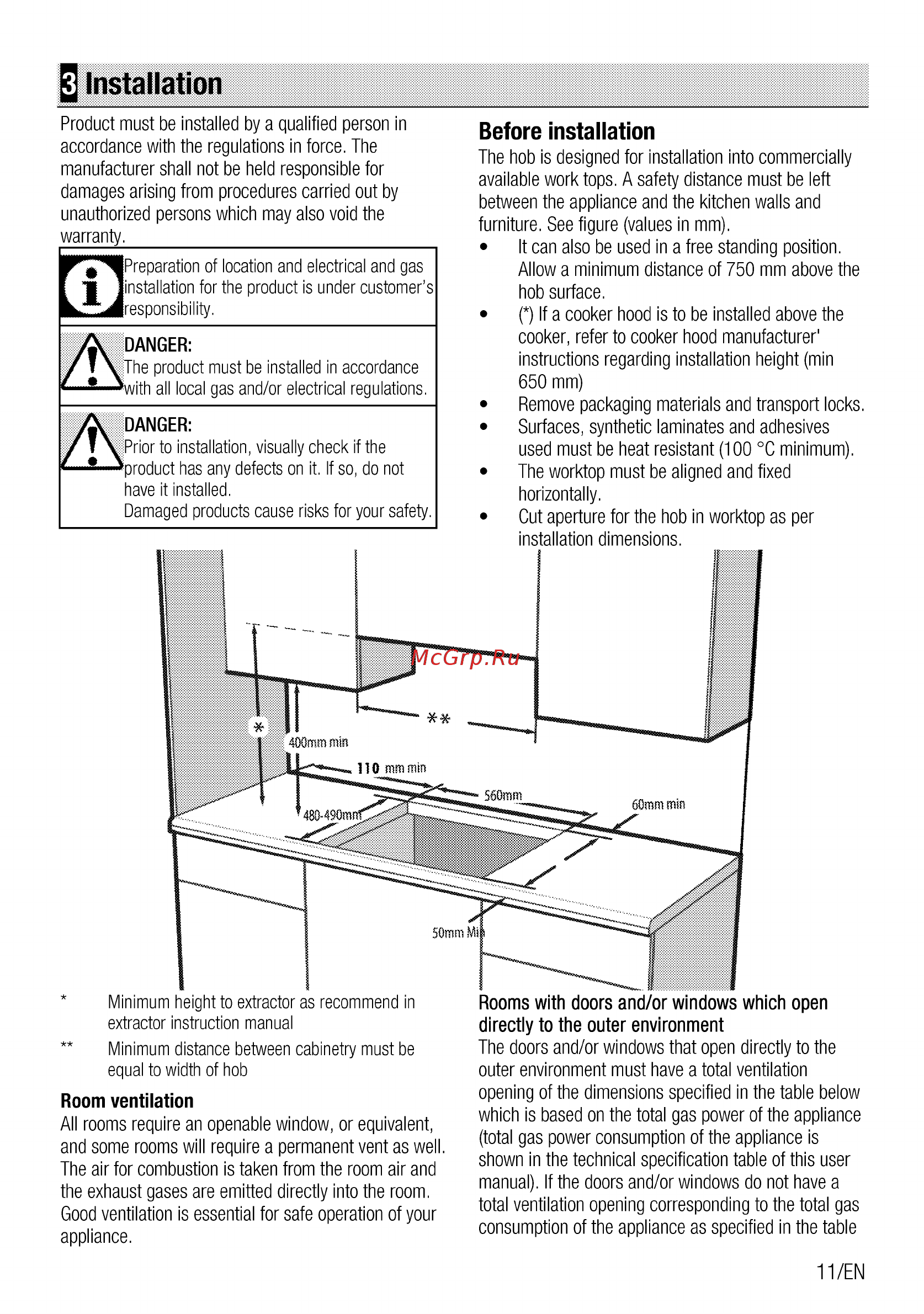

0 Installation Product must be installed by a qualified person in accordance with the regulations in force The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons which may also void the warranty Preparation of location and electrical and gas installation for the product is under customer s responsibility m DANGER The product must be installed in accordance with all local gas and or electrical regulations DANGER Prior to installation visually check if the product has any defects on it If so do not have it installed Damaged products cause risks for your safety Minimum height to extractor as recommend in extractor instruction manual Minimum distance between cabinetry must be equal to width of hob Room ventilation All rooms require an openable window or equivalent and some rooms will require a permanent vent as well The air for combustion is taken from the room air and the exhaust gases are emitted directly into the room Good ventilation is essential for safe operation of your appliance Before installation The hob is designed for installation into commercially available work tops A safety distance must be left between the appliance and the kitchen walls and furniture See figure values in mm It can also be used in a free standing position Allow a minimum distance of 750 mm above the hob surface If a cooker hood is to be installed above the cooker refer to cooker hood manufacturer1 instructions regarding installation height min 650 mm Remove packaging materials and transport locks Surfaces synthetic laminates and adhesives used must be heat resistant 100 C minimum The worktop must be aligned and fixed horizontally Cut aperture for the hob in worktop as per Rooms with doors and or windows which open directly to the outer environment The doors and or windows that open directly to the outer environment must have a total ventilation opening of the dimensions specified in the table below which is based on the total gas power of the appliance total gas power consumption of the appliance is shown in the technical specification table of this user manual If the doors and or windows do not have a total ventilation opening corresponding to the total gas consumption of the appliance as specified in the table 11 EN
