Gigabit Unmanaged Switch
02 Introduction
■
TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TL-SG1008 supports IEEE802.3x
flow control for full-duplex mode and backpressure for half-duplex transfer mode
■
TL-SG1008 supports IEEE802.1p standard
■
Non-blocking switching architecture that forwards and filters packets at full wire-speed
for maximum throughput
■
Supports MAC address auto-learning and auto-aging
■
Desktop and rack-mountable steel case
■
Internal power supply
For TL-SG1008MP:
■
Complies with IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af,
IEEE802.1p and IEEE802.3at standards
■
8 10/100/1000Mbps Auto-Negotiation RJ45 ports all supporting PoE function and
Auto-MDI/MDIX
■
Supports PoE power up to 126W for all PoE ports
■
Supports PoE IEEE802.3af/IEEE802.3at-compliant PDs
■
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-
duplex Mode
■
4K MAC address table of the TL-SG1008MP with auto-learning and auto-aging
■
Internal power supply
1.3 Appearance
■
Front Panel

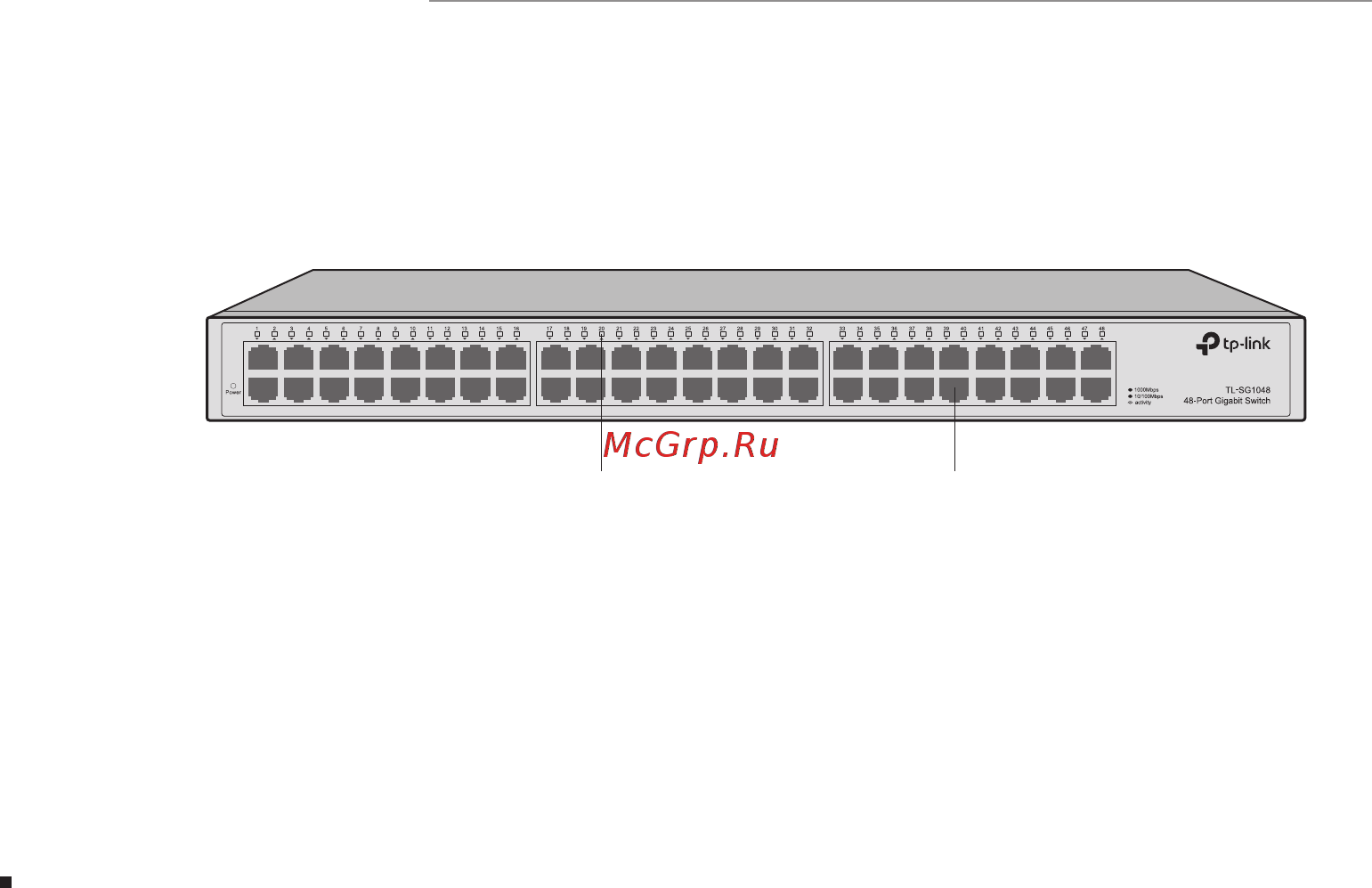

The front panel of TL-SG1048 is shown as the following figure.
Figure 1-1 Front Panel of TL-SG1048
10/100/1000Mbps
RJ45 Port
LEDs
