Gigabit Unmanaged Switch
03Introduction
LEDs
LED Status Indication
Power
On The switch is powered on.
Off The switch is powered off or power supply is abnormal.
Link/Act
On
Green The corresponding port is running at 1000Mbps.
Yellow
The corresponding port is
running
at
10/100Mbps.
Flashing
The corresponding port is transmitting or receiving data.
Off There is no device linked to the corresponding port.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED.

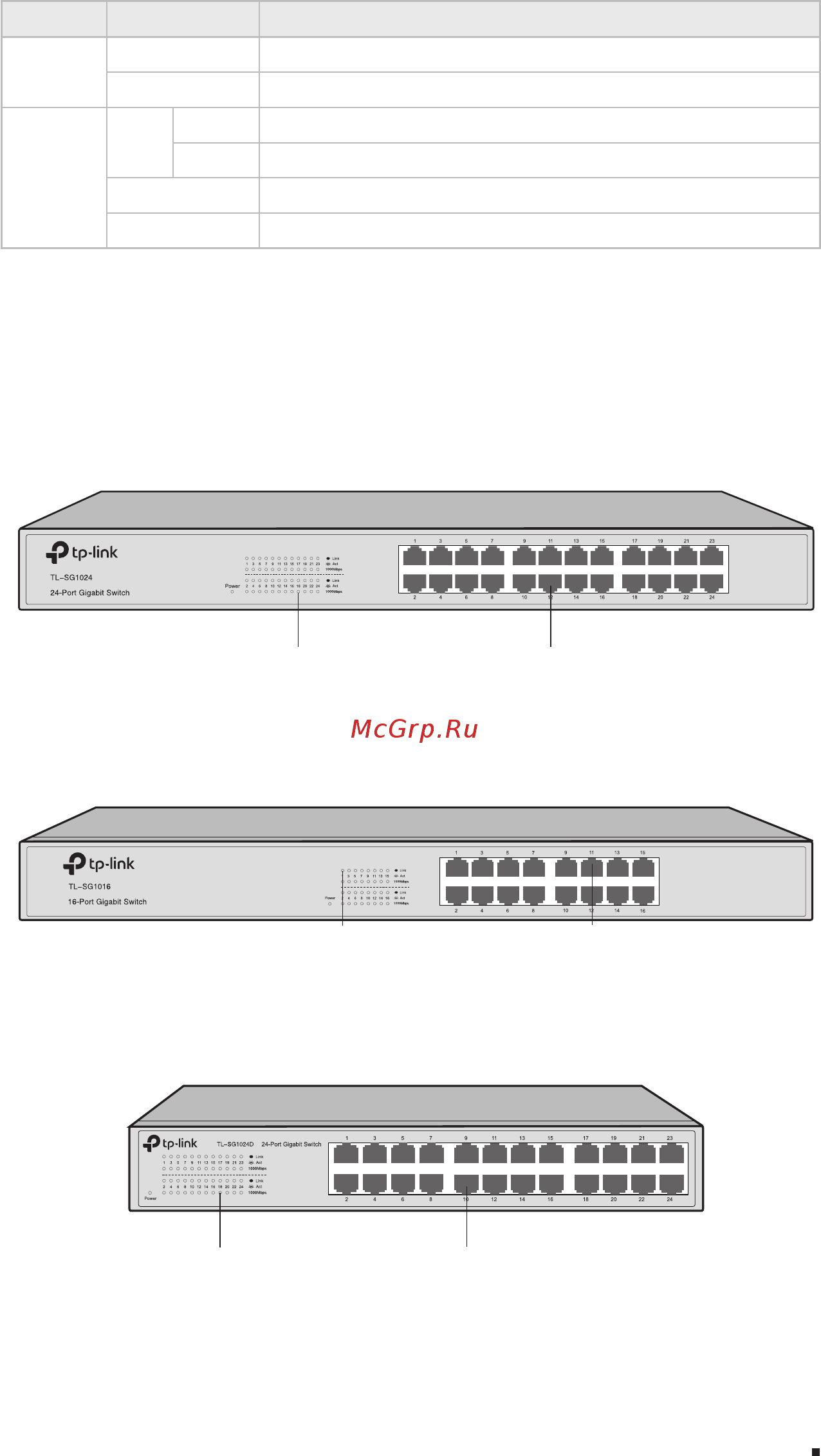

The front panel of TL-SG1024 is shown as the following figure.
Figure 1-2 Front Panel of TL-SG1024
10/100/1000Mbps
RJ45 Port
LEDs
The front panel of TL-SG1016 is shown as the following figure.
Figure 1-3 Front Panel of TL-SG1016
10/100/1000Mbps
RJ45 Port
LEDs
The front panel of TL-SG1024D is shown as the following figure.
Figure 1-4 Front Panel of TL-SG1024D
10/100/1000Mbps
RJ45 Port
LEDs
