Gigabit Unmanaged Switch
05Introduction

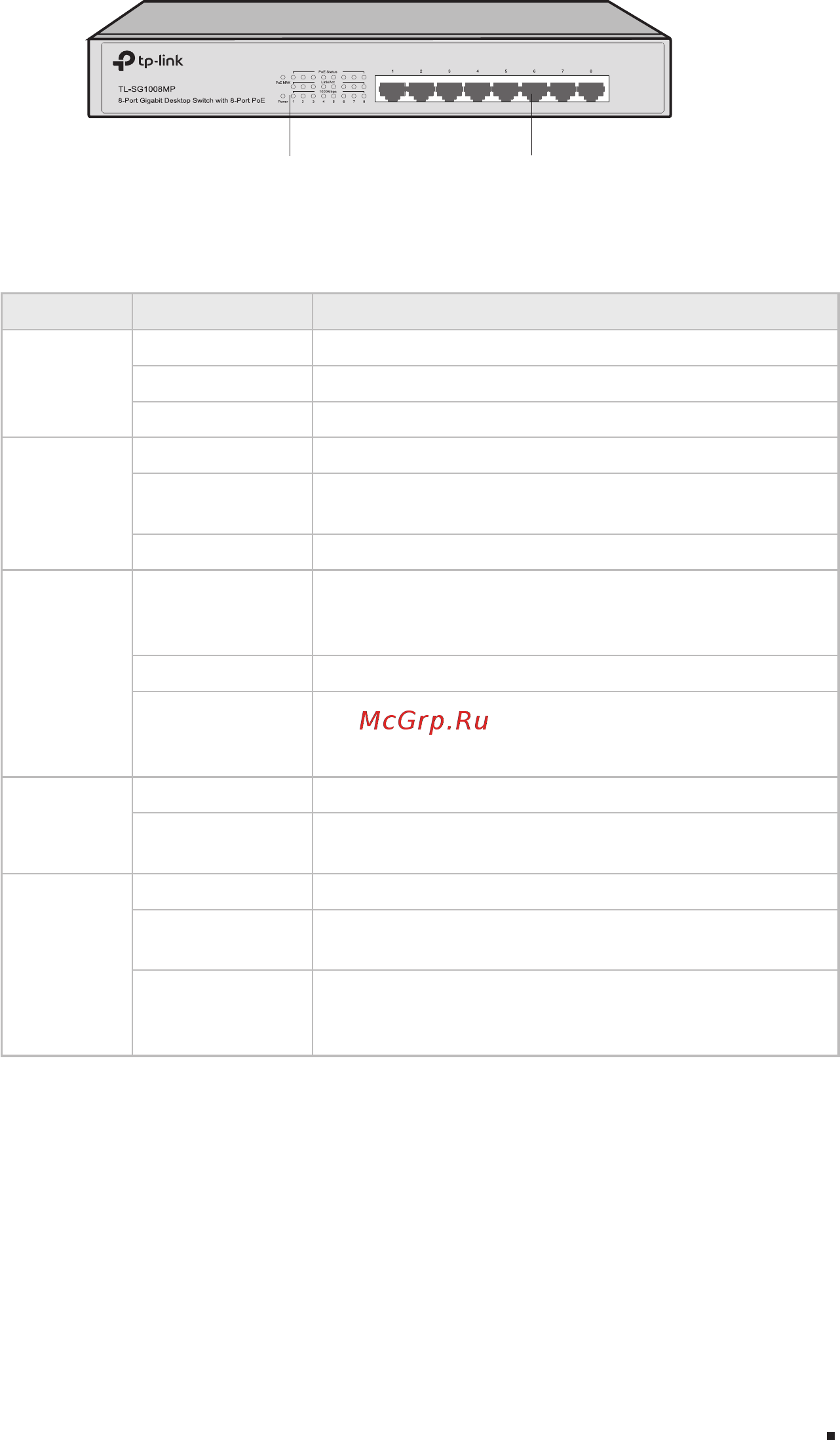

The front panel of TL-SG1008MP is shown as the following figure.
Figure 1-7 Front Panel of TL-SG1008MP
10/100/1000Mbps
RJ45 Port and PoE Port
LEDs
LEDs
LED Status Indication
Power
On (green) The switch is powered on.
Flashing (green) Power supply is abnormal.
Off The switch is powered off.
Link/Act
On (green) A valid link is established on the port.
Flashing (green)
The corresponding port is transmitting or receiving
data.
Off There is no device linked to the corresponding port.
PoE MAX
On (green)
The power of all the connected PoE ports is
between 120W and 126W. No power may be
supplied if additional PDs are connected.
Flashing (green) The power of all the connected PoE ports is ≥126W.
Off
The power of all the connected PoE ports is <120W,
or there is no PD connected to the corresponding
port.
1000Mbps
On (green) The corresponding port is running at 1000Mbps.
Off
The corresponding port is not running at 1000Mbps
or has no link.
PoE Status
On (green) The port is connecting and supplying power to a PD.
Flashing (green)
The PoE power circuit may be in short or the power
current may be overloaded.
Off
No PD is connected to the corresponding port, or
no power is supplied according to the power limits
of the port.
10/100/1000Mbps RJ45 Port and PoE Port
TL-SG1008MP switch is equipped with 8 10/100/1000Mbps Auto-Negotiation RJ45
ports and all of them support PoE function.
The 8 10/100/1000Mbps RJ45 ports are designed to connect to the device with
a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Once the network devices are
connected to these 8 ports through the network cable, the switch will make them
plug and play according to the Auto-MDI/MDIX detection. The working status can be
indicated by the Link/Act LEDs and 1000Mbps LEDs on the front panel.
