Series Pressure Sensor

Instruction Sheet

Thank you very much for choosing Delta DPA series pressure sensor. Please read this instruction sheet carefully before using your DPA.

Keep this instruction sheet handy for quick reference.

 Warning

DANGER! CAUTION! ELECTRIC SHOCK!

DPA is a pressure measurement device. DO NOT use it out of its specification. Improper pressure or incorrect wiring may

cause series injuries on staff or damages on other devices.

1. Keep away from high-voltage and high-frequency environment during the installation in case of interference. Prevent using the device in

premises which contain:

(a) dust or corrosive gas; (b) high humidity and high radiation; (c) shock and vibration.

2. DPA can only be used for air pressure measurement and should avoid corrosive, inflammable or toxic gas measurement.

3. Make sure the power supply is switched off when installing or dismounting DPA and the pressure source stops its action in case harms

occur on human body and properties.

4. DO use parts compatible to the specification of the pressure pore for connection to avoid mistaken measurement or safety problems.

5. Before switching on the power supply, check the signal connection, e.g. the input voltage and polarity. Voltage that is too high may cause

damages on DPA.

6. DO use dry cloth and DO NOT use acid or alkaline liquid to clean the device.

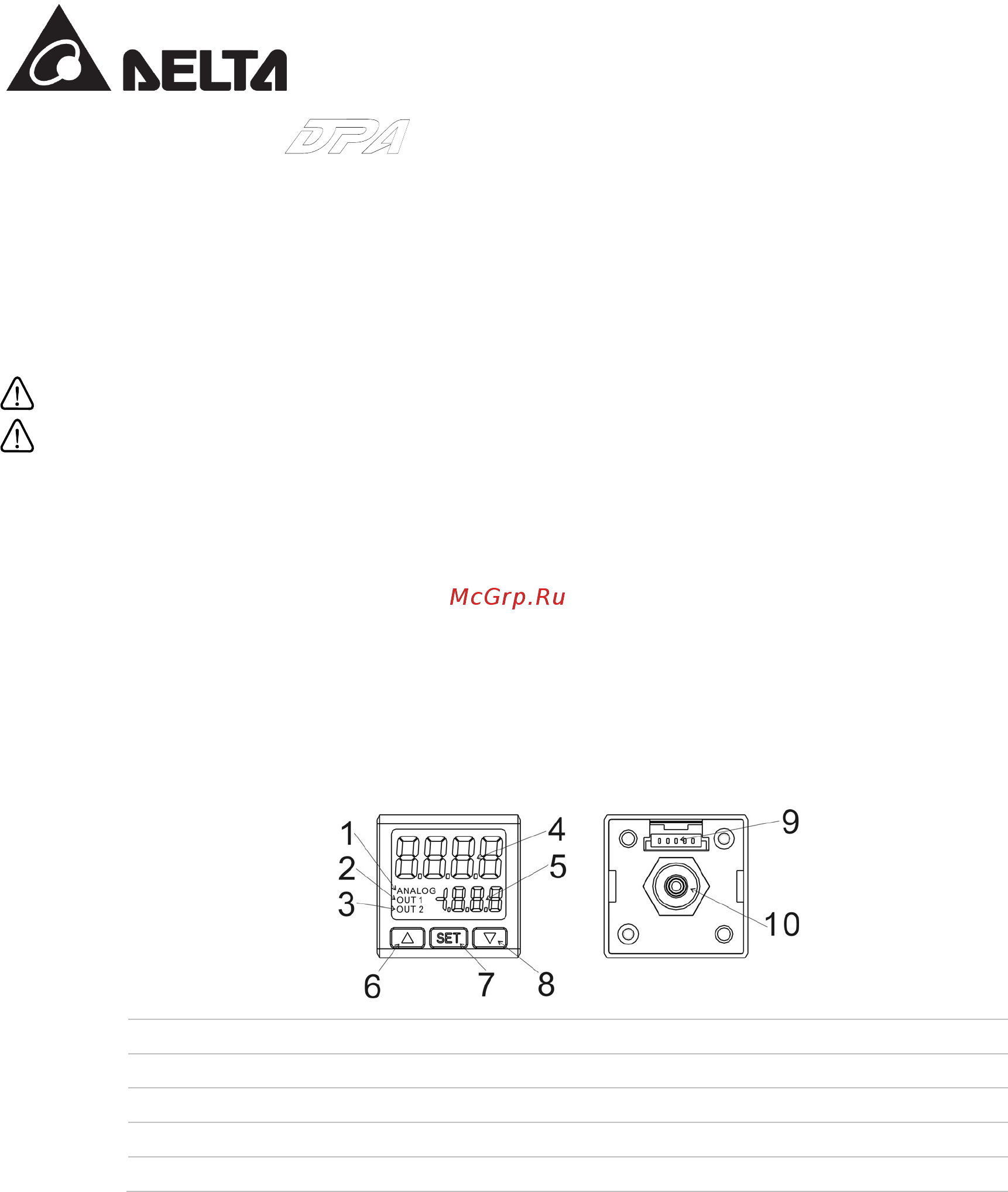

 Product Profile & Outline

1. Analog output indicator 6. UP key

2. Digital output 1 indicator 7. SET key

3. Digital output 2 indicator 8. DOWN key

4. Pressure/parameter display 9. Power supply and output terminals

5. SV/setup item display 10. Pressure input pore

 Contents in the pack: Pressure sensor, signal wire, unit sticker, instruction sheet

 Optional accessories: Panel mounting parts, metal mounting parts
