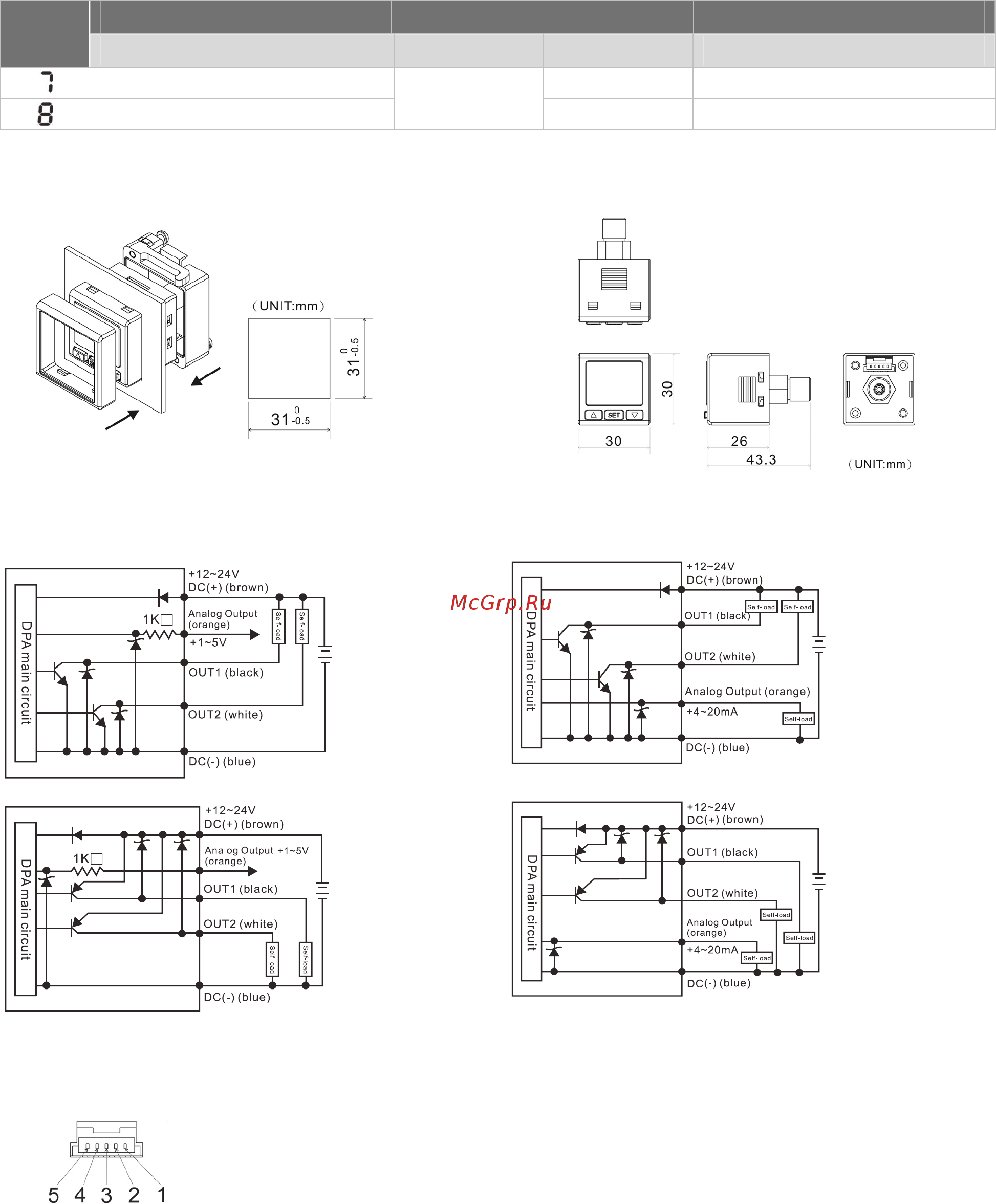

 How to Install  Dimension

 Panel: Use optional accessory DPA-PFKit.

 To install the fixing frame, you have to purchase the optional

accessory: DPA-FMKit.

 Internal Circuit

1. Positive power supply input (brown)

2. Digital output 1 signal (black)

3. Digital output 2 signal (white)

4. Analog output signal (orange)

5. Negative power supply input (blue)

(+ 1 ~ 5V output)

+ 4 ~ 20mA out

(+ 4 ~ 20mA output)
