- 7 -

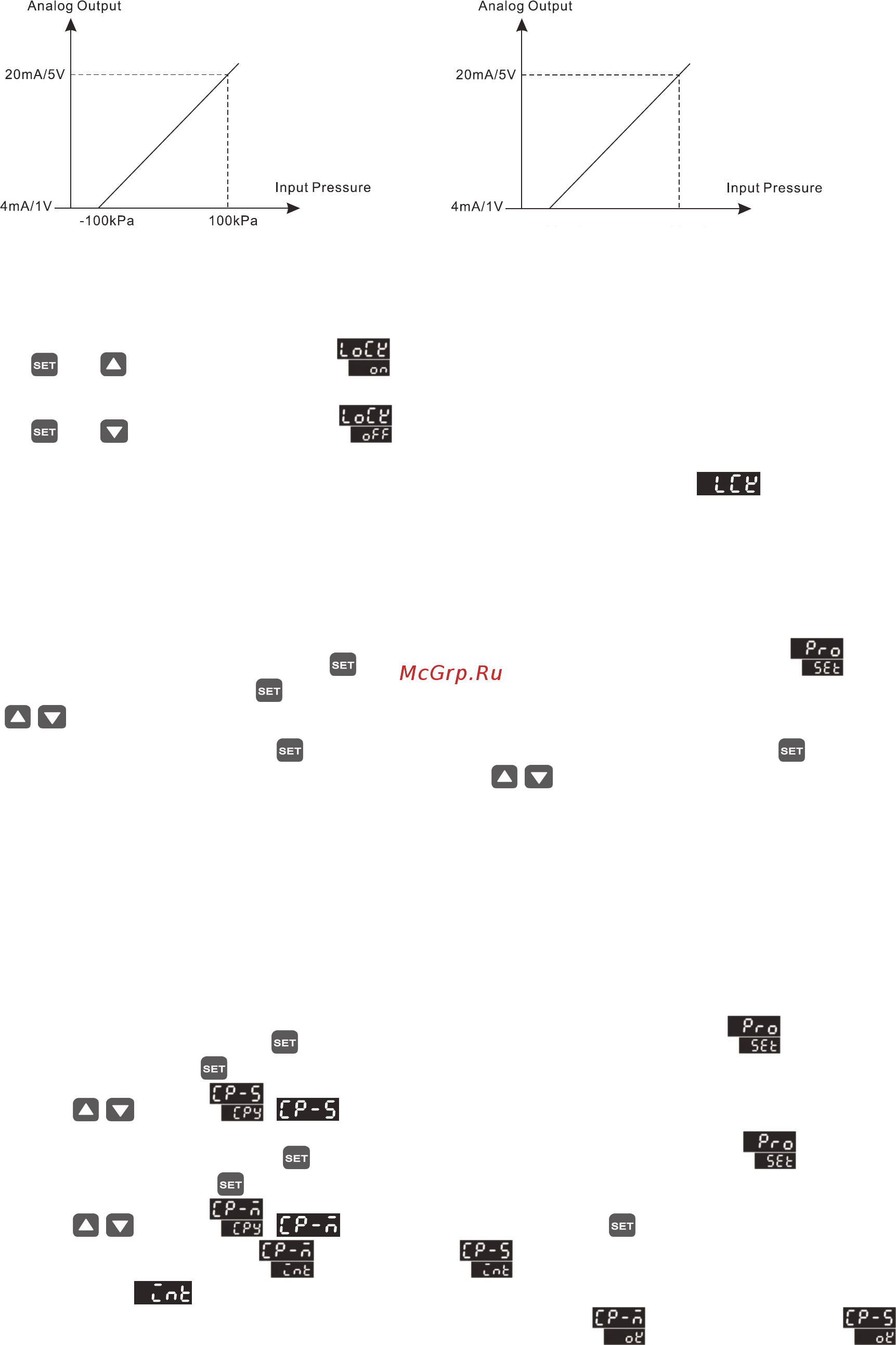

[Figure 4: Full range analog Output] [Figure 5: Change analog slop Output]
Key Locking Function
Lock On: Press and together for 2 seconds until is displayed. You will then see the display of pressure value (PV) and
set value (SV).
Lock Off: Press
and together for 2 seconds until is displayed. You will then see the display of pressure value (PV) and
set value (SV).
Lock Display: Press any key in the key locking mode, and you will see the display of pressure value (PV) and
(SV). Release the
key, and the PV and SV will return to original values.
Switching Colors
In DPA, different output statuses can have different display colors. The output statuses for DPA are “OUT1”, “OUT2”, ”OUT1 and OUT2”,
“OUT1 or OUT2”. See below explanations for how to set:
1. Setting up output status: In the “Measuring Mode”, press
for more than 4 seconds and release the key after you see . You
are now in the “Advanced Setup Mode”. Press
for 5 times and find the switching color referencing items (see Advanced Setup Mode
chart). Use
to select the referencing item you'd like.
2. Switching colors: In the “Measuring Mode”, press
for more than 2 seconds to enter the “Quick Setup Mode”. Press for 4 times
and find the parameter for setting up colors (see Quick Setup Mode chart). Use
to select the color you’d like.
Note: “OUT1 and OUT2” will be ON only when both OUT1 and OUT2 are ON; otherwise, it will be OFF. “OUT1 or OUT2” will be OFF only
when both OUT1 and OUT2 are OFF; otherwise, it will be ON.
Copy Function
DPA is able to copy the parameters in the master device to another slave device.
1. Hardware: Connect Pin 2 on master to Pin 3 on slave; Pin 3 on master to Pin 2 on slave; Pin 5 on master and slave to GND on power
supply; Pin 1 on master and slave to +24V on power supply.
2. Software:
a) Slave device: In the “Measuring Mode”, press
for more than 4 seconds and release the key after you see . You are now in
the “Advanced Setup Mode”. Press
for 7 times and find the parameter for setting up the copy function (see Advanced Setup
Mode chart). Use
to select ( refers to Copy-Slave).
b) Master device: In the “Measuring Mode”, press
for more than 2 seconds and release the key after you see . You are now
in the “Advanced Setup Mode”. Press
for 7 times and find the parameter for setting up the copy function (see Advanced Setup
Mode chart). Use
to select ( refers to Copy-Master). Next, press for more than 2 seconds and return
to the “Measuring Mode”. Now, you will see
on the screen and on the slave device, indicating that the two devices
have been connected. On
, you will see numbering counting up, referring to the number of parameters transmitted
successfully between the two devices. Once the copy of parameter succeeds, you will see
on the master device and
S-L
S-H
