Aurora A-1790D [64/151] Continuous sewing pattern copy

Continuous Sewing Computerized Control System for Square Buttonhole Machine

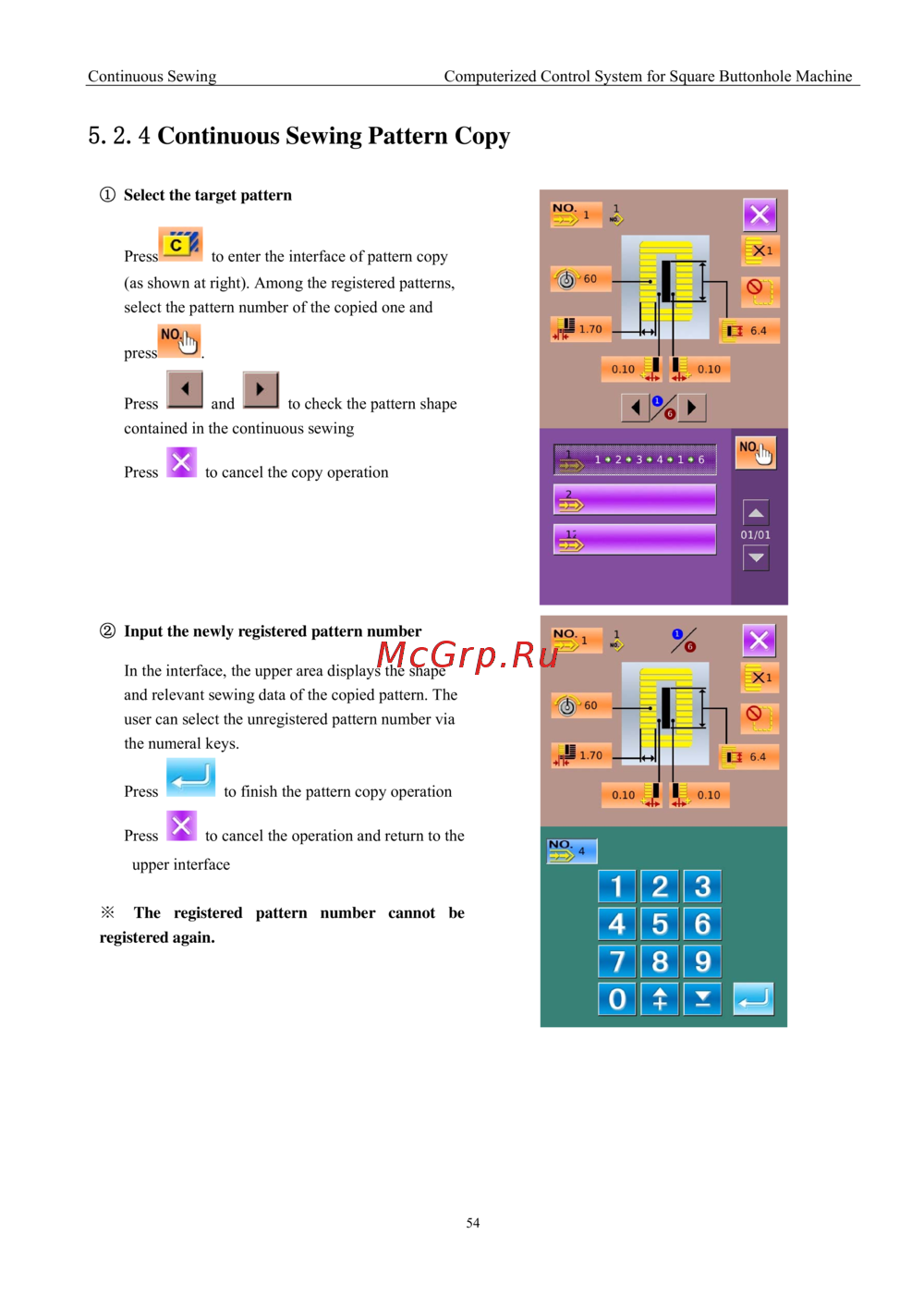

5.2.4 Continuous Sewing Pattern Copy

① Select the target pattern

Press

to enter the interface of pattern copy

(as shown at right). Among the registered patterns,

select the pattern number of the copied one and

press .

Press

and to check the pattern shape

contained in the continuous sewing

Press

to cancel the copy operation

② Input the newly registered pattern number

In the interface, the upper area displays the shape

and relevant sewing data of the copied pattern. The

user can select the unregistered pattern number via

the numeral keys.

Press

to finish the pattern copy operation

Press

to cancel the operation and return to the

upper interface

※ The registered pattern number cannot be

registered again.
