Содержание
- Ts2200 series tripod turnstile user manual 1
- Arm installation and equipment testing 2
- Arm installation method 2
- Technical specifications 2
- Equipment installation 3
- Installation conditions 3
- Power on test before the installation of device 3
- Cabling 4
- Installation 4
- Cable diagram 5
- Connection diagram of the standalone access control device 5
- Function description of the turnstile control board 5
- 3 4 5 6 7 8 6
- Dip ki switch configuration 6
- Equipment precautions and maintenance 7
- Maintenance 7
- Precaution 7
- Troubleshooting 8
- Attachment 1 default factory settings 9
- Attachment 3 connection diagram of mainboard and secondary board 11
- J4 left direction indicator 11
- Mainboard 11
- Secondary board 11
- The connection of mainboard and secondary board 11
- This is a class a product in a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures 11
Похожие устройства
- Zkteco TS2200 Брошюра
- Zkteco TS5000A Руководство по установке
- Zkteco TS5000A Инструкция по эксплуатации(ENG)
- Zkteco TS5000A Брошюра
- Zkteco FBL1000 Руководство по установке
- Zkteco FBL1000 Инструкция по эксплуатации(ENG)
- Zkteco FBL1000 Брошюра
- Silter Super mini 2000M-1 Инструкция по эксплуатации
- Silter Super mini 2000M-1 Инструкция по эксплуатации
- Silter Super mini 2000 Инструкция по эксплуатации
- Silter Super mini 2000 Инструкция по эксплуатации
- Silter Super mini 2002 Инструкция по эксплуатации
- Silter Super mini 2002 Инструкция по эксплуатации
- Silter Super mini 2035 Инструкция по эксплуатации
- Silter Super mini 2035 Инструкция по эксплуатации
- Silter Super mini 2005Е Инструкция по эксплуатации
- Silter Super mini 2005Е Инструкция по эксплуатации
- Silter Super mini 2075 Инструкция по эксплуатации
- Silter Super mini 2075 Инструкция по эксплуатации
- Silter Super MX 1/0 Инструкция по эксплуатации

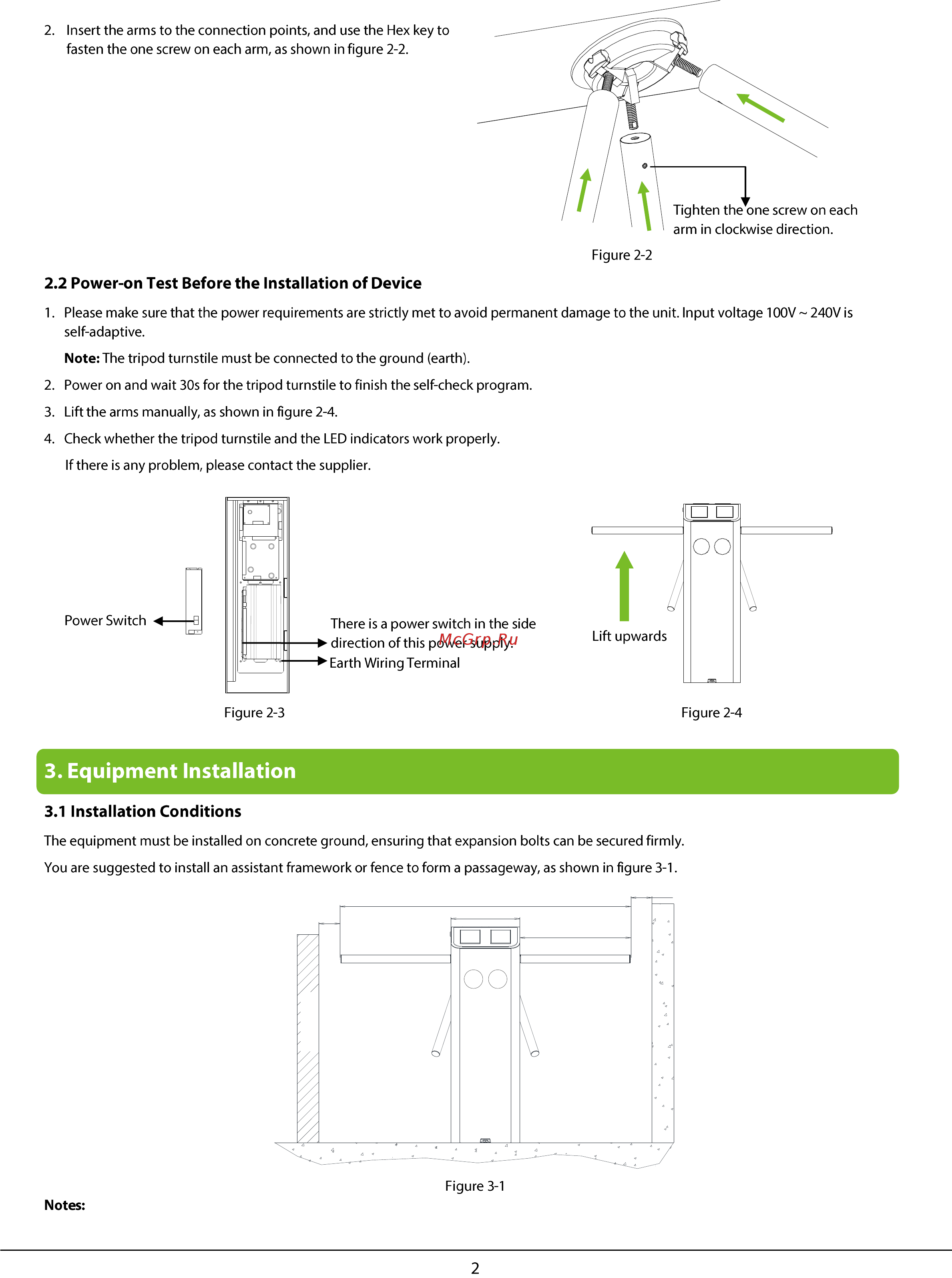

2 Insert the arms to the connection points and use the Hex key to fasten the one screw on each arm as shown in figure 2 2 2 2 Power on Test Before the Installation of Device 1 Please make sure that the power requirements are strictly met to avoid permanent damage to the unit Input voltage 100V 240V is self adaptive Note The tripod turnstile must be connected to the ground earth 2 Power on and wait 30s for the tripod turnstile to finish the self check program 3 Lift the arms manually as shown in figure 2 4 4 Check whether the tripod turnstile and the LED indicators work properly If there is any problem please contact the supplier Power Switch 0 There is a power switch in the side direction of this power supply ri Earth Wiring Terminal Figure 2 3 3 Equipment Installation 3 1 Installation Conditions The equipment must be installed on concrete ground ensuring that expansion bolts can be secured firmly You are suggested to install an assistant framework or fence to form a passageway as shown in figureS 1 Figure 3 1 Notes 1 The space at the end of the arm shall not be greater than 80mm see figure 3 1 2
