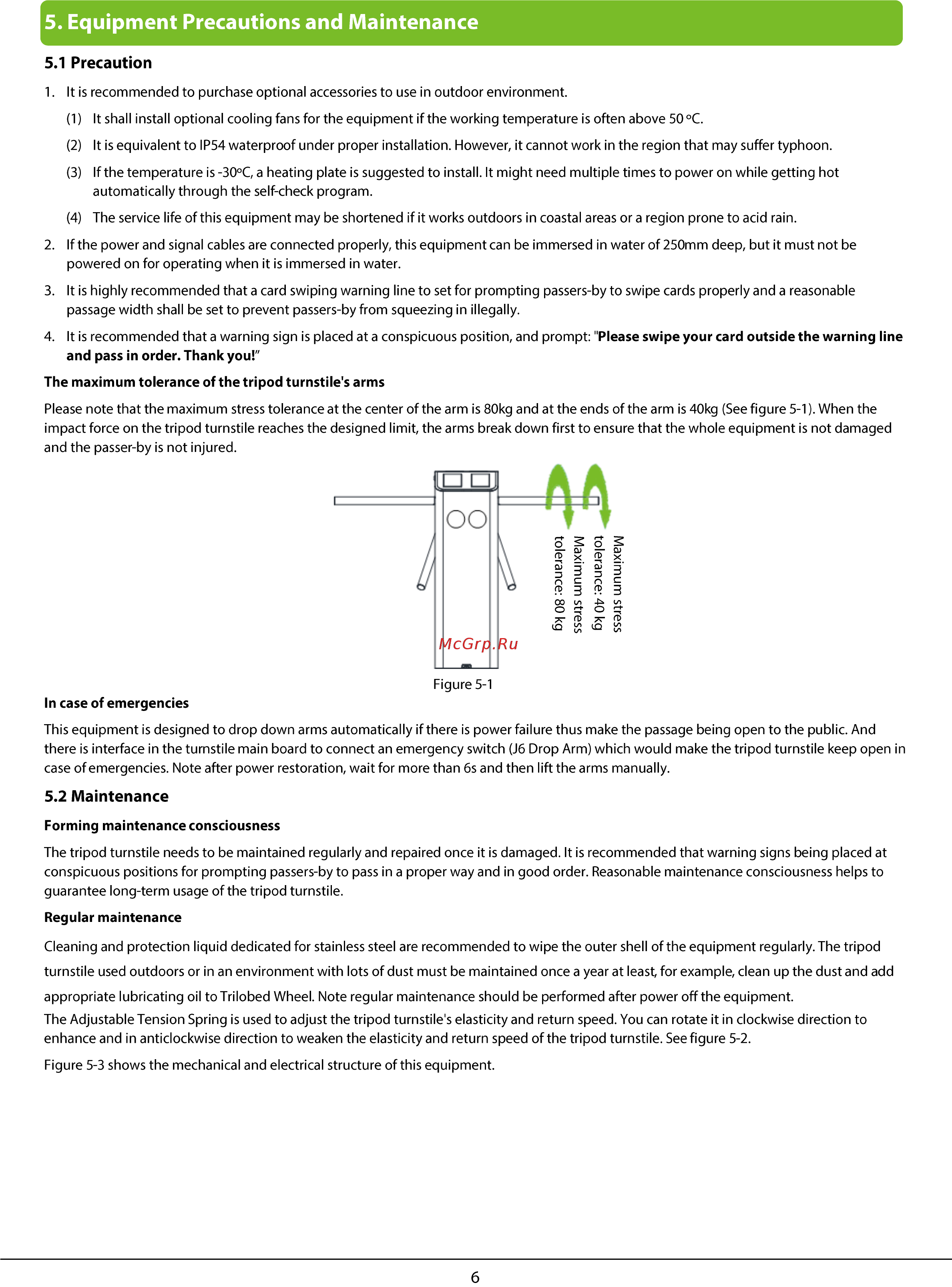

5 Equipment Precautions and Maintenance 5 1 Precaution 1 It is recommended to purchase optional accessories to use in outdoor environment 1 It shall install optional cooling fans for the equipment if the working temperature is often above 50 C 2 It is equivalent to IP54 waterproof under proper installation However it cannot work in the region that may suffer typhoon 3 If the temperature is 30 C a heating plate is suggested to install It might need multiple times to power on while getting hot automatically through the self check program 4 The service life of this equipment may be shortened if it works outdoors in coastal areas or a region prone to acid rain 2 If the power and signal cables are connected properly this equipment can be immersed in water of 25Cmm deep but it must not be powered on for operating when it is immersed in water 3 It is highly recommended that a card swiping warning line to set for prompting passers by to swipe cards properly and a reasonable passage width shall be set to prevent passers by from squeezing in illegally 4 It is recommended that a warning sign is placed at a conspicuous position and prompt Please swipe your card outside the warning line and pass in order Thank you The maximum tolerance of the tripod turnstile s arms Please note that the maximum stress tolerance at the center of the arm is 80kg and at the ends of the arm is 40kg Seefigure 5 1 When the impact force on the tripod turnstile reaches the designed limit the arms break down first to ensure that the whole equipment is not damaged and the passer by is not injured Figure 5 1 In case of emergencies This equipment is designed to drop down arms automatically if there is power failure thus make the passage being open to the public And there is interface in the turnstile main board to connect an emergency switch J6 Drop Arm which would make the tripod turnstile keep open in case of emergencies Note after power restoration wait for more than 6s and then lift the arms manually 5 2 Maintenance Forming maintenance consciousness The tripod turnstile needs to be maintained regularly and repaired once it is damaged It is recommended that warning signs being placed at conspicuous positions for prompting passers by to pass in a proper way and in good order Reasonable maintenance consciousness helps to guarantee long term usage of the tripod turnstile Regular maintenance Cleaning and protection liquid dedicated for stainless steel are recommended to wipe the outer shell of the equipment regularly The tripod turnstile used outdoors or in an environment with lots of dust must be maintained once a year at least for example clean up the dust and add appropriate lubricating oil toTrilobed Wheel Note regular maintenance should be performed after power off the equipment The Adjustable Tension Spring is used to adjust the tripod turnstile s elasticity and return speed You can rotate it in clockwise direction to enhance and in anticlockwise direction to weaken the elasticity and return speed of the tripod turnstile Seefigure 5 2 Figure 5 3 shows the mechanical and electrical structure of this equipment
