Chapter 2 Electric and Civil Installation

2.1 Device Installation Conditions and Installation Position

Ensure that expansion screws can be fastened securely in a concrete structure. If the ground foundation does

not meet this condition, consult professional building or decoration personnel. Create stable conditions for reliably

fastening the flap barrier, for example, drive piles or lay out steel plates.

Determine to build one or multiple passages.

When a flap barrier is installed against the wall, it need reserve 100 mm space. The space is used to open the

upper cover of the flap barrier for maintenance and commissioning. The master machine and slave machine of the

FBL 1000 flap barrier can form a passage. They can be installed to form dual passages with one FBL 1200 flap

barrier also, as shown in Figure 2-1. The unit of data in the figures is mm.

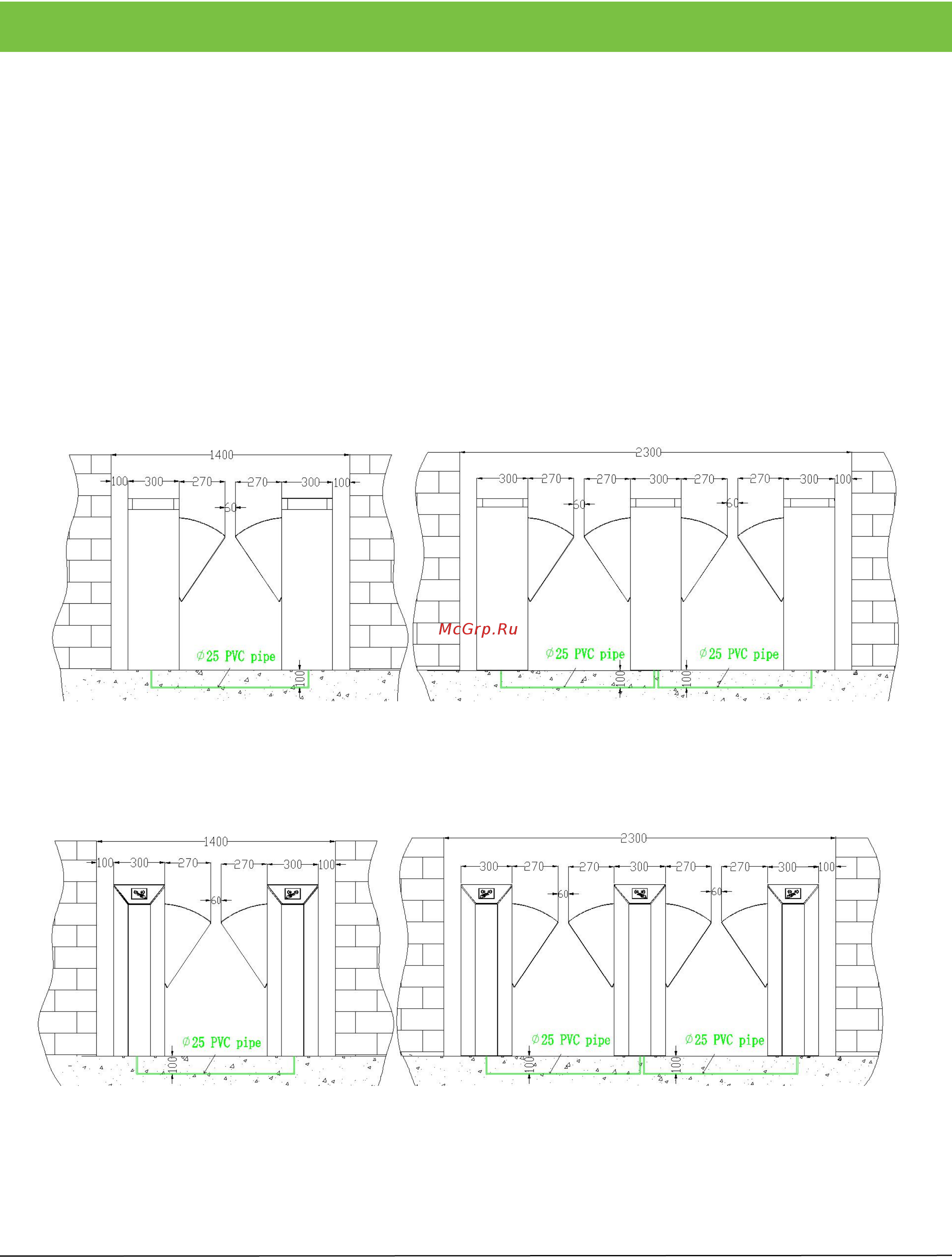

Figure 2-1

The master machine and slave machine of the FBL 2000 flap barrier can form a passage. They can be installed

to form dual passages with one FBL 2200 flap barrier also, as shown in Figure 2-2.

Figure 2-2
