2.2 Cable Installation

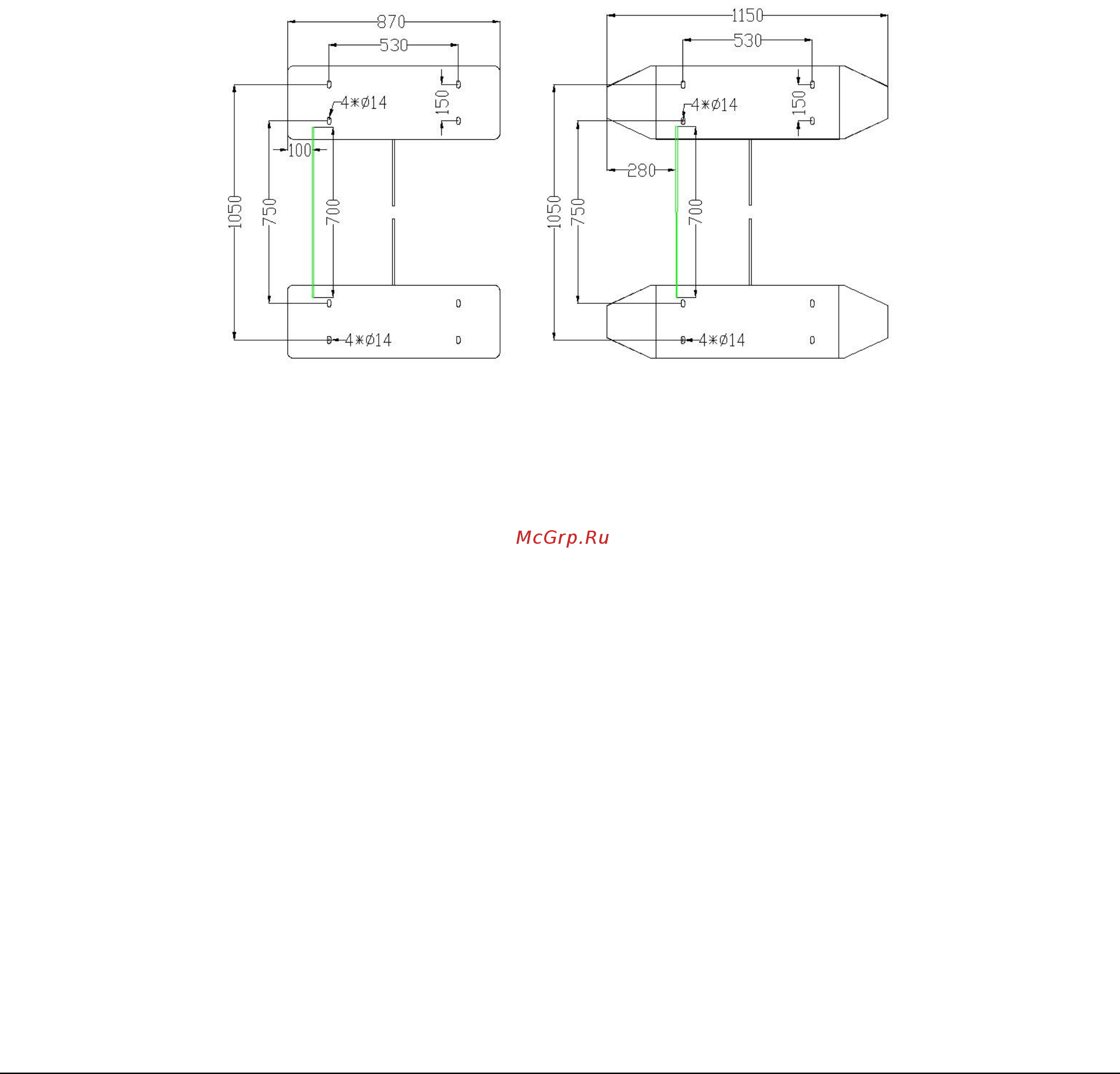

For the outlet of concealed cables, see the installation hole positions of the flap barrier in Figure 2-3.The device

uses 6 x 1.5 mm² cables with the voltage input range of AC 100-240 V as the power supply cable (including ground

cables).

Only professional electricians are allowed to wire the flap barrier and a ground cable must be connected for the

flap barrier. A dedicated ground cable binding post is provided on the inner bottom side of the chassis. Ensure that

the ground cable at the far end is grounded reliably. Note that the PVC conduits should be buried under the ground

for more than 60mm, and the part exposed above the ground should exceed 50mm. In addition, the conduit outlet

must be bent to prevent water from entering the conduit.

Figure 2-3

FBL1000 FBL2000
