Voltage Ranges

The software calculates the correct measuring range depending on the nominal

voltage (20 % overflow with C

= 1.4).

Table 6 shows the measuring ranges of the Logger and Figure 9 shows the

selection for input ranges during job processing.

Table 6. Measuring Ranges

Connection Nominal Voltages (Wye/Delta) Max. Input Voltage

Wye/Delta 69 V / 120 V 115 V / 200 V 230 V / 400 V 480 V / 830 V

Phase/Neutral

3-phase 4 wire

69 V ~, +20 % 115 V ~, +20 % 230 V ~, +20 % 480 V ~, +20 %

Phase/Phase

3-phase 3 wire

120 V ~, +20 % 200 V ~, +20 % 400 V ~, +20 % 830 V ~, +20 %


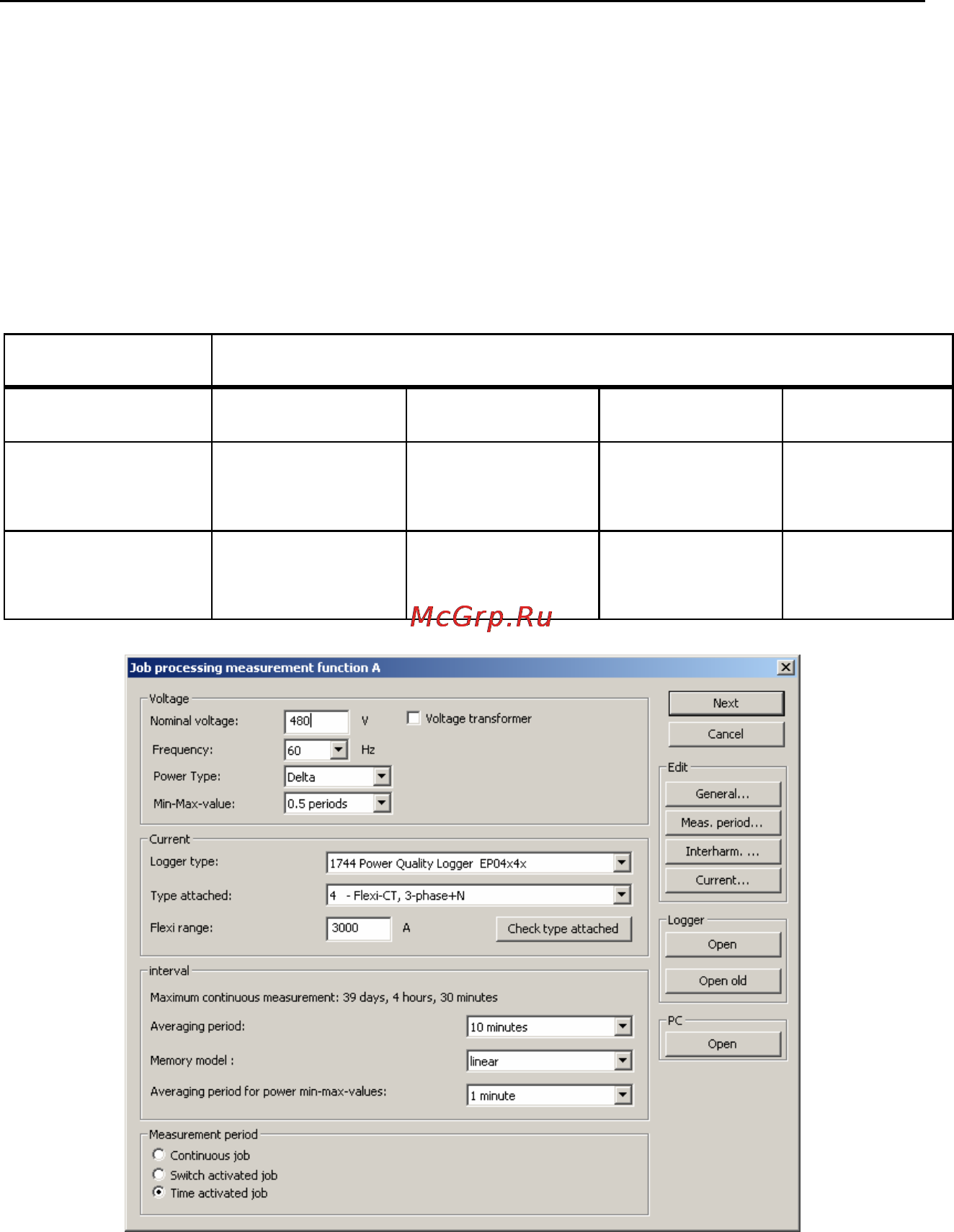

Figure 9. Basic Logger Setup Parameters
