Voltage Interruptions

The Logger records two types of interruptions:

• All measured RMS values of input voltages that are < 1 % of the

nominal voltage. This threshold can be adjusted in PQ Log.

• Interruptions > 1 half-cycle

The start time and duration of each interruption are registered. See Figure 12.

Time

90% Vn

Duration

100% Vn

110% Vn

egb018.eps

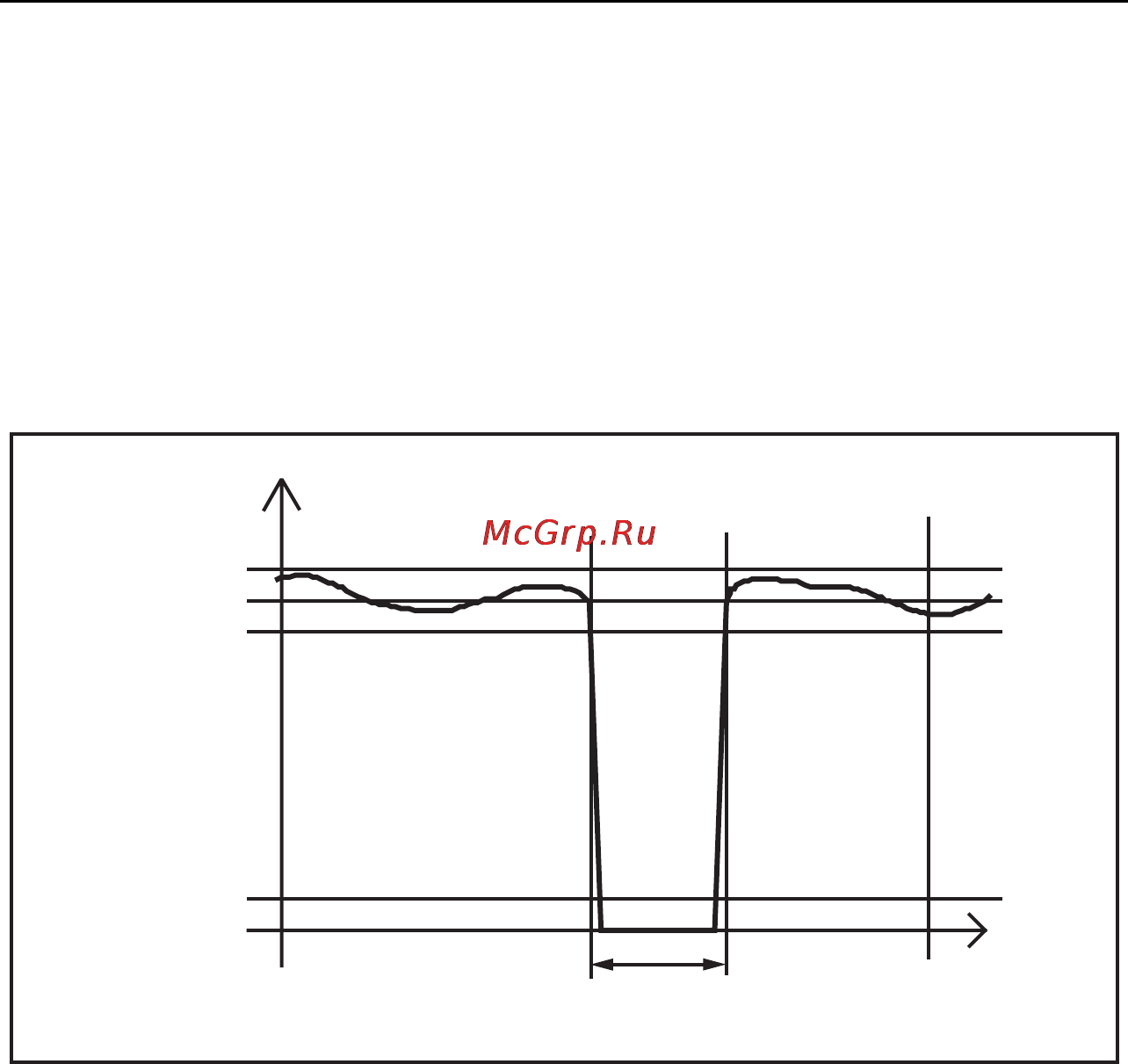

Figure 12. Voltage Interruption
