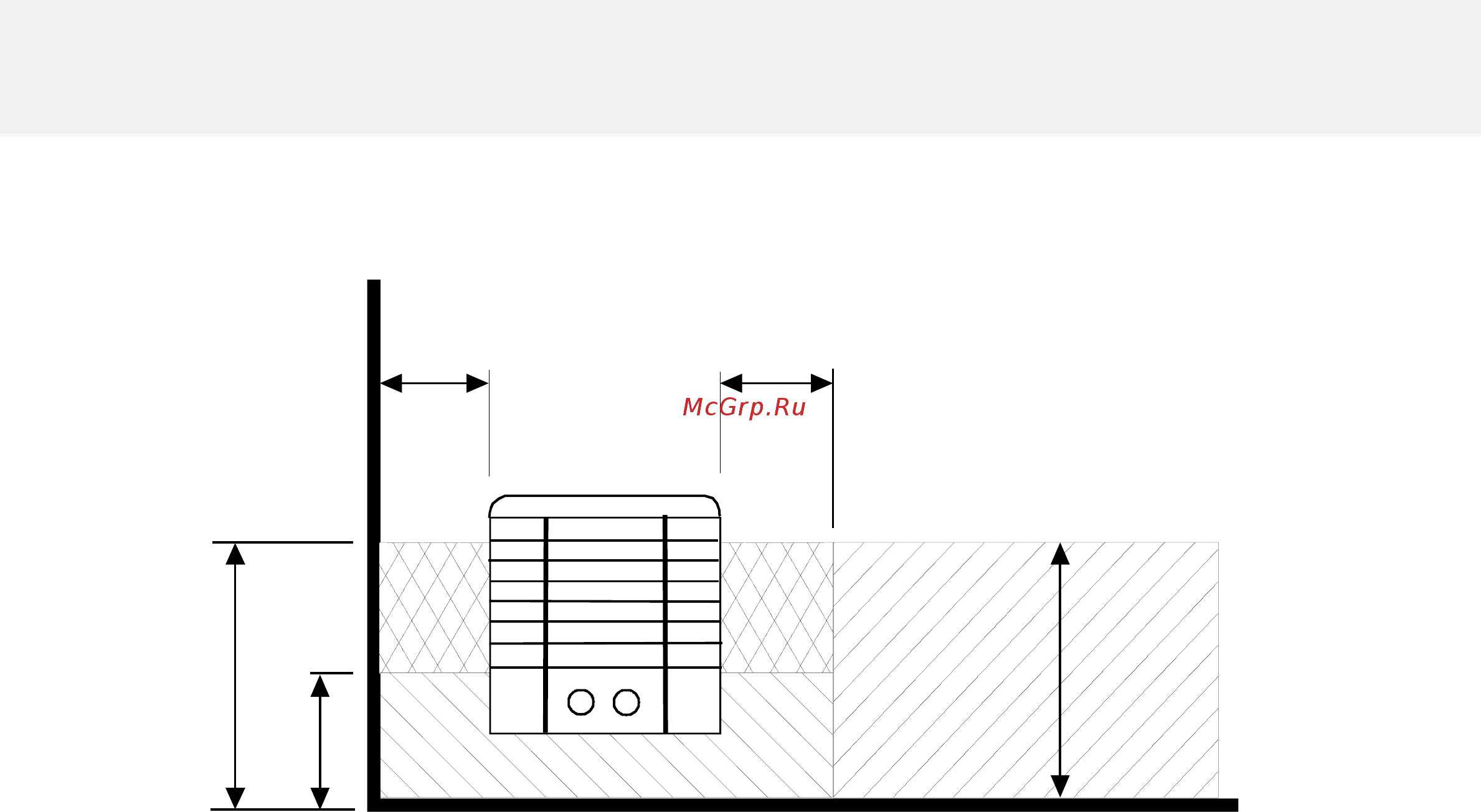

Image 3 Location for the connection box
3.5 Location the connection box for connection cable in
the sauna room
A = Specified minimum safety clearance
1. Recommended location for the connection box
2. Silumin box recommended in this area.
3. This area should be avoided. Always use a silumin box.
In other areas, use a heat-resisting box (T 125 °C) and heat-resisting cables (T 170 °C). The connection box must be clear
of obstacles. When installing the connection box to zones 2 or 3, refer to the instructions and regulations of the local energy
supplier.
200 mm
500 mm
A A
3.
2.
1.
500 mm
Product Manual Ring Wall ST
11
