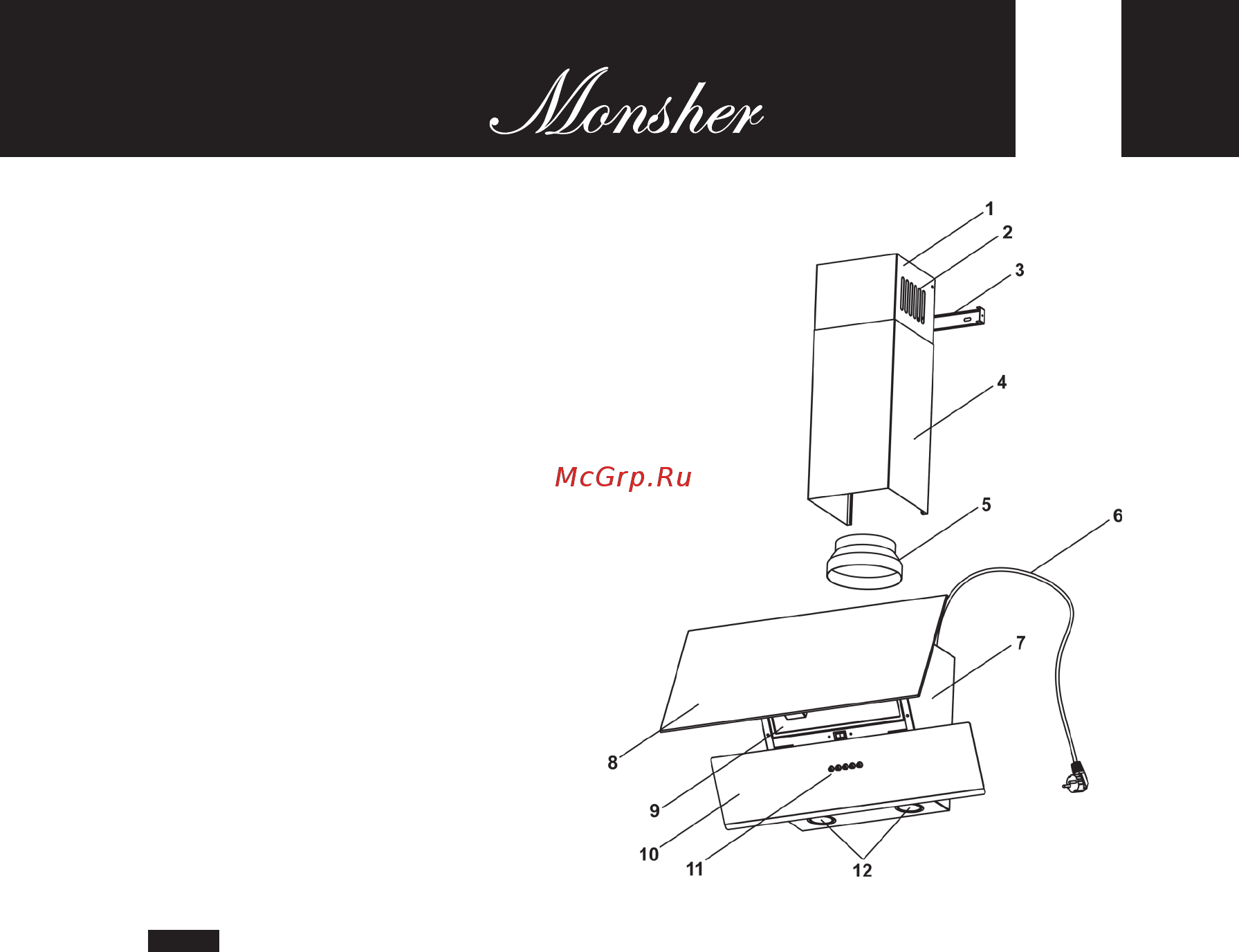

Fig. 3

5.3 The cooker hood consists of the

following components (Fig. 3):

1 – upper part of the decorative exhaust box;

2 – ventilation slots (recirculated air mode);

3 – chimney bracket;

4 – lower part of the decorative exhaust box;

5 – duct adapter (Ø150 х Ø120);

6 – power cord with earthing (Protection class - І);

7 – hood housing;

8 – decorative panel 1 (glass);

9 – aluminium grease filter;

10 – decorative panel 2;

11 – mode select switch;

(mechanical);

12 – light bulbs (LED).

6. INSTALLATION INSTRUCTIONS

6.1 Select an operation mode and a place to install the cooker hood.

6.2 Remove the cooker hood from a shipping box.

6.3 Check hood operation, connect the appliance to the mains power supply and

check all its functions.

6.4 Mark fixing points on the kitchen wall. For this purpose, make a paper template

with the coordinates of 4 holes on the back panel of the housing (points A, B, C, D;

see installation diagram); attach the template to the wall at the required height

specified earlier and level it (fig.4).

6.5 Mark and drill 4 holes at points A, B, C, D with a drill bit Ø 7 mm (depth 40 mm).

6.6 Insert the dowels into the drilled holes and screw in countersunk screws

4.5x40 at points A, B, so that the distance between the wall and the head of the

screw is 5 mm.

6.7 Hang the hood housing on the screws at support points A, B.
