Monsher Kvazi 60 W [8/32] If necessary install an air duct adapter ø150 x 120mm on the hood fitting

English

6.8 If necessary, install an air duct adapter (Ø150 x 120mm) on the hood fitting

and mount the air duct.

6.9 Insert 2 countersunk screws 4.5x40 from the inside of the hood at points C,

D and tighten them.

6.10 Install the telescopic chimney casing on the hood housing. Lift the top panel of

the casing with the bar to the ceiling so that it covers the ventilation duct, and mark

2 holes for fastening (points E, F) in accordance with the slots of the bar (see fig. 4).

6.11 Drill 2 holes Ø 7 mm, insert dowels and fasten the bar with countersunk screws

4.5x40 to the wall.

6.12 If the hood will operate in the mode with air exhaust into a kitchen chimney,

install the duct of selected diameter according to the instructions, providing sufficient

tightness.

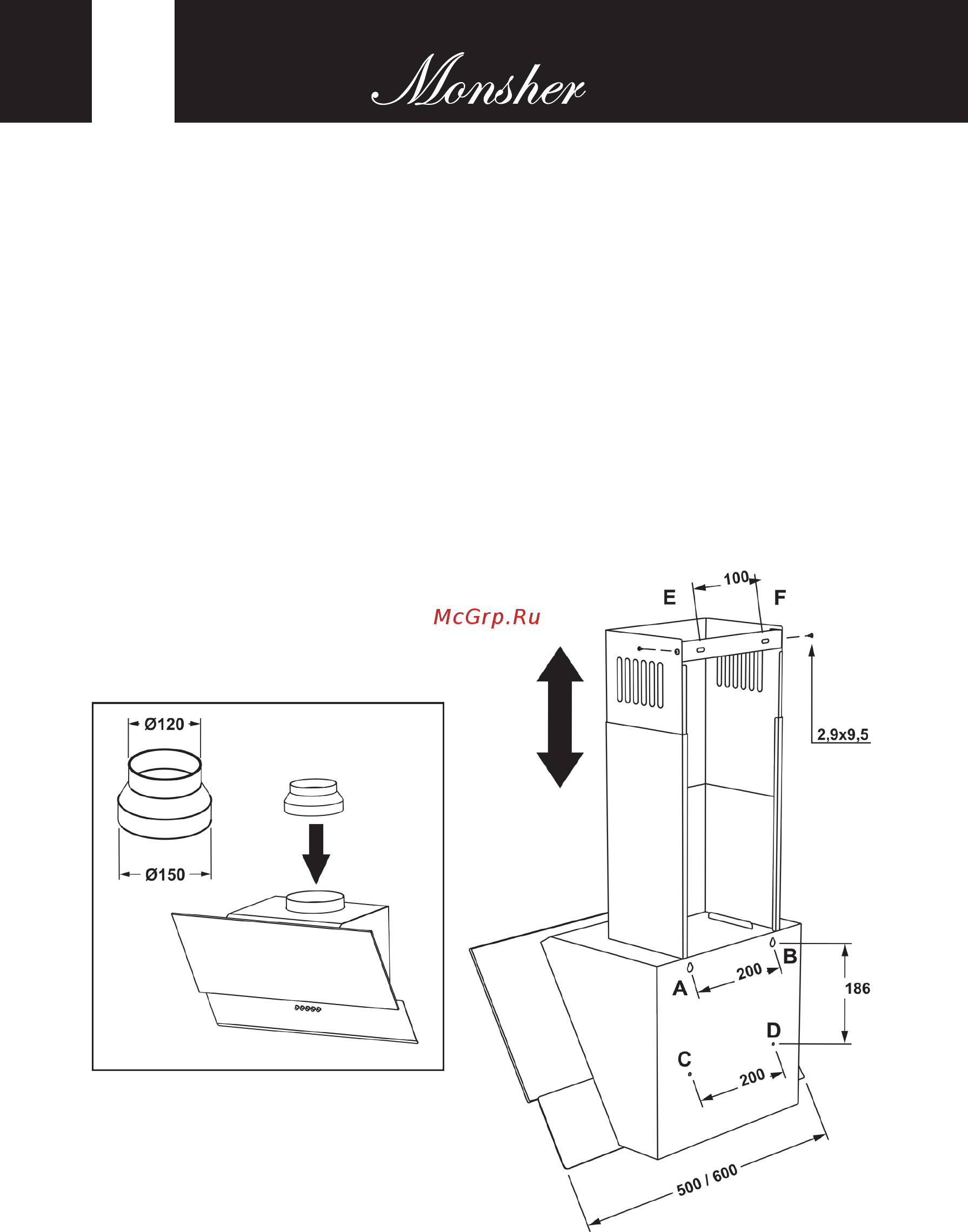

Fig. 4
