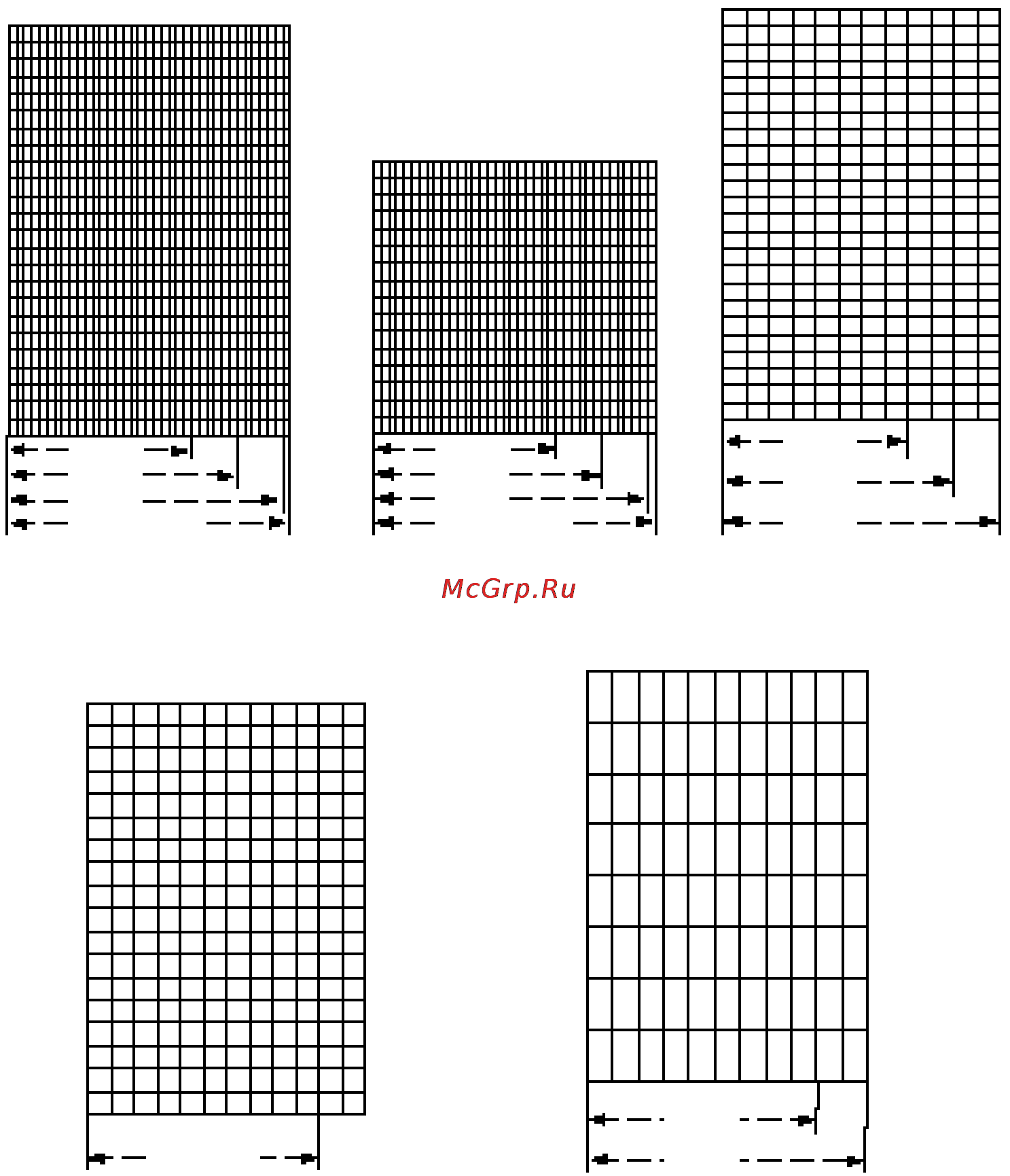

Epson Stylus Pro XL+ [251/573] The diagrams below show the planning grids for lq nlq and draft mode characters

Содержание

• December 1997 1
• Epson esc p 1
• Reference manual 1
• Command summary c 1 2
• Contents 2
• Introduction 2
• Recommended operations r 1 2
• Appendix a 1 3
• Command table t 1 3
• Feature summary f 1 3
• Glossary g 1 3
• Index i 1 3
• Introduction 4
• About this manual 5
• Conventions used in this manual 5
• Command names and parameters 6
• Information organization 6
• Nonrecommended and deleted commands 6
• For example to break the value 520 into two bytes use the following two equations 7
• Int and mod 7
• Int simply deletes the fraction part of the number and the value of nh is calculated as shown below 7
• Mod on the other hand results in the remainder of the division operation of the fraction part as shown below 7
• Some command parameters may exceed 256 and require two bytes of data these variables are listed with the subscripts l for low and h for high for example 7
• To determine the value of these two bytes this manual uses the int and mod conventions int indicates the integer or whole number part of a number while mod indicates the remainder of a division operation 7
• Command summary 8
• Command list by function 9
• The following section lists commands by their function the shaded areas are discontinued or nonrecommended commands for alternative command recommendations see the command description 9
• Command list by ascii order 13
• The following section lists commands by their ascii order the shaded areas are discontinued or nonrecommended commands for alternative command recommendations see the specific command description for discontinued commands see deleted commands on page c 5 13
• At the head of each command is the command title and one or more icons the meaning of these icons is as follows 16
• If an esc p 2 command is also available in previous esc p levels any differences in function are explained under the model dependent variations heading 16
• Individual command explanations 16
• The command explanation applies to 24 48 pin printers featuring esc p 2 function explanations are based on esc p 2 16
• The command explanation applies to 24 48 pin printers featuring previous esc p levels 16
• The command explanation applies to 9 pin printers 16
• The explanations in these commands apply to the printers listed below 16
• The following section describes the commands available in all esc p versions 16
• All non esc p 2 printers 17
• Ascii esc c 17
• Changing the defined unit does not affect the current page length setting 17
• Decimal 27 40 67 17
• Default 17
• Depends on default setting mode or dip switch setting 17
• Esc c set page length in defined unit 17
• Esc u esc c esc c ff lf esc n set the print area setting page length 17
• Format 17
• Function 17
• Hex 1b 28 43 17
• Model dependent variations 17
• Parameter range 17
• Printers not featuring this command 17
• Related topics 17
• Set the page length before paper is loaded or when the print position is at the top of form position otherwise the current print position becomes the top of form position this results in undesirable contradictions between the actual and logical page settings 17
• Sets the page length in the specified number of units previously defined with the esc u command according to the following formula 17
• Setting the page length cancels the top and bottom margin settings 17
• This command is available only on printers featuring esc p 2 17
• Ascii esc c 18
• Continuous paper none 18
• Decimal 27 40 99 18
• Default 18
• Esc c set page format 18
• Format 18
• Function 18
• Hex 1b 28 63 18
• Parameter range 18
• Sets the top and bottom margins in the defined units set with the esc u command according to the following formulas 18
• Single sheet paper top margin top of form position bottom margin last printable line 18
• Model dependent variations 19
• Printers not featuring this command 19
• Related topics 19
• Default 20
• Esc c set page length in lines 20
• Format 20
• Function 20
• Model dependent variations 20
• Parameter range 20
• Printers not featuring this command 20
• Related topics 20
• Default 21
• Esc c set page length in lines 21
• Format 21
• Function 21
• Model dependent variations 21
• Parameter range 21
• Printers not featuring this command 21
• Related topics 21
• Default 22
• Esc c nul set page length in inches 22
• Format 22
• Function 22
• Model dependent variations 22
• Parameter range 22
• Printers not featuring this command 22
• Related topics 22
• Default 23
• Esc c nul set page length in inches 23
• Format 23
• Function 23
• Model dependent variations 23
• Parameter range 23
• Printers not featuring this command 23
• Related topics 23
• Default 24
• Esc n set bottom margin 24
• Format 24
• Function 24
• Model dependent variations 24
• Parameter range 24
• Printers not featuring this command 24
• Related topics 24
• Default 25
• Esc n set bottom margin 25
• Format 25
• Function 25
• Model dependent variations 25
• Parameter range 25
• Printers not featuring this command 25
• Related topics 25
• Esc o cancel bottom margin 26
• Format 26
• Function 26
• Model dependent variations 26
• Printers not featuring this command 26
• Related topics 26
• Esc o cancel bottom margin 27
• Format 27
• Function 27
• Model dependent variations 27
• Printers not featuring this command 27
• Related topics 27
• Default 28
• Esc q set right margin 28
• Format 28
• Function 28
• Model dependent variations 28
• Parameter range 28
• Printers not featuring this command 28
• Related topics 28
• Default 29
• Esc q set right margin 29
• Format 29
• Function 29
• Model dependent variations 29
• Parameter range 29
• Printers not featuring this command 29
• Related topics 29
• Defaultf 30
• Esc l set left margin 30
• Format 30
• Function 30
• Model dependent variations 30
• Parameter range 30
• Printers not featuring this command 30
• Related topics 30
• Default 31
• Esc l set left margin 31
• Format 31
• Function 31
• Model dependent variations 31
• Parameter range 31
• Printers not featuring this command 31
• Related topics 31
• Cr carriage return 32
• Format 32
• Function 32
• Model dependent variations 32
• Printers not featuring this command 32
• Related topics 32
• Cr carriage return 33
• Format 33
• Function 33
• Model dependent variations 33
• Printers not featuring this command 33
• Related topics 33
• Format 34
• Function 34
• Lf line feed 34
• Model dependent variations 34
• Printers not featuring this command 34
• Related topics 34
• Format 35
• Function 35
• Lf line feed 35
• Model dependent variations 35
• Printers not featuring this command 35
• Related topics 35
• Ff form feed 36
• Format 36
• Function 36
• Model dependent variations 36
• Printers not featuring this command 36
• Related topics 36
• Ff form feed 37
• Format 37
• Function 37
• Model dependent variations 37
• Printers not featuring this command 37
• Related topics 37
• Ascii esc 38
• Decimal 27 36 38
• Esc esc l esc q ht cr lf ff esc u moving the horizontal position 38
• Esc set absolute horizontal print position 38
• Format 38
• Function 38
• Hex 1b 24 38
• Model dependent variations 38
• Moves the horizontal print position to the position specified by the following formula 38
• On non esc p 2 printers 38
• Parameter range 38
• Printers not featuring this command 38
• Related topics 38
• Set the defined unit with the esc u command 38
• The default defined unit setting for this command is 1 60 inch 38
• The new position is measured from the current left margin position 38
• The printer ignores this command if the specified position is to the right of the right margin 38
• The unit of movement is fixed at 1 60 inch 38
• Actionprinter apex 80 actionprinter t 1000 actionprinter 2000 actionprinter 2250 actionprinter 2500 lx 100 lx 300 lx 400 lx 800 lx 810 lx 850 lx 1050 39
• Ascii esc 39
• Decimal 27 36 39
• Esc esc l esc q ht cr lf ff moving the horizontal position 39
• Esc set absolute horizontal print position 39
• Format 39
• Function 39
• Hex 1b 24 39
• Model dependent variations 39
• Moves the horizontal print position to the position specified by the following formula 39
• Parameter range 39
• Printers not featuring this command 39
• Related topics 39
• The new position is measured from the current left margin position 39
• The printer ignores this command if the specified position is to the right of the right margin 39
• Ascii esc 40
• Decimal 27 92 40
• Esc set relative horizontal print position 40
• For negative left movement 40
• For positive right movement 40
• Format 40
• Function 40
• Hex 1b 5c 40
• Moves the horizontal print position left or right from the current position as specified by the following formula 40
• Parameter range 40
• Set the defined unit with the esc u command 40
• The default defined unit for this command is 1 120 inch in draft mode and 1 180 inch in lq mode 40
• The printer ignores this command if it would move the print position outside the printing area 40
• Model dependent variations 41
• Printers not featuring this command 41
• Related topics 41
• Ascii esc 42
• Decimal 27 92 42
• Esc set relative horizontal print position 42
• For negative left movement 42
• For positive right movement 42
• Format 42
• Function 42
• Hex 1b 5c 42
• Moves the horizontal print position left or right from the current position as specifiedby the following formula 42
• Parameter range 42
• The printer ignores this command if it would move the print position outside the printable area 42
• Model dependent variations 43
• Printers not featuring this command 43
• Related topics 43
• Ascii esc v 44
• Continuous paper moves the vertical print position to the top margin positionon the next page 44
• Decimal 27 40 86 44
• Esc v set absolute vertical print position 44
• Format 44
• Function 44
• Hex 1b 28 56 44
• Moves the vertical print position to the position specified by the following formula 44
• Moving the print position below the bottom margin position produces the following results 44
• Parameter range 44
• Set the defined unit using the esc u command 44
• Single sheet paper ejects the paper 44
• The command would move the print position in the negative direction after a graphics command is sent on the current line or above the point where graphics have previously been printed 44
• The command would move the print position more than 179 360 inch in the negative direction 44
• The default defined unit for this command is 1 360 inch 44
• The new position is measured in defined units from the current top margin position 44
• The printer ignores this command under the following conditions 44
• This command is available only on printers featuring esc p 2 44
• Ascii esc v 46
• Decimal 27 40 118 46
• Esc v set relative vertical print position 46
• For negative up movement 46
• For positive down movement 46
• Format 46
• Function 46
• Hex 1b 28 76 46
• Moves the vertical print position up or down from the current position as specified by the following formula 46
• Parameter range 46
• Set the defined unit using the esc u command 46
• The default defined unit for this command is 1 360 inch 46
• The new position is measured in defined units from the current position 46
• This command is available only on printers featuring esc p 2 46
• Model dependent variations 47
• Printers not featuring this command 47
• Related topics 47
• Esc j advance print position vertically 48
• Format 48
• Function 48
• Model dependent variations 48
• Parameter range 48
• Printers not featuring this command 48
• Related topics 48
• Esc j advance print position vertically 49
• Format 49
• Function 49
• Model dependent variations 49
• Parameter range 49
• Printers not featuring this command 49
• Related topics 49
• Format 50
• Function 50
• Ht tab horizontally 50
• Model dependent variations 50
• Printers not featuring this command 50
• Related topics 50
• Format 51
• Function 51
• Ht tab horizontally 51
• Model dependent variations 51
• Printers not featuring this command 51
• Related topics 51
• Format 52
• Function 52
• Model dependent variations 52
• Printers not featuring this command 52
• Related topics 52
• Vt tab vertically 52
• Format 53
• Function 53
• Model dependent variations 53
• Printers not featuring this command 53
• Related topics 53
• Vt tab vertically 53
• Esc f horizontal vertical skip 54
• Format 54
• Function 54
• Model dependent variations 54
• Parameter range 54
• Printers not featuring this command 54
• Related topics 54
• Bs backspace 55
• Format 55
• Function 55
• Model dependent variations 55
• Printers not featuring this command 55
• Related topics 55
• Bs backspace 56
• Format 56
• Function 56
• Model dependent variations 56
• Printers not featuring this command 56
• Related topics 56
• Default 57
• Esc u set unit 57
• Format 57
• Function 57
• Model dependent variations 57
• Parameter range 57
• Printers not featuring this command 57
• Related topics 57
• Default 58
• Esc 0 select 1 8 inch line spacing 58
• Format 58
• Function 58
• Model dependent variations 58
• Printers not featuring this command 58
• Related topics 58
• Default 59
• Esc 0 select 1 8 inch line spacing 59
• Format 59
• Function 59
• Model dependent variations 59
• Printers not featuring this command 59
• Related topics 59
• Default 60
• Esc 2 select 1 6 inch line spacing 60
• Format 60
• Function 60
• Model dependent variations 60
• Printers not featuring this command 60
• Related topics 60
• Default 61
• Esc 2 select 1 6 inch line spacing 61
• Format 61
• Function 61
• Model dependent variations 61
• Printers not featuring this command 61
• Related topics 61
• Default 62
• Esc 3 set n 180 inch line spacing 62
• Format 62
• Function 62
• Model dependent variations 62
• Parameter range 62
• Printers not featuring this command 62
• Related topics 62
• Default 63
• Esc 3 set n 216 inch line spacing 63
• Format 63
• Function 63
• Model dependent variations 63
• Parameter range 63
• Printers not featuring this command 63
• Related topics 63
• Default 64
• Esc set n 360 inch line spacing 64
• Format 64
• Function 64
• Model dependent variations 64
• Parameter range 64
• Printers not featuring this command 64
• Related topics 64
• Default 65
• Esc a set n 60 inch line spacing 65
• Format 65
• Function 65
• Model dependent variations 65
• Parameter range 65
• Printers not featuring this command 65
• Related topics 65
• Default 66
• Esc a set n 72 inch line spacing 66
• Format 66
• Function 66
• Model dependent variations 66
• Parameter range 66
• Printers not featuring this command 66
• Related topics 66
• Default 67
• Esc 1 select 7 72 inch line spacing 67
• Format 67
• Function 67
• Model dependent variations 67
• Printers not featuring this command 67
• Related topics 67
• Default 68
• Esc d set horizontal tabs 68
• Format 68
• Function 68
• Model dependent variations 68
• Parameter range 68
• Printers not featuring this command 68
• Related topics 68
• Default 69
• Esc d set horizontal tabs 69
• Format 69
• Function 69
• Model dependent variations 69
• Parameter range 69
• Printers not featuring this command 69
• Related topics 69
• Esc b set vertical tabs 70
• Format 70
• Function 70
• Model dependent variations 70
• Parameter range 70
• Printers not featuring this command 70
• Related topics 70
• Esc b set vertical tabs 71
• Format 71
• Function 71
• Model dependent variations 71
• Parameter range 71
• Printers not featuring this command 71
• Related topics 71
• Esc b set vertical tabs in vfu channels 72
• Format 72
• Function 72
• Model dependent variations 72
• Parameter range 72
• Printers not featuring this command 72
• Related topics 72
• Esc b set vertical tabs in vfu channels 73
• Format 73
• Function 73
• Model dependent variations 73
• Parameter range 73
• Printers not featuring this command 73
• Related topics 73
• Default 74
• Esc select vertical tab channel 74
• Format 74
• Function 74
• Model dependent variations 74
• Parameter range 74
• Printers not featuring this command 74
• Related topics 74
• Default 75
• Esc select vertical tab channel 75
• Format 75
• Function 75
• Model dependent variations 75
• Parameter range 75
• Printers not featuring this command 75
• Related topics 75
• Default 76
• Esc e set fixed tab increment 76
• Format 76
• Function 76
• Parameter range 76
• Model dependent variations 77
• Printers not featuring this command 77
• Related topics 77
• Default 78
• Esc a select justification 78
• Format 78
• Function 78
• Model dependent variations 78
• Parameter range 78
• Printers not featuring this command 78
• Related topics 78
• Default 79
• Esc a select justification 79
• Format 79
• Function 79
• Model dependent variations 79
• Parameter range 79
• Printers not featuring this command 79
• Related topics 79
• Ascii esc t 80
• Assigns the 80
• Character table according to the following values the 80
• Character table is one of the four tables selectable with the esc t command 80
• Decimal 27 40 116 80
• Esc t assign character table 80
• Format 80
• Function 80
• Hex 1b 28 74 80
• Parameter range 80
• Registered character table to the 80
• All non esc p 2 printers 81
• Esc t assign character tables selecting the character table 81
• Model dependent variations 81
• Not all models feature all character tables see the command table section for the character tables available on each printer model 81
• Printers not featuring this command 81
• Related topics 81
• Ascii esc t 82
• Assigns the 82
• Character table according to the following values the 82
• Character table is one of the four tables selectable with the esc t command 82
• Decimal 27 40 116 82
• Esc t assign character table 82
• Format 82
• Function 82
• Hex 1b 28 74 82
• Parameter range 82
• Registered character table to the 82
• Actionprinter t 750 actionprinter t 1000 actionprinter apex80 actionprinter 2000 actionprinter 2500 dfx 5000 dfx 8000 fx 850 fx 1050 lx 400 lx 800 lx 810 lx 850 lx 1050 83
• Esc t assign character tables selecting the character table 83
• Model dependent variations 83
• Not all models feature all character tables see the command table section for the character tables available on each printer model 83
• Printers not featuring this command 83
• Related topics 83
• Default 84
• Esc t select character table 84
• Format 84
• Function 84
• Parameter range 84
• Printers not featuring this command 84
• Model dependent variations 85
• Related topics 85
• Default 86
• Esc t select character table 86
• Format 86
• Function 86
• Model dependent variations 86
• Parameter range 86
• Printers not featuring this command 86
• Related topics 86
• Default 87
• Esc r select an international character set 87
• Format 87
• Function 87
• Parameter range 87
• Actionprinter l 1000 lq 400 lq 500 the legal set n 64 and korea set n 13 are not available 88
• Model dependent variations 88
• Printers not featuring this command 88
• Related topics 88
• Selecting an international character set 88
• The characters printed for each international character set are listed below 88
• Default 89
• Esc r select an international character set 89
• Format 89
• Function 89
• Parameter range 89
• Model dependent variations 90
• Printers not featuring this command 90
• Related topics 90
• Selecting an international character set 90
• The characters printed for each international character set are listed below 90
• Esc define user defined characters 91
• Format 91
• Function 91
• Parameter range 91
• Esc esc esc 6 esc 7 esc esc t esc t defining user defined characters sending user defined character data to printer 92
• Height width 92
• Model dependent variations 92
• Printers not featuring this command 92
• Related topics 92
• Send the esc 0 command followed by the esc t 2 command to copy current user defined characters to the upper half of the character table the lower half of the character table is then normal rom characters 92
• Send the esc 1 command to switch to user defined characters 92
• The following maximum character widths are recommended 92
• Use the esc command to print characters between 0 and 32 92
• Esc define user defined characters 93
• Format 93
• Function 93
• Parameter range 93
• Add up the values for all three settings the value for a is this total 94
• Always cancel italic characters with the esc 5 command before defining characters after defining user defined characters you can italicize them by sending the esc 4 command 94
• Attribute byte table 94
• Defining characters during draft or nlq mode results in the user defined characters having the draft or nlq attribute you cannot define characters of different attributes at the same time previously defined characters will be deleted 94
• Do not define continuous dots on the same row during draft mode the printer ignores the second of two continuous dots 94
• Only nlq characters can be defined on lx printers actionprinter apex 80 actionprinter 2000 actionprinter 2250 and actionprinter t 1000 94
• Send the esc 1 command to switch to user defined characters 94
• Send the esc i 1 command to allow you to print the characters between 128 and 159 and the non control code characters between 0 and 31 94
• The attribute byte a equals the width of the character between 1 and 12 dot columns 94
• The data within brackets in the format section above is repeated for each character you define 94
• The format of the attribute byte a is different for draft and nlq characters 94
• When you switch to nlq printing on fx printers the printer enhances user defined characters to appear as nlq mode characters 94
• You can define characters 11 dots wide by 8 dots high you must specify whether to define the upper or lower 8 dots of the 9 dots available you can also specify the columns not printed on the left and right of the characters during proportional spacing set both these parameters with the a parameter as described below 94
• Model dependent variations 95
• Printers not featuring this command 95
• Related topics 95
• Esc copy rom to ram 96
• Format 96
• Function 96
• Model dependent variations 96
• Parameter range 96
• Printers not featuring this command 96
• Related topics 96
• Esc copy rom to ram 97
• Format 97
• Function 97
• Model dependent variations 97
• Parameter range 97
• Printers not featuring this command 97
• Related topics 97
• Default 98
• Esc select user defined set 98
• Format 98
• Function 98
• Model dependent variations 98
• Parameter range 98
• Printers not featuring this command 98
• Related topics 98
• Default 99
• Esc select user defined set 99
• Format 99
• Function 99
• Model dependent variations 99
• Parameter range 99
• Printers not featuring this command 99
• Related topics 99
• Esc x select lq or draft 100
• Format 100
• Function 100
• Model dependent variations 100
• Parameter range 100
• Printers not featuring this command 100
• Related topics 100
• Esc x select nlq or draft 101
• Format 101
• Function 101
• Model dependent variations 101
• Parameter range 101
• Printers not featuring this command 101
• Related topics 101
• Default 102
• Esc k select typeface 102
• Format 102
• Function 102
• Model dependent variations 102
• Parameter range 102
• Printers not featuring this command 102
• Related topics 102
• Default 103
• Esc k select typeface 103
• Format 103
• Function 103
• Model dependent variations 103
• Parameter range 103
• Printers not featuring this command 103
• Related topics 103
• Default 104
• Esc x select font by pitch and point 104
• Format 104
• Function 104
• Parameter range 104
• Model dependent variations 105
• Printers not featuring this command 105
• Related topics 105
• Default 106
• Esc c set horizontal motion index hmi 106
• Format 106
• Function 106
• Model dependent variations 106
• Parameter range 106
• Printers not featuring this command 106
• Related topics 106
• Default 107
• Esc p select 10 point 10 cpi 107
• Format 107
• Function 107
• Model dependent variations 107
• Printers not featuring this command 107
• Related topics 107
• Default 108
• Esc p select 10 cpi 108
• Format 108
• Function 108
• Model dependent variations 108
• Printers not featuring this command 108
• Related topics 108
• Default 109
• Esc m select 10 point 12 cpi 109
• Format 109
• Function 109
• Model dependent variations 109
• Printers not featuring this command 109
• Related topics 109
• Default 110
• Esc m select 12 cpi 110
• Format 110
• Function 110
• Model dependent variations 110
• Printers not featuring this command 110
• Related topics 110
• Default 111
• Esc g select 10 point 15 cpi 111
• Format 111
• Function 111
• Model dependent variations 111
• Printers not featuring this command 111
• Related topics 111
• Default 112
• Esc g select 15 cpi 112
• Format 112
• Function 112
• Model dependent variations 112
• Printers featuring this command 112
• Related topics 112
• Default 113
• Esc p turn proportional mode on off 113
• Format 113
• Function 113
• Model dependent variations 113
• Parameter range 113
• Printers not featuring this command 113
• Related topics 113
• Default 114
• Esc p turn proportional mode on off 114
• Format 114
• Function 114
• Model dependent variations 114
• Parameter range 114
• Printers not featuring this command 114
• Related topics 114
• Default 115
• Esc sp set intercharacter space 115
• Format 115
• Function 115
• Model dependent variations 115
• Parameter range 115
• Printers not featuring this command 115
• Related topics 115
• Default 116
• Esc sp set intercharacter space 116
• Format 116
• Function 116
• Model dependent variations 116
• Parameter range 116
• Printers not featuring this command 116
• Related topics 116
• Default 117
• Esc e select bold font 117
• Format 117
• Function 117
• Model dependent variations 117
• Printers not featuring this command 117
• Related topics 117
• Default 118
• Esc e select bold font 118
• Format 118
• Function 118
• Model dependent variations 118
• Printers not featuring this command 118
• Related topics 118
• Default 119
• Esc f cancel bold font 119
• Format 119
• Function 119
• Model dependent variations 119
• Printers not featuring this command 119
• Related topics 119
• Default 120
• Esc f cancel bold font 120
• Format 120
• Function 120
• Model dependent variations 120
• Printers not featuring this command 120
• Related topics 120
• Default 121
• Esc 4 select italic font 121
• Format 121
• Function 121
• Model dependent variations 121
• Printers not featuring this command 121
• Related topics 121
• Default 122
• Esc 4 select italic font 122
• Format 122
• Function 122
• Model dependent variations 122
• Printers not featuring this command 122
• Related topics 122
• Default 123
• Esc 5 cancel italic font 123
• Format 123
• Function 123
• Model dependent variations 123
• Printers not featuring this command 123
• Related topics 123
• Default 124
• Esc 5 cancel italic font 124
• Format 124
• Function 124
• Model dependent variations 124
• Printers not featuring this command 124
• Related topics 124
• Add the numbers of the features to be selected and send the total as the parameter n 125
• All attributes or enhancements may not be available on some models for details see the explanation for the equivalent command listed in the table above 125
• Ascii esc n hex 1b 21 n decimal 27 33 n 125
• Esc master select 125
• Format 125
• Function 125
• Parameter range 125
• Selects any combination of several font attributes and enhancements by setting or clearing the appropriate bit in the n parameter as shown below 125
• This command cancels any attributes or enhancements that are not selected 125
• This command cancels multipoint mode 125
• This command cancels the hmi selected with the esc c command 125
• Add the numbers of the features to be selected and send the total as the parameter n 127
• All attributes or enhancements may not be available on some models for details see the command explanation for the equivalent command listed in the above table 127
• Ascii esc n hex 1b 21 n decimal 27 33 n 127
• Esc master select 127
• Format 127
• Function 127
• Model dependent variations 127
• Parameter range 127
• Printers not featuring this command 127
• Related topics 127
• Select a font 127
• Selects any combination of several font attributes and enhancements by setting or clearing the appropriate bit in the n parameter as shown below 127
• This command cancels any attributes or enhancements that are not selected 127
• Default 128
• Esc g select double strike printing 128
• Format 128
• Function 128
• Model dependent variations 128
• Printers not featuring this command 128
• Related topics 128
• Default 129
• Esc g select double strike printing 129
• Format 129
• Function 129
• Model dependent variations 129
• Printers not featuring this command 129
• Related topics 129
• Default 130
• Esc h cancel double strike printing 130
• Format 130
• Function 130
• Model dependent variations 130
• Printers not featuring this command 130
• Related topics 130
• Default 131
• Esc h cancel double strike printing 131
• Format 131
• Function 131
• Model dependent variations 131
• Printers not featuring this command 131
• Related topics 131
• Default 132
• Esc turn underline on off 132
• Format 132
• Function 132
• Model dependent variations 132
• Parameter range 132
• Printers not featuring this command 132
• Related topics 132
• Default 133
• Esc turn underline on off 133
• Format 133
• Function 133
• Model dependent variations 133
• Parameter range 133
• Printers not featuring this command 133
• Related topics 133
• Default 134
• Esc select line score 134
• Format 134
• Function 134
• Parameter range 134
• Default 136
• Esc s select superscript subscript printing 136
• Format 136
• Function 136
• Model dependent variations 136
• Parameter range 136
• Printers not featuring this command 136
• Related topics 136
• Default 137
• Esc s select superscript subscript printing 137
• Format 137
• Function 137
• Model dependent variations 137
• Parameter range 137
• Printers not featuring this command 137
• Related topics 137
• Default 138
• Esc t cancel superscript subscript printing 138
• Format 138
• Function 138
• Model dependent variations 138
• Printers not featuring this command 138
• Related topics 138
• Default 139
• Esc t cancel superscript subscript printing 139
• Format 139
• Function 139
• Model dependent variations 139
• Printers not featuring this command 139
• Related topics 139
• Default 140
• Esc q select character style 140
• Format 140
• Function 140
• Model dependent variations 140
• Parameter range 140
• Printers not featuring this command 140
• Related topics 140
• Default 141
• Format 141
• Function 141
• Model dependent variations 141
• Printers not featuring this command 141
• Related topics 141
• Si select condensed printing 141
• Default 142
• Format 142
• Function 142
• Model dependent variations 142
• Printers not featuring this command 142
• Related topics 142
• Si select condensed printing 142
• Default 143
• Esc si select condensed printing 143
• Format 143
• Function 143
• Model dependent variations 143
• Printers not featuring this command 143
• Related topics 143
• Default 144
• Esc si select condensed printing 144
• Format 144
• Function 144
• Model dependent variations 144
• Parameter range 144
• Printers not featuring this command 144
• Related topics 144
• Dc2 cancel condensed printing 145
• Default 145
• Format 145
• Function 145
• Model dependent variations 145
• Printers not featuring this command 145
• Related topics 145
• Dc2 cancel condensed printing 146
• Default 146
• Format 146
• Function 146
• Model dependent variations 146
• Printers not featuring this command 146
• Related topics 146
• Default 147
• Format 147
• Function 147
• Model dependent variations 147
• Printers not featuring this command 147
• Related topics 147
• So select double width printing one line 147
• Default 148
• Format 148
• Function 148
• Model dependent variations 148
• Printers not featuring this command 148
• Related topics 148
• So select double width printing one line 148
• Default 149
• Esc so select double width printing one line 149
• Format 149
• Function 149
• Model dependent variations 149
• Printers not featuring this command 149
• Related topics 149
• Default 150
• Esc so select double width printing one line 150
• Format 150
• Function 150
• Model dependent variations 150
• Printers not featuring this command 150
• Related topics 150
• Dc4 cancel double width printing one line 151
• Default 151
• Format 151
• Function 151
• Model dependent variations 151
• Parameter range 151
• Printers not featuring this command 151
• Related topics 151
• Dc4 cancel double width printing one line 152
• Default 152
• Format 152
• Function 152
• Model dependent variations 152
• Printers not featuring this command 152
• Related topics 152
• Default 153
• Esc w turn double width printing on off 153
• Format 153
• Function 153
• Model dependent variations 153
• Parameter range 153
• Printers not featuring this command 153
• Related topics 153
• Default 154
• Esc w turn double width printing on off 154
• Format 154
• Function 154
• Model dependent variations 154
• Parameter range 154
• Printers not featuring this command 154
• Related topics 154
• Default 155
• Esc w turn double height printing on off 155
• Format 155
• Function 155
• Model dependent variations 155
• Parameter range 155
• Printers not featuring this command 155
• Related topics 155
• Default 156
• Esc w turn double height printing on off 156
• Format 156
• Function 156
• Model dependent variations 156
• Parameter range 156
• Printers not featuring this command 156
• Related topics 156
• Default 157
• Esc print data as characters 157
• Format 157
• Function 157
• Model dependent variations 157
• Parameter range 157
• Printers not featuring this command 157
• Related topics 157
• Default 158
• Esc 6 enable printing of upper control codes 158
• Format 158
• Function 158
• Model dependent variations 158
• Printers not featuring this command 158
• Related topics 158
• Default 159
• Esc 6 enable printing of upper control codes 159
• Format 159
• Function 159
• Model dependent variations 159
• Printers not featuring this command 159
• Related topics 159
• Default 160
• Esc 7 enable upper control codes 160
• Format 160
• Function 160
• Model dependent variations 160
• Printers not featuring this command 160
• Related topics 160
• Default 161
• Esc 7 enable upper control codes 161
• Format 161
• Function 161
• Model dependent variations 161
• Printers not featuring this command 161
• Related topics 161
• Default 162
• Esc i enable printing of control codes 162
• Format 162
• Function 162
• Model dependent variations 162
• Parameter range 162
• Printers not featuring this command 162
• Related topics 162
• Default 163
• Esc m select printing of upper control codes 163
• Format 163
• Function 163
• Model dependent variations 163
• Parameter range 163
• Printers not featuring this command 163
• Related topics 163
• Esc em control paper loading ejecting 164
• Format 164
• Function 164
• Model dependent variations 164
• Parameter range 164
• Printers not featuring this command 164
• Related topics 164
• Esc em control paper loading ejecting 165
• Format 165
• Function 165
• Model dependent variations 165
• Parameter range 165
• Printers not featuring this command 165
• Related topics 165
• Default 166
• Esc u turn unidirectional mode on off 166
• Format 166
• Function 166
• Model dependent variations 166
• Parameter range 166
• Printers not featuring this command 166
• Related topics 166
• Default 167
• Esc u turn unidirectional mode on off 167
• Format 167
• Function 167
• Model dependent variations 167
• Parameter range 167
• Printers not featuring this command 167
• Related topics 167
• Default 168
• Esc unidirectional mode one line 168
• Format 168
• Function 168
• Model dependent variations 168
• Printers not featuring this command 168
• Related topics 168
• Default 169
• Esc unidirectional mode one line 169
• Format 169
• Function 169
• Model dependent variations 169
• Printers not featuring this command 169
• Related topics 169
• Bel beeper 170
• Format 170
• Function 170
• Model dependent variations 170
• Printers not featuring this command 170
• Bel beeper 171
• Format 171
• Function 171
• Model dependent variations 171
• Printers not featuring this command 171
• Default 172
• Esc 8 disable paper out detector 172
• Format 172
• Function 172
• Model dependent variations 172
• Printers not featuring this command 172
• Related topics 172
• Default 173
• Esc 9 enable paper out detector 173
• Format 173
• Function 173
• Model dependent variations 173
• Printers not featuring this command 173
• Related topics 173
• Default 174
• Esc s select low speed mode 174
• Format 174
• Function 174
• Model dependent variations 174
• Parameter range 174
• Printers not featuring this command 174
• Default 175
• Esc s select low speed mode 175
• Format 175
• Function 175
• Model dependent variations 175
• Parameter range 175
• Printers not featuring this command 175
• Esc g select graphics mode 176
• Format 176
• Function 176
• Parameter range 176
• Esc i select microweave print mode 178
• Format 178
• Function 178
• Model dependent variations 178
• Parameter range 178
• Printers featuring this command 178
• Related topics 178
• Esc print raster graphics 179
• Format 179
• Function 179
• Parameter range 179
• Model dependent variations 181
• Printers not featuring this command 181
• Related topics 181
• Esc 2 enter tiff compressed mode 182
• Format 182
• Function 182
• Parameter range 182
• Model dependent variations 183
• Printers featuring this command 183
• Related topics 183
• Esc select bit image 184
• Format 184
• Function 184
• Parameter range 184
• A vertical print density of 360 dpi can be achieved on 24 pin printers that feature the esc command advance the paper 1 360 inch using the esc command and then overprint the previous graphics line 185
• Actionprinter 3000 actionprinter 4000 actionprinter 4500 lq 510 lq 550 lq 850 lq 850 lq 860 lq 860 lq 950 lq 1010 lq 1050 lq 1050 lq 1060 lq 1060 lq 2550 and all esc p 2 printers 185
• Dot density 185
• Model dependent variations 185
• Not all values for m are available on all printers see the command table for a list of which values are available on your printer 185
• Printers not featuring this command 185
• Printing 48 dot columns is available only on 48 dot printers 185
• Related topics 185
• Sending graphics data bit image graphics 185
• Ascii esc m 186
• Bit image graphics can be printed on the same line as text 186
• Bytes of graphics data 186
• Decimal 27 42 m 186
• Dot density 186
• Esc select bit image 186
• Format 186
• Function 186
• Graphics data that would print beyond the right margin position is ignored 186
• Hex 1b 2a m 186
• M specifies the dot density see table below 186
• Not all values for m are available on all printers see the command table for a list of which values are available on your printer 186
• Parameter range 186
• Prints dot graphics in 8 dot columns depending on the following parameters 186
• Specify the total number of columns k of graphics data following according to the formula 186
• Model dependent variations 187
• Printers not featuring this command 187
• Related topics 187
• Default 188
• Esc reassign bit image mode 188
• Format 188
• Function 188
• Model dependent variations 188
• Parameter range 188
• Printers not featuring this command 188
• Related topics 188
• Default 189
• Esc reassign bit image mode 189
• Format 189
• Function 189
• Model dependent variations 189
• Parameter range 189
• Printers not featuring this command 189
• Related topics 189
• Esc k select 60 dpi graphics 190
• Format 190
• Function 190
• Model dependent variations 190
• Parameter range 190
• Printers not featuring this command 190
• Related topics 190
• Esc k select 60 dpi graphics 191
• Format 191
• Function 191
• Model dependent variations 191
• Parameter range 191
• Printers not featuring this command 191
• Related topics 191
• Esc l select 120 dpi graphics 192
• Format 192
• Function 192
• Model dependent variations 192
• Parameter range 192
• Printers not featuring this command 192
• Related topics 192
• Esc l select 120 dpi graphics 193
• Format 193
• Function 193
• Model dependent variations 193
• Parameter range 193
• Printers not featuring this command 193
• Related topics 193
• Esc y select 120 dpi double speed graphics 194
• Format 194
• Function 194
• Model dependent variations 194
• Parameter range 194
• Printers not featuring this command 194
• Related topics 194
• Esc y select 120 dpi double speed graphics 195
• Format 195
• Function 195
• Model dependent variations 195
• Parameter range 195
• Printers not featuring this command 195
• Related topics 195
• Esc z select 240 dpi graphics 196
• Format 196
• Function 196
• Model dependent variations 196
• Parameter range 196
• Printers not featuring this command 196
• Related topics 196
• Esc z select 240 dpi graphics 197
• Format 197
• Function 197
• Model dependent variations 197
• Parameter range 197
• Printers not featuring this command 197
• Related topics 197
• Esc select 60 120 dpi 9 pin graphics 198
• Format 198
• Function 198
• Parameter range 198
• Default 200
• Esc r select printing color 200
• Format 200
• Function 200
• Model dependent variations 200
• Parameter range 200
• Printers not featuring this command 200
• Related topics 200
• Default 201
• Esc r select printing color 201
• Format 201
• Function 201
• Model dependent variations 201
• Parameter range 201
• Printers not featuring this command 201
• Related topics 201
• 3 dots 3 dots 202
• 4 dots 4 dots 202
• 5 dots 5 dots 202
• Ascii esc b 202
• C barcodedata 202
• C barcodedata decimal 27 40 66 202
• C barcodedata hex 1b 28 42 202
• Code 128 202
• Code 39 202
• Default 2 dots 2 dots 202
• Ean 13 202
• Esc b bar code setup and print 202
• Format 202
• Function 202
• Interleaved 2 of 5 202
• K bar code type 202
• K hex bar code type 202
• M 24 pin printer unit 1 180 inch 9 pin printer unit 1 120 inch 202
• M module width 202
• Parameter range 202
• Parameters are used as described below 202
• Postnet 202
• Prints bar codes 202
• Total number of data bytes to follow determined by the following equation 202
• Bar length 203
• Barcodedata corresonds to the bar code symbology 203
• C control flag 203
• Long bar length of postnet is always 0 25 inch 203
• Number of valid characters 1 control flag c bit 0 0 203
• Number of valid characters 2 control flag c bit 0 1 203
• S space adjustment value 203
• Short bar length of postnet is always 0 50 inch 203
• The bar code is not printed if the number of bar code characters are incorrect 203
• The data number of each bar code type is constant 203
• Values are ignored when postnet is selected 203
• Model dependent variations 204
• Printers featuring this command 204
• Related topics 204
• Esc initialize printer 205
• Format 205
• Function 205
• Model dependent variations 205
• Printers not featuring this command 205
• Related topics 205
• Esc initialize printer 206
• Format 206
• Function 206
• Model dependent variations 206
• Printers not featuring this command 206
• Related topics 206
• Can cancel line 207
• Format 207
• Function 207
• Model dependent variations 207
• Printers not featuring this command 207
• Can cancel line 208
• Format 208
• Function 208
• Model dependent variations 208
• Printers not featuring this command 208
• Del delete last character in buffer 209
• Format 209
• Function 209
• Model dependent variations 209
• Printers not featuring this command 209
• Del delete last character in buffer 210
• Format 210
• Function 210
• Model dependent variations 210
• Printers not featuring this command 210
• Dc1 select printer 211
• Default 211
• Format 211
• Function 211
• Model dependent variations 211
• Printers not featuring this command 211
• Dc1 select printer 212
• Default 212
• Format 212
• Function 212
• Model dependent variations 212
• Printers not featuring this command 212
• Dc3 deselect printer 213
• Default 213
• Format 213
• Function 213
• Model dependent variations 213
• Printers not featuring this command 213
• Dc3 deselect printer 214
• Default 214
• Format 214
• Function 214
• Model dependent variations 214
• Printers not featuring this command 214
• Default 215
• Esc cancel msb control 215
• Format 215
• Function 215
• Model dependent variations 215
• Printers not featuring this command 215
• Related topics 215
• Default 216
• Esc cancel msb control 216
• Format 216
• Function 216
• Model dependent variations 216
• Printers not featuring this command 216
• Related topics 216
• Default 217
• Esc set msb to 0 217
• Format 217
• Function 217
• Model dependent variations 217
• Printers not featuring this command 217
• Related topics 217
• Default 218
• Esc set msb to 0 218
• Format 218
• Function 218
• Model dependent variations 218
• Printers not featuring this command 218
• Related topics 218
• Default 219
• Format 219
• Function 219
• Model dependent variations 219
• Printers not featuring this command 219
• Related topics 219
• Set msb to 1 219
• Default 220
• Format 220
• Function 220
• Model dependent variations 220
• Printers not featuring this command 220
• Related topics 220
• Set msb to 1 220
• Default 221
• Esc j reverse paper feed 221
• Format 221
• Function 221
• Model dependent variations 221
• Parameter range 221
• Printers featuring this command 221
• Related topics 221
• Default 222
• Esc i select immediate print mode 222
• Format 222
• Function 222
• Model dependent variations 222
• Parameter range 222
• Printers featuring this command 222
• Binary mode commands 223
• Format 224
• Function 224
• Model dependent variations 224
• Parameter range 224
• Printers featuring this command 224
• Related topics 224
• Transfer raster graphics data 224
• Format 225
• Function 225
• Model dependent variations 225
• Parameter range 225
• Printers featuring this command 225
• Related topics 225
• Set relative horizontal position 225
• Format 226
• Function 226
• Model dependent variations 226
• Parameter range 226
• Printers featuring this command 226
• Related topics 226
• Set relative vertical position 226
• Format 227
• Function 227
• Model dependent variations 227
• Parameter range 227
• Printers featuring this command 227
• Related topics 227
• Select printing color 227
• Carriage return to left most print position 228
• Format 228
• Function 228
• Model dependent variations 228
• Printers featuring this command 228
• Related topics 228
• Exit tiff compressed mode 229
• Format 229
• Function 229
• Model dependent variations 229
• Printers featuring this command 229
• Related topics 229
• Format 230
• Function 230
• Model dependent variations 230
• Printers featuring this command 230
• Related topics 230
• Unit to 8 dots 230
• Format 231
• Function 231
• Model dependent variations 231
• Printers featuring this command 231
• Related topics 231
• Unit to 1 dot 231
• Recommended operations 232
• Recommended command order 235
• Set the printing area 236
• Make sure the margins stay within the printable area the area within these margins is called the printing area 237
• Note make sure your program keeps printing within this area otherwise print quality cannot be assured 237
• The printable area 237
• The printable area for continuous and single sheet paper is shown below 237
• The following diagram shows the printing area for single sheet and continuous paper 238
• Setting left and right margins 240
• Setting page length 241
• Setting bottom margin 244
• Setting top and bottom margins 244
• Assign character tables 246
• Select characters 246
• Do not assign a registered table to table 2 if you plan to use it for user defined characters once you assign a registered table to table 2 you must reset the printer with the esc command before you can use it for user defined characters 247
• Esc t 3 0 0 0 0 assigns the italic table to active table 0 247
• Esc t 3 0 1 1 0 assigns the pc437 us table to active table 1 247
• Esc t 3 0 2 8 0 assigns the pc865 canada french table to active table 2 247
• Esc t 3 0 3 3 0 assigns the pc850 multilingual table to active table 3 247
• Note you always assign the tables at the beginning of a print job do not assume what the settings are 247
• The esc p 2 command for assigning these tables is esc t the diagram below illustrates this process 247
• The following commands assign character tables to active tables 0 to 3 247
• You can reassign any of the tables at any time without affecting other table assignments 247
• Defining user defined characters 248
• 48 pin printers height width 250
• Note for 9 pin printers nlq user defined characters are available only on lx series printers 250
• Pin printers height width 250
• Planning user defined characters 250
• These traits and the maximum recommended size for each combination of traits is shown in the table below exceeding the width for the following fixed pitches may not allow for sufficient spacing between characters 250
• User defined characters are defined based on a combination of several traits this combination of traits determines the number of dots that can be defined and the amount of data that must be sent for each character 250
• The diagrams below show the planning grids for lq nlq and draft mode characters 251
• 48 pin printers 253
• Before you can define and save your user defined characters you must change the printer settings to match your planned characters the following combinations of character traits are possible 253
• Cancel italic printing 253
• Follow the steps below when setting the traits of your planned user defined and other ram characters only steps 1 and 2 are necessary for 9 pin printers 253
• Note you should not store characters in ram memory when the printer is set to italic printing with the esc 4 command always send the esc 5 command to cancel italic printing before you define user defined characters or copy characters to ram memory 253
• Pin printers 253
• Select or cancel proportional spacing 253
• Select or cancel super subscript characters 253
• Select the print quality lq nlq or draft 253
• Setting user defined character traits 253
• Copying rom characters to ram memory 255
• Preparing data 256
• Storing user defined character data in printer memory 256
• Divide each column into the following groups depending on character and printer traits 257
• Each group of dots is represented by a byte of data and each dot within that group has a value as shown below add up the value of each dot in the group the result is the value for the byte of data 258
• Determine the value of the data bytes for all the columns in your design the printer requires data in the order shown below 259
• Note the printer must receive complete columns of data in other words the number of bytes received must be a multiple of 3 for normal height characters on 24 48 pin printers and 9 pin nlq characters or a multiple of 2 for super subscript characters draft 9 pin character columns are only 1 byte high 259
• Deciding where to store data 260
• Sending user defined characters to the printer 262
• Attribute byte table 264
• For example to define a character that begins in column 2 and ends in 9 during proportional spacing and is printed with the upper 8 pins determine the attribute byte as follows 264
• Note the beginning column and ending column settings are only used during proportional spacing during proportional spacing the columns to the left of the beginning column and to the right of the ending column are cut off 264
• Proportional spacing is not available on lx series printers 264
• This information is stored within the attribute byte as shown below 264
• To determine the value of the attribute byte add up the numbers for the parameters you wish to set 264
• Total attribute byte 169 264
• Value value beginning column is 2 32 ending column is 9 9 upper 8 pins 128 264
• You must send an attribute byte for each character you define 264
• Switching to ram character printing 267
• Pin printer 268
• Esc r n 272
• Selecting an international character set 272
• The format for this command is as follows 272
• The parameter n determines which character set is selected 272
• The table below shows these characters and their codes in the helvetica typeface as well as the value of the parameter used in the esc r command to select each character set 272
• You can change up to 12 of the characters in the current character table with the esc r command these 12 characters are called international character sets because they correspond to characters commonly used in several foreign languages 272
• Double strike esc g esc h 273
• Each time you change one of the above attributes the printer selects a new font if a font matching the selected attributes is not available in the printer s rom memory the printer manufactures a temporary font with those attributes 273
• Esc p 2 includes the esc x command for selecting scalable fonts differences in handling scalable fonts are discussed in each section 273
• However fonts are defined by six attributes 273
• Score esc esc 273
• Select a font 273
• Shadow outline esc q 273
• The term font is often confused with typeface because the electronic printer field has evolved from basic beginnings these two terms have often been used interchangeably 273
• You can modify each font with several enhancements as follows 273
• You can set these attributes in any order changing one attribute does not affect any other attribute however the printer selects fonts internally in the above order so using that order is the most efficient 273
• Print quality draft lq or nlq 274
• Standard and scalable fonts multipoint mode 274
• During multipoint mode sending the commands below results in the following 275
• Esc t n 275
• Selecting the character table 275
• The character table is one attribute of the font selecting a different character table selects a different font 275
• The parameter n is the number of the character table 275
• Use the esc t command to select the character table the format for this command is as follows 275
• With esc p 2 you can select from four active character tables see assign character tables for details 275
• With previous esc p versions you can select from two character tables italics and graphics 275
• Selecting the point size 276
• Selecting the typeface 278
• Selecting the pitch 279
• For previous esc p level printers as well as esc p 2 printers that are not in multipoint mode you can adjust the character pitch by setting the following features 280
• Non esc p 2 printers and typefaces not available in multipoint mode 280
• Proportional spacing 10 cpi character spacing 12 cpi character spacing 15 cpi character spacing condensed printing intercharacter spacing double width printing 280
• The following commands cancel the hmi set with the esc c command 280
• The following commands produce the fixed pitches indicated 280
• The hmi set with the esc c command cancels the pitch set with the esc x command 280
• These pitches are not available on 9 pin printers 280
• You can also set the pitch with the esc c command this command sets the horizontal motion index hmi in inches per character rather than in cpi the format of this command is as follows 280
• Selecting the style 281
• Double strike 282
• Enhancements 282
• Selecting the weight 282
• Shadow outline 283
• Super subscript 285
• Select supporting features 286
• Selecting print color 286
• Selecting unidirectional print head movement 286
• Select the print position 287
• Esc p 2 has new commands that allow for easier vertical and horizontal movement of the print position 288
• Esc set the absolute horizontal position esc set the relative horizontal position ht horizontal tab 288
• Esc sets the absolute horizontal position esc sets the relative horizontal position 288
• Esc u sets a unit that is used for moving the print position and setting the page format esc v sets the absolute vertical position on the page esc v sets the relative vertical position on the page 288
• Horizontal movement is performed with commands available in previous esc p versions however now the increment of movement is the unit set with the esc u command 288
• Moving the horizontal position 288
• The following sections describe moving the print position with explanations for both esc p 2 and previous esc p versions 288
• The format of the esc command is as follows 288
• The horizontal print position is defined as the position where the left most printable column of dots is printed for the next character or graphics design 288
• The resulting horizontal position is determined by the formula below 288
• These new commands are 288
• To move the the horizontal print position independent of character printing the recommended commands are as follows 288
• When you print characters or spaces the printer automatically moves the print position according to the pitch you select or the width of each character if you select proportional spacing 288
• The defined unit varies as follows esc p 2 printers the unit defined with the esc u command non esc p 2 printers 1 60 inch 289
• The defined unit varies as follows esc p 2 printers the unit defined with the esc u command non esc p2 24 48 pin printers lq mode 1 180 inch draft mode 1 120 inch 9 pin printers 1 120 inch 289
• The format of the esc command is as follows 289
• The horizontal position is determined by the formula below 289
• To move to the left of the current print position 289
• To move to the right of the current print position 289
• Moving the vertical position 291
• Esc v 2 0 292
• Esc v set absolute vertical print position esc v set relative vertical print position 292
• New commands are available in esc p 2 that simplify setting the vertical print position these commands are 292
• The format for the esc v command is as follows 292
• The resulting vertical position is determined by the following formula 292
• The unit of movement for both these commands is the unit set with the esc u command see esc u in the command summary and setting the page length for more information 292
• To move in the negative direction up the page the formula is as follows 292
• To move in the positive direction down the page the formula is as follows 292
• Send print data 295
• Sending graphics data 296
• Bit image graphics 297
• Determining vertical and horizontal dot density 297
• Data bytes 298
• Dot density 298
• Specifies the number of dot columns to follow determined by the following equation 298
• The number of bytes required for each dot column shown below 298
• You must specify the vertical and horizontal dot density of graphics when sending the esc command the dot densities available are shown in the table below 298
• Preparing bit image data 299
• After plotting the design divide the grid into groups one dot wide and eight dots high 300
• Sending graphics data r 69 300
• The dots in each group have a value as shown in the following diagram the sum of each group is sent as a byte of data to the printer calculate the value for each byte as shown 300
• Sending bit image data to the printer 301
• Mixing text and bit image graphics with esc p 2 printers 302
• Entering and exiting graphics mode 304
• Graphics mode 304
• Commands available in graphics mode 305
• Standard raster graphics 305
• After plotting the design divide the grid into groups one dot high and eight dots wide 307
• Esc u 1 0 10 selects 1 360 inch unit esc u 1 0 20 selects 1 180 inch unit 307
• Next create a grid for plotting your design if the horizontal density is not the same as the vertical density make a grid that reflects this 307
• Once you have decided the dot density use the esc u to set the unit to match the vertical dot density 307
• See the sample grid below 307
• The dots in each group have a value as shown in the following diagram calculate the value for each group as shown 307
• The vertical and horizontal dot densities that can be selected are as follows 307
• Divide your image into bands 1 8 or 24 dots high the number of vertical dots is called the band height this is the value you should use for parameter m in the esc command 308
• The band height affects the following 309
• The band height determines the number of times you must send the esc command you must resend the esc command for each band of graphics you print the taller the band height the less number of esc commands you need to send 309
• The following table gives you an idea of how much memory is required for band heights at certain standard widths 309
• The taller the band height the more memory you must prepare in your program to accomodate graphics data 309
• Use the esc command to set line spacing to match the band height the following table shows the command format for each band height 309
• Before sending data you must also determine the width of your graphics image the width is also specified in number of dots of course data must be sent in bytes all data beyond the dot width specified is ignored 310
• Determine the dot width parameters for the esc command as follows 310
• The following illustration shows the dot width and the ignored data 310
• Use a combination of the esc v esc v esc or esc commands to set the beginning position of the first graphics band the print position corresponds to the position of the first printable dot in your image 310
• Full graphics mode esc 0 311
• Standard raster graphics compressed mode esc 1 312
• After sending the following data shaded data bytes are counters send a cr or lf command 313
• During compressed mode divide the image grid into bytes just as with full graphics mode however you then separate repetitive data bytes from nonrepetitive bytes shaded areas indicate repetitive data bytes 313
• Esc 1 10 10 8 72 0 313
• If a data length counter is received the printer prints the specified number of bytes the next byte following the data is treated as a counter 313
• Note if your image has consecutive blank spaces use the repeat counter to send repetitive bytes of nul data bytes with value of 0 this can greatly reduce the amount of data necessary for printing some images 313
• Prints next 5 bytes as data esc 1 10 10 8 48 0 4 10 129 100 63 48 10 first counter byte second counter byte 313
• Since the printer evaluates each counter separately you can include both kinds of counters in the same esc 1 command sequence however the total amount of print data must match the length and height of the graphics band 313
• The esc 1 command would be as follows for the example above 313
• Extended raster graphics esc 2 314
• Barcode print is available on dlq 3000 96 lq 670 lq 2070 lq 2170 fx 2170 and later impact dot matrix models 315
• C barcodedata 315
• Printing bar codes 315
• Specifies the bar length 315
• Specify the number of data bytes to follow determined by the following equation 315
• The esc b command is used to print barcodes the format of this command is as follows 315
• The parameter 315
• The parameter k specifies the barcode type 315
• The parameter m specifies the module width 315
• The parameter s specifies the space adjustment value 315
• Barcode data corresponds to the bar code symbology the data number of each bar code type is constant the bar code is not printed if the number of bar code characters are incorrect 316
• The parameter c specifies the control flag 316
• The valid data of each bar code type are as follows if invalid data is included in the barcode data string the bar code is not printed 316
• Data character set a 317
• Data character set b 318
• Data character set c 319
• Extended esc p 2 programming guide 330
• Microweave technology 330
• Color bit image graphics support 331
• Esc p 2 color multipoint font support 331
• Monochrome printing support 331
• Esc p 2 microweave color extended raster graphics tiff 332
• Esc p 2 microweave color raster graphics and rle compressed raster graphics 332
• Binary mode commands 333
• Bit assignments 333
• Command the print head moves to the left most position x 0 334
• Epson esc p printer feature comparison table 334
• Graphics commands 334
• Movement commands 334
• Note color printing is not available with the lq 570 ap 5000 stylus 300 stylus 400 stylus 800 stylus 800 and stylus 1000 334
• See example 3 and the following feature comparison table for further information 334
• System level commands 334
• Example 1 esc p 2 color multipoint font driver 335
• Programming examples 335
• Example 2 microweave esc p 2 standard color raster graphics and rle compressed raster graphics driver 336
• Example 3 microweave esc p 2 extended color raster graphics and tiff compressed raster graphics driver 338
• 48 pin printers 341
• T 2 24 48 pin printers 341
• 48 pin printers t 3 342
• 48 pin printers 343
• T 4 24 48 pin printers 343
• 48 pin printers t 5 344
• 48 pin printers 345
• T 6 24 48 pin printers 345
• 48 pin printers t 7 346
• 48 pin printers 347
• T 8 24 48 pin printers 347
• 48 pin printers t 9 348
• 48 pin printers 349
• T 10 24 48 pin printers 349
• 48 pin printers t 11 350
• 48 pin printers 351
• T 12 24 48 pin printers 351
• 48 pin printers t 13 352
• 48 pin printers 353
• T 14 24 48 pin printers 353
• 48 pin printers t 15 354
• 48 pin printers 355
• T 16 24 48 pin printers 355
• 48 pin printers t 17 356
• 48 pin printers 357
• T 18 24 48 pin printers 357
• 48 pin printers t 19 358
• 48 pin printers 359
• T 20 24 48 pin printers 359
• 48 pin printers t 21 360
• Pin printers 361
• T 22 9 pin printers 361
• Pin printers t 23 362
• Pin printers 363
• T 24 9 pin printers 363
• Pin printers t 25 364
• Pin printers 365
• T 26 9 pin printers 365
• Pin printers t 27 366
• Pin printers 367
• T 28 9 pin printers 367
• Pin printers t 29 368
• Pin printers 369
• T 30 9 pin printers 369
• Pin printers t 31 370
• Pin printers 371
• T 32 9 pin printers 371
• Pin printers t 33 372
• Pin printers 373
• T 34 9 pin printers 373
• Pin printers t 35 374
• Pin printers 375
• T 36 9 pin printers 375
• Pin printers t 37 376
• 48 pin printers 379
• Actionprinter l 750 dip switch settings 379
• Actionprinter l 750 year introduced 1989 market america 379
• Built in features 379
• Cut sheet feeder 7341 single bin interfaces 8148 8165 8172 ribbon 7753 fabric 379
• Options with model numbers 379
• Print method 24 pin impact speed lq 60 cps 10 cpi 72 cps 12 cpi draft 180 cps 10 cpi 216 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 379
• Actionprinter l 1000 dip switch settings 380
• Actionprinter l 1000 year introduced 1988 market america 380
• Built in features 380
• Cut sheet feeder 7341 single bin interfaces 8143 8145 8148 8149 8149m 8161 8165 8172 8172m ribbon 7753 fabric font cartridges 7400 7401 7402 7403 7407 380
• F 4 feature summary 380
• Options with model numbers 380
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 380
• Actionprinter 3000 dip switch settings 381
• Actionprinter 3000 year introduced 1990 market america 381
• Built in features 381
• Cut sheet feeder 7341 single bin interfaces 8143 8148 8165 ribbons 7753 fabric 7768 film 381
• Feature summary f 5 381
• Options with model numbers 381
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 8 inches paper types continuous single sheets labels multipart forms original plus 2 copies paper paths rear top bottom tractor pull paper parking not available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator 381
• Actionprinter 3250 default setting mode 382
• Actionprinter 3250 year introduced 1991 market america 382
• Built in features 382
• Options with model numbers 382
• Actionprinter 3260 default setting mode 383
• Actionprinter 3260 year introduced 1994 market america 383
• Built in features 383
• Options with model numbers 383
• Actionprinter 4000 dip switch settings 384
• Actionprinter 4000 year introduced 1990 market america 384
• Built in features 384
• Cut sheet feeder c806122 single bin tractor c800062 pull interfaces 8143 8148 8165 8641 8642 ribbons 7753 fabric 7768 film font cartridge 7407 384
• Esc p 2 384
• F 8 feature summary 384
• Options with model numbers 384
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 384
• Actionprinter 4000 dip switch settings 385
• Actionprinter 4000 year introduced 1991 market america 385
• Built in features 385
• Cut sheet feeder c806122 single bin tractor c800062 pull interfaces 8143 8148 8165 c823032 c823021 ribbons 7753 fabric 7768 film 385
• Feature summary f 9 385
• Options with model numbers 385
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 385
• Actionprinter 4500 dip switch settings 386
• Actionprinter 4500 year introduced 1990 market america 386
• Built in features 386
• Cut sheet feeder c806242 single bin tractor c800142 pull interfaces 8143 8148 8165 8172 ribbons 7754 fabric 7770 film font cartridge 7407 386
• F 10 feature summary 386
• Options with model numbers 386
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 386
• Actionprinter 4500 dip switch settings 387
• Actionprinter 4500 year introduced 1991 market america 387
• Built in features 387
• Cut sheet feeder c806242 single bin tractor c800142 pull interfaces 8143 8148 8165 c823032 c823021 ribbons 7754 fabric 7770 film 387
• Feature summary f 11 387
• Options with model numbers 387
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 387
• Actionprinter 5000 dip switch settings 388
• Actionprinter 5000 year introduced 1991 market america 388
• Built in features 388
• Cut sheet feeders c806372 c806382 single bin tractor c800192 pull interfaces c823061 c823081 c806382 ribbons 7753 fabric 7768 film 388
• Esc p 2 388
• F 12 feature summary 388
• Options with model numbers 388
• Print method 24 pin impact speed lq 70 cps 10 cpi 84 cps 12 cpi draft 210 cps 10 cpi 252 cps 12 cpi high speed draft 225 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c 388
• Actionprinter 5000 dip switch settings 389
• Actionprinter 5000 year introduced 1992 market america 389
• Built in features 389
• Cut sheet feeders c80637 single bin c80638 high capacity tractor c80019 pull interfaces c82305 c82307 c82310 ribbons 7753 fabric 7768 film the last digit of the option model numbers shown above as an asterisk varies by country 389
• Esc p 2 389
• Feature summary f 13 389
• Options with model numbers 389
• Print method 24 pin impact speed lq 75 cps 10 cpi 90 cps 12 cpi draft 225 cps 10 cpi 269 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 0 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c roman t sans serif h nonprintable area 5 mm at the top of single sheets 389
• Actionprinter 5500 dip switch settings 390
• Actionprinter 5500 year introduced 1991 market america 390
• Built in features 390
• Cut sheet feeders c80639 c80640 single bin tractor c80022 pull interfaces c82305 c82306 c82307 c82308 ribbons 7754 fabric 7770 film the last digit of the option model numbers shown above as an asterisk varies by country 390
• Esc p 2 390
• F 14 feature summary 390
• Options with model numbers 390
• Print method 24 pin impact speed lq 70 cps 10 cpi 84 cps 12 cpi draft 210 cps 10 cpi 252 cps 12 cpi high speed draft 225 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c 390
• Built in features 391
• Cut sheet feeder c806301 single bin ribbons s015013 fabric 7764 film 7763 color 391
• Dlq 2000 dip switch settings 391
• Dlq 2000 year introduced 1990 market europe pacific 391
• Feature summary f 15 391
• Options with model numbers 391
• Print method 24 pin impact speed lq 75 cps 10 cpi 90 cps 12 cpi draft 225 cps 10 cpi 270 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 5 copies paper paths rear top front tractor push paper parking available buffer size 8kb interfaces parallel serial fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 391
• Availability varies by country 392
• Built in features 392
• Cut sheet feeder c80630 single bin interfaces c82307 c82308 c82310 c82312 c82313 c82314 c82315 ribbons s015066 fabric s015608 film s015067 color the last digit of the option model numbers shown above as an asterisk varies by country 392
• Dlq 3000 selectype settings 392
• Dlq 3000 year introduced 1993 market europe pacific 392
• Esc p 2 392
• F 16 feature summary 392
• Options with model numbers 392
• Print method 24 pin impact speed lq 120 cps 10 cpi 144 cps 12 cpi draft 360 cps 10 cpi 432 cps 12 cpi high speed draft 444 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 5 copies paper paths rear top front tractor push paper parking available buffer size 128kb interfaces parallel serial fonts typefaces roman sans serif courier prestige script script c orator orator s ocr b roman t sans serif h nonprintable area 4 mm at the top of single sheets 392
• This printer has no dip switches however the following settings can be made with selectype 392
• This setting is available only in ibm mode 392
• Availability varies by country 393
• Built in features 393
• Cut sheet feeder interfaces c82315 c82331 s015066 fabric s015608 film s015067 color 393
• Dlq 3000 96 selectype settings 393
• Dlq 3000 96 year introduced 1996 market europe pacific 393
• Esc p 2 393
• Feature summary f 17 393
• Options with model numbers 393
• Print method 24 pin impact speed lq 120 cps 10 cpi 144 cps 12 cpi draft 360 cps 10 cpi 432 cps 12 cpi high speed draft 444 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 5 copies paper paths rear top front tractor push paper parking available buffer size 128kb interfaces parallel serial fonts typefaces roman sans serif courier prestige script script c orator orator s ocr b roman t sans serif h bar codes ean 13 ean 8 interleaved 2 of 5 upc a upc e code 39 code 128 postnet nonprintable area 4 mm at the top and bottom of single sheets 393
• This setting is available only in ibm mode 393
• Built in features 394
• Lq 100 default setting mode 394
• Lq 100 year introduced 1991 market america pacific 394
• Options with model numbers 394
• Built in features 395
• Lq 150 default setting mode 395
• Lq 150 year introduced 1994 market america europe pacific 395
• Options with model numbers 395
• Built in features 396
• Cut sheet feeder 7341 single bin interfaces 8143 8148 8165 ribbons 7753 fabric 7768 film 396
• F 20 feature summary 396
• Lq 200 dip switch settings 396
• Lq 200 year introduced 1990 market america europe pacific 396
• Options with model numbers 396
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 8 inches paper types continuous single sheets labels multipart forms original plus 2 copies paper paths rear top bottom tractor pull paper parking not available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator 396
• Built in features 397
• Lq 300 default setting mode 397
• Lq 300 year introduced 1994 market america europe pacific 397
• Options with model numbers 397
• Built in features 398
• Cut sheet feeder 7341 single bin interfaces 8143 8145 8148 ribbons 7753 fabric 7768 film font cartridges 7400 7401 7402 7403 398
• F 22 feature summary 398
• Lq 400 dip switch settings 398
• Lq 400 year introduced 1990 market europe pacific 398
• Options with model numbers 398
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 398
• Built in features 399
• Cut sheet feeder c806122 single bin tractor c800062 pull interfaces 8143 8148 8165 c823032 c823021 ribbons 7753 fabric 7768 film 399
• Feature summary f 23 399
• Lq 450 dip switch settings 399
• Lq 450 year introduced 1991 market europe 399
• Options with model numbers 399
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 399
• Built in features 400
• Cut sheet feeder 7341 single bin interfaces 8143 8145 8148 8149 8149m 8161 8165 8172 8172m ribbons 7753 fabric 7768 film font cartridges 7400 7401 7402 7403 400
• F 24 feature summary 400
• Lq 500 dip switch settings 400
• Lq 500 year introduced 1988 market america europe pacific 400
• Options with model numbers 400
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 400
• Built in features 401
• Cut sheet feeder c806121 single bin tractor c800061 pull interfaces 8143 8148 8165 8172 ribbons 7753 fabric 7768 film font cartridge 7407 401
• Feature summary f 25 401
• Lq 510 dip switch settings 401
• Lq 510 year introduced 1989 market america 401
• Options with model numbers 401
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 401
• Built in features 402
• Cut sheet feeder c806122 single bin tractor c800062 pull interfaces 8143 8148 8165 c823032 c823021 ribbons 7753 fabric 7768 film 402
• F 26 feature summary 402
• Lq 510 dip switch settings 402
• Lq 510 year introduced 1991 market america 402
• Options with model numbers 402
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 402
• Built in features 403
• Cut sheet feeder c806122 single bin tractor c800062 pull interfaces 8143 8148 8165 8641 8642 ribbons 7753 fabric 7768 film font cartridge 7407 403
• Feature summary f 27 403
• Lq 550 dip switch settings 403
• Lq 550 year introduced 1989 market europe pacific 403
• Options with model numbers 403
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 403
• Built in features 404
• Cut sheet feeder c806122 single bin tractor c800062 pull interfaces 8143 8148 8165 c823032 c823021 ribbons 7753 fabric 7768 film 404
• F 28 feature summary 404
• Lq 550 dip switch settings 404
• Lq 550 year introduced 1991 market pacific 404
• Options with model numbers 404
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 404
• Built in features 405
• Cut sheet feeders c80637 c80638 single bin tractor c80019 pull interfaces c82305 c82307 c82310 ribbons 7753 fabric 7768 film the last digit of the option model numbers shown above as an asterisk varies by country 405
• Esc p 2 405
• Feature summary f 29 405
• Lq 570 dip switch settings 405
• Lq 570 year introduced 1991 market america europe pacific 405
• Options with model numbers 405
• Print method 24 pin impact speed lq 70 cps 10 cpi 84 cps 12 cpi draft 210 cps 10 cpi 252 cps 12 cpi high speed draft 225 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c 405
• Built in features 406
• Cut sheet feeders c80637 single bin c80638 high capacity tractor c80019 pull interfaces c82305 c82307 c82310 ribbons 7753 fabric 7768 film the last digit of the option model numbers shown above as an asterisk varies by country 406
• Dip switch 1 6 functions only on the european version of this printer 406
• Esc p 2 406
• F 30 feature summary 406
• Lq 570 dip switch settings 406
• Lq 570 year introduced 1992 market america europe pacific 406
• Options with model numbers 406
• Print method 24 pin impact speed lq 75 cps 10 cpi 90 cps 12 cpi draft 225 cps 10 cpi 269 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 0 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c roman t sans serif h nonprintable area 5 mm at the top of single sheets 406
• These character tables are not available on the european version these character tables are available only on the european version 406
• Dip switch settings for ibm emulation mode 407
• Feature summary f 31 407
• With dip switch 1 8 on esc 3 esc a esc j and esc function the same as in esc p 407
• Built in features 408
• Lq 670 default setting mode 408
• Lq 670 year introduced 1997 market america europe pacific 408
• Options with model numbers 408
• Built in features 409
• Cut sheet feeders 7333 single bin 8347 double bin tractor 7303 pull interfaces 8148 8165 8172 ribbons n a font cartridges 7400 7401 7402 7403 7404 409
• Feature summary f 33 409
• Lq 800 dip switch settings 409
• Lq 800 year introduced 1985 market america europe pacific 409
• Options with model numbers 409
• Print method 24 pin impact speed lq 60 cps 10 cpi draft 180 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 1 copy paper paths rear top paper parking not available buffer size 7kb or 1kb interfaces parallel serial fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 409
• Built in features 410
• Cut sheet feeders 7339 single bin 7346 double bin tractor 7311 pull interfaces 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m ribbons 7753 fabric 7768 film font cartridge 7407 410
• F 34 feature summary 410
• Lq 850 dip switch settings 410
• Lq 850 year introduced 1988 market america europe pacific 410
• Options with model numbers 410
• Print method 24 pin impact speed lq 73 cps 10 cpi 88 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 410
• Built in features 411
• Cut sheet feeders 7339 single bin 7346 double bin tractor 7311 pull interfaces 8143 8148 8165 8641 8642 ribbons 7753 fabric 7768 film 411
• Feature summary f 35 411
• Lq 850 dip switch settings 411
• Lq 850 year introduced 1990 market america 411
• Options with model numbers 411
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 411
• Built in features 412
• Cut sheet feeders 7339 single bin 7346 double bin tractor 7311 pull interfaces 8143 8148 8165 8641 8642 ribbons 7753 fabric 7768 film font cartridge 7407 412
• F 36 feature summary 412
• Lq 850 dip switch settings 412
• Lq 850 year introduced 1989 market europe pacific 412
• Options with model numbers 412
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 412
• Built in features 413
• Cut sheet feeders c806141 single bin c806151 double bin tractor c800071 pull interfaces 8143 8148 8165 8641 8642 ribbons 7762 fabric 7764 film 7763 color font cartridge 7407 413
• Feature summary f 37 413
• Lq 860 dip switch settings 413
• Lq 860 year introduced 1989 market america europe pacific 413
• Options with model numbers 413
• Print method 24 pin impact speed lq 75 cps 10 cpi 90 cps 12 cpi draft 225 cps 10 cpi 270 cps 12 cpi high speed draft 300 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 413
• Built in features 414
• Cut sheet feeders single bin c806141 europe c806271 america double bin c806151 europe c806281 america tractors pull c800071 europe c800161 america interfaces 8143 8148 8165 8641 8642 ribbons 7762 fabric 7764 film 7763 color font cartridge 7407 414
• F 38 feature summary 414
• Lq 860 dip switch settings 414
• Lq 860 year introduced 1990 market america europe pacific 414
• Options with model numbers 414
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 414
• Built in features 415
• Cut sheet feeders c806141 single bin c806151 double bin tractor c800071 pull interfaces 8143 8148 8165 8641 8642 ribbons 7762 fabric 7764 film 7763 color font cartridge 7407 415
• Feature summary f 39 415
• Lq 860 dip switch settings 415
• Lq 860 year introduced 1990 market pacific 415
• Options with model numbers 415
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 415
• Built in features 416
• Cut sheet feeders c80637 c80638 single bin tractor c80020 pull interfaces c82305 c82306 c80637 c82308 ribbons 7753 fabric 7768 film the last digit of the option model numbers shown above as an asterisk varies by country 416
• Esc p 2 416
• F 40 feature summary 416
• Lq 870 dip switch settings 416
• Lq 870 year introduced 1991 market america europe pacific 416
• Options with model numbers 416
• Print method 24 pin impact speed lq 92 cps 10 cpi 110 cps 12 cpi draft 275 cps 10 cpi 330 cps 12 cpi high speed draft 300 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 64kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c 416
• Built in features 417
• Cut sheet feeders 7345 single bin 7347 double bin tractor 7313 pull interfaces 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m ribbons 7753 fabric 7768 film font cartridge 7407 417
• Feature summary f 41 417
• Lq 950 dip switch settings 417
• Lq 950 year introduced 1988 market america 417
• Options with model numbers 417
• Print method 24 pin impact speed lq 73 cps 10 cpi 88 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi print width 11 inches paper types continuous single sheets envelopes multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 417
• Built in features 418
• Cut sheet feeders 7334 single bin 8348 double bin tractor 7304 pull interfaces 8148 8165 8172 ribbons n a font cartridges 7400 7401 7402 7403 418
• F 42 feature summary 418
• Lq 1000 dip switch settings 418
• Lq 1000 year introduced 1985 market america europe pacific 418
• Options with model numbers 418
• Print method 24 pin impact speed lq 60 cps 10 cpi draft 180 cps 10 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 1 copy paper paths rear top paper parking not available buffer size 7kb or 1kb interfaces parallel serial fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 418
• Built in features 419
• Cut sheet feeder c80624 single bin tractor c800142 pull interfaces 8143 8148 8165 8641 8642 8172 ribbons 7754 fabric 7770 film font cartridge 7407 the last digit of the option model numbers shown above as an asterisk varies by country 419
• Feature summary f 43 419
• Lq 1010 dip switch settings 419
• Lq 1010 year introduced 1989 market america europe pacific 419
• Options with model numbers 419
• Print method 24 pin impact speed lq 50 cps 10 cpi 60 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif 419
• Built in features 420
• Cut sheet feeder c806242 single bin tractor c800142 pull interfaces 8143 8148 8165 c823032 c823021 ribbons 7754 fabric 7770 film 420
• F 44 feature summary 420
• Lq 1010 dip switch settings 420
• Lq 1010 year introduced 1991 market america 420
• Options with model numbers 420
• Print method 24 pin impact speed lq 53 cps 10 cpi 64 cps 12 cpi draft 160 cps 10 cpi 192 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 8kb or 1kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 420
• Built in features 421
• Cut sheet feeders 7340 single bin 7348 double bin tractor 7312 pull interfaces 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m ribbons 7754 fabric 7770 film font cartridge 7407 421
• Feature summary f 45 421
• Lq 1050 dip switch settings 421
• Lq 1050 year introduced 1988 market america europe pacific 421
• Options with model numbers 421
• Print method 24 pin impact speed lq 73 cps 10 cpi 88 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 421
• Built in features 422
• Cut sheet feeders 7340 single bin 7348 double bin tractor 7312 pull interfaces 8143 8148 8165 8641 8642 ribbons 7754 fabric 7770 film font cartridge 7407 built in from 1991 on discontinued from 1991 on 422
• F 46 feature summary 422
• Lq 1050 dip switch settings 422
• Lq 1050 year introduced 1990 market america 422
• Options with model numbers 422
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif courier prestige script ocr b ocr a orator orator s 422
• Built in features 423
• Cut sheet feeders 7340 single bin 7348 double bin tractor 7312 pull interfaces 8143 8148 8165 8641 8642 ribbons 7754 fabric 7770 film font cartridge 7407 423
• Feature summary f 47 423
• Lq 1050 dip switch settings 423
• Lq 1050 year introduced 1989 market europe pacific 423
• Options with model numbers 423
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 423
• Built in features 424
• Cut sheet feeders c806181 single bin c806191 double bin tractor c800101 pull interfaces 8143 8148 8165 8641 8642 ribbons 7762 fabric 7764 film 7763 color font cartridge 7407 424
• F 48 feature summary 424
• Lq 1060 dip switch settings 424
• Lq 1060 year introduced 1989 market europe pacific 424
• Options with model numbers 424
• Print method 24 pin impact speed lq 75 cps 10 cpi 90 cps 12 cpi draft 225 cps 10 cpi 270 cps 12 cpi high speed draft 300 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 424
• Built in features 425
• Cut sheet feeders c806181 single bin c806191 double bin tractor c800101 pull interfaces 8143 8148 8165 8641 8642 ribbons 7762 fabric 7764 film 7763 color font cartridge 7407 425
• Feature summary f 49 425
• Lq 1060 dip switch settings 425
• Lq 1060 year introduced 1990 market europe 425
• Options with model numbers 425
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 425
• Built in features 426
• Cut sheet feeders c806181 single bin c806191 double bin tractor c800101 pull interfaces 8143 8148 8165 8641 8642 ribbons 7762 fabric 7764 film 7763 color font cartridge 7407 426
• F 50 feature summary 426
• Lq 1060 dip switch settings 426
• Lq 1060 year introduced 1990 market pacific 426
• Options with model numbers 426
• Print method 24 pin impact speed lq 82 cps 10 cpi 98 cps 12 cpi draft 246 cps 10 cpi 295 cps 12 cpi high speed draft 300 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 6kb interfaces parallel serial fonts typefaces roman sans serif 426
• Built in features 427
• Cut sheet feeders c80639 c80640 single bin tractor c80022 pull interfaces c82305 c82306 c82307 c82308 ribbons 7754 fabric 7770 film the last digit of the option model numbers shown above as an asterisk varies by country 427
• Esc p 2 427
• Feature summary f 51 427
• Lq 1070 dip switch setting 427
• Lq 1070 year introduced 1991 market america europe pacific 427
• Options with model numbers 427
• Print method 24 pin impact speed lq 70 cps 10 cpi 84 cps 12 cpi draft 210 cps 10 cpi 252 cps 12 cpi high speed draft 225 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c 427
• Built in features 428
• Cut sheet feeders c80639 single bin c80640 high capacity tractor c80022 pull interfaces c82305 c82306 c82307 c82308 c82310 c82311 c82313 ribbons 7754 fabric 7770 film the last digit of the option model numbers shown above as an asterisk varies by country 428
• Dip switch 1 6 functions only on the european version of this printer 428
• Esc p 2 428
• F 52 feature summary 428
• Lq 1070 dip switch setting 428
• Lq 1070 year introduced 1993 market america europe pacific 428
• Options with model numbers 428
• Print method 24 pin impact speed lq 75 cps 10 cpi 90 cps 12 cpi draft 225 cps 10 cpi 269 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 0 8kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c roman t sans serif h nonprintable area 5 mm at the top of single sheets 428
• These character tables are not available on the european version these character tables are available only on the european version 428
• Dip switch settings for ibm emulation mode 429
• Feature summary f 53 429
• With dip switch 1 8 on esc 3 esc a esc j and esc function the same as in esc p 429
• Built in features 430
• Cut sheet feeders c80639 c80640 single bin tractor c80021 pull interfaces c82305 c82306 c82307 c82308 ribbons 7754 fabric 7770 film the last digit of the option model numbers shown above as an asterisk varies by country 430
• Esc p 2 430
• F 54 feature summary 430
• Lq 1170 dip switch setting 430
• Lq 1170 year introduced 1991 market america europe pacific 430
• Options with model numbers 430
• Print method 24 pin impact speed lq 73 cps 10 cpi 88 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi high speed draft 300 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 3 copies paper paths rear top bottom front tractors push pull paper parking available buffer size 64kb interface parallel fonts typefaces roman sans serif courier prestige script ocr b orator orator s script c 430
• Built in features 431
• Cut sheet feeder 8344 double bin tractor 8303 pull interfaces 8148 8165 8172 ribbon 8753 fabric 431
• Feature summary f 55 431
• Lq 1500 dip switch settings 431
• Lq 1500 year introduced 1983 market america europe pacific 431
• Options with model numbers 431
• Print method 24 pin impact speed lq 67 cps 10 cpi draft 200 cps 10 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top paper parking not available buffer size 2kb interface parallel font typeface roman nonprintable area 22 mm at the top of single sheets 431
• Built in features 432
• Lq 2070 default setting mode 432
• Lq 2070 year introduced 1995 market europe pacific 432
• Options with model numbers 432
• Built in features 433
• Lq 2170 default setting mode 433
• Lq 2170 year introduced 1995 market america europe pacific 433
• Options with model numbers 433
• Built in features 434
• Lq 2500 year introduced 1988 market america europe pacific 434
• Note the lq 2500 has no dip switches 434
• Options with model numbers 434
• Built in features 435
• Lq 2500 year introduced 1987 market europe 435
• Note the lq 2500 has no dip switches 435
• Options with model numbers 435
• Built in features 436
• Lq 2550 year introduced 1988 market america europe pacific 436
• Note the lq 2550 has no dip switches 436
• Options with model numbers 436
• Built in features 437
• Feature summary f 61 437
• Options with model numbers 437
• P 80x dip switch settings 437
• P 80x year introduced 1986 market america europe pacific 437
• Print method 24 element thermal print width 8 inches paper types single sheets roll paper thermal paper path top paper parking not available interface serial 6 pin din connector font typeface roman nonprintable area 22 mm at the top of single sheets 437
• Ribbons 8760 film thermal 437
• Built in features 438
• Note the sq 850 has no dip switches 438
• Options with model numbers 438
• Sq 850 year introduced 1988 market europe pacific 438
• Built in features 439
• Note the sq 850 has no dip switches 439
• Options with model numbers 439
• Sq 850 year introduced 1989 market europe pacific 439
• Built in features 440
• Cut sheet feeders c806481 single bin c806372 high capacity tractor c800241 pull roll paper holder n a interfaces c823061 c823081 c823102 c823132 ink cartridge s020010 440
• Esc p 2 440
• F 64 feature summary 440
• Options with model numbers 440
• Print method 48 nozzle ink jet speed lq 200 cps 10 cpi 240 cps 12 cpi draft 550 cps 10 cpi 660 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes labels roll paper paper paths rear top front tractor push paper parking available buffer size 16kb or 128kb interface parallel fonts typefaces roman sans serif courier prestige script orator orator s script c 440
• Sq 870 dip switch settings 440
• Sq 870 year introduced 1991 market europe pacific 440
• Built in features 441
• Cut sheet feeders c806471 single bin c806392 high capacity tractor c800231 pull roll paper holder n a interfaces c823061 c823081 c823132 c823132 ink cartridge s020010 441
• Esc p 2 441
• Feature summary f 65 441
• Options with model numbers 441
• Print method 48 nozzle ink jet speed lq 200 cps 10 cpi 240 cps 12 cpi draft 550 cps 10 cpi 660 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels roll paper paper paths rear top front tractor push paper parking available buffer size 16kb or 128kb interface parallel fonts typefaces roman sans serif courier prestige script orator orator s script c 441
• Sq 1170 dip switch settings 441
• Sq 1170 year introduced 1991 market europe pacific 441
• Built in features 442
• Cut sheet feeders 8335 single bin 8345 double bin tractor 8302 pull interfaces 8148 8165 8172 ink cartridge 7750 442
• F 66 feature summary 442
• Options with model numbers 442
• Print method 24 nozzle ink jet speed lq 105 cps 10 cpi 105 cps 12 cpi draft 176 cps 10 cpi 211 cps 12 cpi print width 13 inches paper types continuous single sheets paper paths rear top paper parking not available interface parallel fonts typefaces n a nonprintable area 22 mm at the top of single sheets 442
• Sq 2000 dip switch settings 442
• Sq 2000 year introduced 1985 market america europe pacific 442
• Built in features 443
• Note the sq 2500 has no dip switches 443
• Options with model numbers 443
• Sq 2500 year introduced 1987 market europe pacific 443
• Built in features 444
• Note the sq 2550 has no dip switches 444
• Options with model numbers 444
• Sq 2550 year introduced 1988 market europe pacific 444
• Built in features 445
• Note the sq 2550 has no dip switches 445
• Options with model numbers 445
• Sq 2550 year introduced 1989 market europe pacific 445
• Built in features 446
• Options with model numbers 446
• Stylus 300 default setting mode 446
• Stylus 300 year introduced 1993 market america europe pacific 446
• Built in features 447
• Options with model numbers 447
• Stylus 400 default setting mode 447
• Stylus 400 year introduced 1994 market america europe pacific 447
• Built in features 448
• Options with model numbers 448
• Stylus 800 default setting mode 448
• Stylus 800 year introduced 1993 market america europe pacific 448
• Built in features 449
• Options with model numbers 449
• Stylus 800 default setting mode 449
• Stylus 800 year introduced 1994 market america europe pacific 449
• Built in features 450
• Options with model numbers 450
• Stylus 1000 default setting mode 450
• Stylus 1000 year introduced 1993 market america europe pacific 450
• Built in features 451
• Options with model numbers 451
• Stylus color default setting mode 451
• Stylus color year introduced 1994 market america europe pacific 451
• Built in features 452
• Note the tlq 4800 has no dip switches 452
• Options with model numbers 452
• Tlq 4800 year introduced 1988 market europe pacific 452
• Built in features 453
• Note the tlq 4800 has no dip switches 453
• Options with model numbers 453
• Tsq 4800 year introduced 1989 market europe pacific 453
• Actionprinter apex 80 dip switch settings 454
• Actionprinter apex 80 year introduced 1988 market america 454
• Built in features 454
• Cut sheet feeder 7341 single bin roll paper holder 8310 interfaces 8143 8148 8165 8172 ribbon 8750 fabric 454
• Options with model numbers 454
• Pin printers 454
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets envelopes roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 454
• Actionprinter t 750 dip switch settings 455
• Actionprinter t 750 year introduced 1988 market america 455
• Built in features 455
• Cut sheet feeder 8348 single bin interfaces 8148 8165 8172 ribbon 8755 m fabric 455
• Feature summary f 79 455
• Options with model numbers 455
• Print method 9 pin impact speed nlq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 455
• Actionprinter t 1000 dip switch settings 456
• Actionprinter t 1000 year introduced 1989 market america 456
• Built in features 456
• Cut sheet feeder 7341 single bin roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 456
• F 80 feature summary 456
• Options with model numbers 456
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 456
• Actionprinter 2000 dip switch settings 457
• Actionprinter 2000 year introduced 1990 market america 457
• Built in features 457
• Cut sheet feeder c806121 single bin tractor c800061 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 457
• Feature summary f 81 457
• Options with model numbers 457
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels roll paper multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel fonts typefaces roman sans serif 457
• Actionprinter 2250 default setting mode 458
• Actionprinter 2250 year introduced 1992 market europe pacific 458
• Built in features 458
• Options with model numbers 458
• Actionprinter 2500 dip switch settings 459
• Actionprinter 2500 year introduced 1990 market america 459
• Built in features 459
• Cut sheet feeder c806242 single bin tractor c800142 pull interfaces 8143 8148 8165 ribbon 8755 fabric 459
• Feature summary f 83 459
• Options with model numbers 459
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel fonts typefaces roman sans serif 459
• Built in features 460
• Dfx 5000 dip switch settings 460
• Dfx 5000 year introduced 1988 market america europe pacific 460
• F 84 feature summary 460
• Options with model numbers 460
• Print method 9 pin impact speed nlq 80 cps 10 cpi 96 cps 12 cpi draft 400 cps 10 cpi 480 cps 12 cpi high speed draft 533 cps 10 cpi print width 13 inches paper types continuous labels multipart forms front tractor original plus 5 copies rear tractor original plus 3 copies paper paths rear front tractors push front and rear paper parking available buffer size 3kb interfaces parallel serial fonts typefaces roman sans serif 460
• Tractor 8309 pull interfaces 8133w 8143 8145 8148 8149 8149m 8165 8641 8642 ribbon 8766 fabric 460
• Built in features 461
• Dfx 5000 dip switch settings 461
• Dfx 5000 year introduced 1993 market america europe pacific 461
• Feature summary f 85 461
• Options with model numbers 461
• Print method 9 pin impact speed nlq 84 cps 10 cpi 101 cps 12 cpi draft 420 cps 10 cpi 504 cps 12 cpi high speed draft 560 cps 10 cpi print width 13 inches paper types continuous labels multipart forms front tractor original plus 5 copies rear tractor original plus 3 copies paper paths rear front tractors push front and rear paper parking available buffer size 20kb 0kb interfaces parallel serial fonts typefaces roman sans serif 461
• This setting is available only in ibm mode 461
• Tractor 8309 pull interfaces c82305 c82306 c82307 c82308 c82310 c82312 c82313 c82314 c82315 c82324 ribbon 8766 fabric the last digit of the option number shown above as an asterisk varies by country not all interfaces are available in all countries 461
• Dfx 5000 dip switch settings continued 462
• F 86 feature summary 462
• Table a epson esc p mode only 462
• Table b ibm proprinter emulation mode 462
• Built in features 463
• Dfx 8000 dip switch settings 463
• Dfx 8000 year introduced 1989 market america europe pacific 463
• Feature summary f 87 463
• Options with model numbers 463
• Print method 9 pin impact speed nlq 160 cps 10 cpi 192 cps 12 cpi draft 800 cps 10 cpi 960 cps 12 cpi high speed draft 1066 cps 10 cpi print width 13 inches paper types continuous labels multipart forms front tractor original plus 5 copies rear tractor original plus 3 copies paper paths rear front tractors push front and rear paper parking available buffer size 3kb interface parallel fonts typefaces roman sans serif 463
• Tractor 8309 pull paper cutter c81500 interfaces 8143 8148 8165 8641 8142 ribbon 8766 fabric the last digit of the option model number shown above as an asterisk varies by country 463
• Built in features 464
• Cut sheet feeder 8342 single bin tractor 8307 pull roll paper holder 8310 interfaces 8131 8132 w 8133 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m color kits 8391 8391p scanner kit 8392 ribbons 8763 fabric 8764 color 464
• Ex 800 dip switch settings 464
• Ex 800 year introduced 1987 market america europe pacific 464
• F 88 feature summary 464
• Options with model numbers 464
• Print method 9 pin impact speed nlq 50 cps 10 cpi 60 cps 12 cpi draft 250 cps 10 cpi 300 cps 12 cpi print width 8 inches paper types continuous single sheets labels roll paper multipart forms original plus 2 copies paper paths rear top tractor push paper parking not available buffer size 8kb interfaces parallel serial fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 464
• Built in features 465
• Cut sheet feeders 8343 single bin 8346 double bin tractor 8308 pull interfaces 8131 8132 w 8133 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m color kits 8391 8391p scanner kit 8392 ribbons 8763 fabric 8764 color 465
• Ex 1000 dip switch settings 465
• Ex 1000 year introduced 1987 market america europe pacific 465
• Feature summary f 89 465
• Options with model numbers 465
• Print method 9 pin impact speed nlq 50 cps 10 cpi 60 cps 12 cpi draft 250 cps 10 cpi 300 cps 12 cpi print width 13 inches paper types continuous single sheets labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking not available buffer size 8kb interfaces parallel serial fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 465
• Built in features 466
• Cut sheet feeder 8331 single bin tractor 8300 pull roll paper holder 8310 interfaces 8143 8165 8172 ribbon 8750 fabric 466
• F 90 feature summary 466
• Fx 80 dip switch settings 466
• Fx 80 year introduced 1983 market america europe pacific 466
• Options with model numbers 466
• Print method 9 pin impact speed draft 160 cps 10 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top paper parking not available buffer size 2kb interface parallel nonprintable area 22 mm at the top of single sheets 466
• Built in features 467
• Cut sheet feeder 8331 single bin tractor 8300 pull roll paper holder 8310 interfaces 8120 8131 8132 8143 8145 8148 8149 8161 8165 8171 8172 8190 ribbon 8750 fabric 467
• Feature summary f 91 467
• Fx 80 dip switch settings 467
• Fx 80 year introduced 1984 market america europe pacific 467
• Options with model numbers 467
• Print method 9 pin impact speed draft 160 cps 10 cpi 96 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top paper parking not available buffer size 2kb interface parallel nonprintable area 22 mm at the top of single sheets 467
• Built in features 468
• Cut sheet feeder 8331 single bin tractor 8300 pull roll paper holder 8310 interfaces 8120 8131 8132 8132 w 8133 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m ribbon 8750 fabric 468
• F 92 feature summary 468
• Fx 85 dip switch settings 468
• Fx 85 year introduced 1985 market america europe pacific 468
• Options with model numbers 468
• Print method 9 pin impact speed draft 160 cps 10 cpi 96 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top paper parking not available buffer size 8kb interface parallel font typeface roman nonprintable area 22 mm at the top of single sheets 468
• Built in features 469
• Cut sheet feeder 8348 single bin tractor 8307 pull interfaces 8148 8172 ribbon 8755 m fabric 469
• Feature summary f 93 469
• Fx 86e dip switch settings 469
• Fx 86e year introduced 1987 market america 469
• Options with model numbers 469
• Print method 9 pin impact speed nlq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 469
• Built in features 470
• Cut sheet feeder 8334 single bin tractor 8301 pull interfaces 8145 8172 ribbon 8755 fabric 470
• F 94 feature summary 470
• Fx 100 dip switch settings 470
• Fx 100 year introduced 1983 market america europe pacific 470
• Options with model numbers 470
• Print method 9 pin impact speed draft 160 cps 10 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top paper parking not available buffer size 2kb interface parallel nonprintable area 22 mm at the top of single sheets 470
• Built in features 471
• Cut sheet feeder 8333 single bin interfaces 8120 8131 8132 8143 8145 8148 8149 8161 8165 8171 8172 8190 ribbon 8755 fabric 471
• Feature summary f 95 471
• Fx 100 dip switch settings 471
• Fx 100 year introduced 1984 market america europe pacific 471
• Options with model numbers 471
• Print method 9 pin impact speed draft 160 cps 10 cpi 96 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 2kb interface parallel nonprintable area 22 mm at the top of single sheets 471
• Built in features 472
• Cut sheet feeder 8334 single bin interfaces 8120 8131 8132 8132 w 8133 8143 8145 8148 8149 8149 m 8161 8165 8172 8172 m ribbon 8755 fabric 472
• F 96 feature summary 472
• Fx 185 dip switch settings 472
• Fx 185 year introduced 1985 market america europe pacific 472
• Options with model numbers 472
• Print method 9 pin impact speed nlq 32 cps 10 cpi draft 160 cps 10 cpi 96 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 8kb interface parallel font typeface roman nonprintable area 22 mm at the top of single sheets 472
• Built in features 473
• Cut sheet feeder 8334 single bin interfaces 8148 8165 8172 ribbon 8755 fabric 473
• Feature summary f 97 473
• Fx 286 dip switch settings 473
• Fx 286 year introduced 1985 market america europe pacific 473
• Options with model numbers 473
• Print method 9 pin impact speed nlq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 13 inches paper types continuous single sheets labels multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 8kb interface parallel font typeface roman nonprintable area 22 mm at the top of single sheets 473
• Built in features 474
• Cut sheet feeder 8348 single bin tractor 8308 pull interfaces 8148 8165 8172 ribbon 8755 m fabric 474
• F 98 feature summary 474
• Fx 286e dip switch settings 474
• Fx 286e year introduced 1987 market america 474
• Options with model numbers 474
• Print method 9 pin impact speed lq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 474
• Built in features 475
• Cut sheet feeder 8348 single bin interfaces 8148 8165 8172 ribbon 8755 m fabric 475
• Feature summary f 99 475
• Fx 800 dip switch settings 475
• Fx 800 year introduced 1987 market europe pacific 475
• Options with model numbers 475
• Print method 9 pin impact speed nlq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 475
• Built in features 476
• Cut sheet feeder 7339 single bin tractor 7311 pull roll paper holder 8310 interfaces 8133 w 8143 8145 8148 8149 8149m 8165 8172 ribbon 8750 fabric 476
• F 100 feature summary 476
• Fx 850 dip switch settings 476
• Fx 850 year introduced 1987 market america europe pacific 476
• Options with model numbers 476
• Print method 9 pin impact speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 8kb interfaces parallel serial fonts typefaces roman sans serif 476
• Built in features 477
• Cut sheet feeders 7339 single bin 7346 double bin tractor 7311 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 477
• Feature summary f 101 477
• Fx 850 dip switch settings 477
• Fx 850 year introduced 1989 market america europe pacific 477
• Options with model numbers 477
• Print method 9 pin impact speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi high speed draft 290 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif 477
• Built in features 478
• Cut sheet feeders 7339 single bin 7346 double bin tractor 7311 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 478
• F 102 feature summary 478
• Fx 850 dip switch settings 478
• Fx 850 year introduced 1991 market america europe pacific 478
• Options with model numbers 478
• Print method 9 pin impact speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi high speed draft 290 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif 478
• Built in features 479
• Fx 870 settings 479
• Fx 870 year introduced 1992 market america europe pacific 479
• Options with model numbers 479
• Built in features 480
• Cut sheet feeder 8348 single bin interfaces 8148 8165 8172 ribbon 8755 m fabric 480
• F 104 feature summary 480
• Fx 1000 dip switch settings 480
• Fx 1000 year introduced 1987 market europe pacific 480
• Options with model numbers 480
• Print method 9 pin impact speed nlq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractors pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 480
• Built in features 481
• Cut sheet feeder 7340 single bin tractor 7312 pull interfaces 8133 w 8143 8145 8148 8149 8149m 8165 8172 ribbon 8755 fabric 481
• Feature summary f 105 481
• Fx 1050 dip switch settings 481
• Fx 1050 year introduced 1987 market america europe pacific 481
• Options with model numbers 481
• Print method 9 pin impact speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 481
• Built in features 482
• Cut sheet feeders 7340 single bin 7348 double bin tractor 7312 pull interfaces 8143 8148 8165 ribbon 8755 fabric 482
• F 106 feature summary 482
• Fx 1050 dip switch settings 482
• Fx 1050 year introduced 1989 market america europe pacific 482
• Options with model numbers 482
• Print method 9 pin impact speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi high speed draft 290 cps 10 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif 482
• Built in features 483
• Cut sheet feeders 7340 single bin 7348 double bin tractor 7312 pull interfaces 8143 8148 8165 ribbon 8755 fabric 483
• Feature summary f 107 483
• Fx 1050 dip switch settings 483
• Fx 1050 year introduced 1991 market america europe pacific 483
• Options with model numbers 483
• Print method 9 pin impact speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 220 cps 10 cpi 264 cps 12 cpi high speed draft 290 cps 10 cpi print width 13 inches paper types continuous single sheets multipart forms original plus 3 copies paper paths rear top tractor push paper parking available buffer size 8kb interface parallel fonts typefaces roman sans serif 483
• Built in features 484
• Fx 1170 default setting mode 484
• Fx 1170 year introduced 1992 market america europe pacific 484
• Options with model numbers 484
• Built in features 485
• Fx 2170 default setting mode 485
• Fx 2170 year introduced 1995 market america europe pacific 485
• Options with model numbers 485
• Built in features 486
• F 110 feature summary 486
• Hs 80 dip switch settings 486
• Hs 80 year introduced 1985 market america europe pacific 486
• Options with model numbers 486
• Print method 9 element ink jet print width 8 inches paper types single sheets roll paper paper paths top paper parking not available buffer size one line interface parallel font typeface roman nonprintable area 22 mm at the top of single sheets 486
• Roll paper holder n a ink cartridge n a 486
• Built in features 487
• Cut sheet feeder 8347 single bin tractor 8305 pull interfaces 8131 8132 w 8133 8143 8145 8148 8149 8149 8161 8165 8172 8172 m ink cartridge 8765 487
• Feature summary f 111 487
• Ix 800 dip switch settings 487
• Ix 800 year introduced 1986 market america europe pacific 487
• Options with model numbers 487
• Print method 9 element ink jet speed nlq 45 cps 10 cpi 54 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 8 inches paper types continuous single sheets paper paths rear top paper parking not available buffer size 8kb interfaces parallel serial fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 487
• Built in features 488
• Cut sheet feeder 8331 single bin tractor 8300 pull roll paper holder 8310 interfaces 8148 8165 8172 ribbons n a 488
• F 112 feature summary 488
• Jx 80 dip switch settings 488
• Jx 80 year introduced 1983 market america europe pacific 488
• Options with model numbers 488
• Print method 9 pin impact speed draft 160 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top paper parking not available buffer size 2kb interface parallel nonprintable area 22 mm at the top of single sheets 488
• Built in features 489
• Cut sheet feeder 8338 single bin tractor 8304 pull interfaces 8148 8165 8172 ribbon 8750 fabric 489
• Feature summary f 113 489
• Lx 80 dip switch settings 489
• Lx 80 year introduced 1984 market america europe pacific 489
• Options with model numbers 489
• Print method 9 pin impact speed nlq 16 cps 10 cpi draft 100 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 1 copy paper paths rear top paper parking not available buffer size 1kb interface parallel nonprintable area 22 mm at the top of single sheets 489
• Built in features 490
• Cut sheet feeder 8338 single bin tractor 8304 pull interfaces 8148 8165 8172 ribbon 8750 fabric 490
• F 114 feature summary 490
• Lx 86 dip switch settings 490
• Lx 86 year introduced 1986 market america europe pacific 490
• Options with model numbers 490
• Print method 9 pin impact speed nlq 22 cps 10 cpi draft 120 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 1 copies paper paths rear top paper parking not available buffer size n a interface parallel font typeface roman nonprintable area 22 mm at the top of single sheets 490
• Built in features 491
• Lx 100 default setting mode 491
• Lx 100 year introduced 1992 market europe pacific 491
• Options with model numbers 491
• Built in features 492
• Lx 300 default setting mode 492
• Lx 300 year introduced 1994 market america europe pacific 492
• Options with model numbers 492
• Built in features 493
• Cut sheet feeder 7341 single bin roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 493
• Feature summary f 117 493
• Lx 400 dip switch settings 493
• Lx 400 year introduced 1989 market america europe pacific 493
• Options with model numbers 493
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 493
• Built in features 494
• F 118 feature summary 494
• Lx 400 dip switch settings 494
• Lx 400 year introduced 1991 market america europe pacific 494
• Options with model numbers 494
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif 494
• Roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 494
• Built in features 495
• Cut sheet feeder 8349 single bin roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 495
• Feature summary f 119 495
• Lx 800 dip switch settings 495
• Lx 800 year introduced 1987 market america europe pacific 495
• Options with model numbers 495
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size 3kb interface parallel fonts typefaces roman sans serif nonprintable area 22 mm at the top of single sheets 495
• Built in features 496
• Cut sheet feeder c806121 single bin tractor c800061 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 496
• F 120 feature summary 496
• Lx 810 dip switch settings 496
• Lx 810 year introduced 1990 market america 496
• Options with model numbers 496
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels roll paper multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel font typeface roman 496
• Built in features 497
• Cut sheet feeder c806121 single bin tractor c800061 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 497
• Feature summary f 121 497
• Lx 810 dip switch settings 497
• Lx 810 year introduced 1990 market america 497
• Options with model numbers 497
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels roll paper multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel fonts typefaces roman sans serif 497
• Built in features 498
• Cut sheet feeder c806122 single bin tractor c800062 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 498
• F 122 feature summary 498
• Lx 850 dip switch settings 498
• Lx 850 year introduced 1990 market europe pacific 498
• Options with model numbers 498
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels roll paper multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel fonts typefaces roman sans serif 498
• Built in features 499
• Cut sheet feeder c806122 single bin tractor c800062 pull roll paper holder 8310 interfaces 8143 8148 8165 ribbon 8750 fabric 499
• Feature summary f 123 499
• Lx 850 dip switch settings 499
• Lx 850 year introduced 1990 market europe pacific 499
• Options with model numbers 499
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 8 inches paper types continuous single sheets envelopes labels roll paper multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel fonts typefaces roman sans serif 499
• Built in features 500
• Cut sheet feeder c806242 single bin tractor c800142 pull interfaces 8143 8148 8165 ribbon 8755 fabric 500
• F 124 feature summary 500
• Lx 1050 dip switch settings 500
• Lx 1050 year introduced 1990 market europe pacific 500
• Options with model numbers 500
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel font typeface roman 500
• Built in features 501
• Cut sheet feeder c806242 single bin tractor c800142 pull interfaces 8143 8148 8165 ribbon 8755 fabric 501
• Feature summary f 125 501
• Lx 1050 dip switch settings 501
• Lx 1050 year introduced 1990 market europe pacific 501
• Options with model numbers 501
• Print method 9 pin impact speed nlq 25 cps 10 cpi 30 cps 12 cpi draft 150 cps 10 cpi 180 cps 12 cpi high speed draft 200 cps 10 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel font typeface roman sans serif 501
• Built in features 502
• Cut sheet feeder c80624 single bin tractor c80014 pull interfaces 8143 8148 8165 ribbon 8755 fabric the last digit of the option model numbers shown above as an asterisk varies by country 502
• F 126 feature summary 502
• Lx 1050 dip switch settings 502
• Lx 1050 year introduced 1994 market europe 502
• Options with model numbers 502
• Print method 9 pin impact speed nlq 40 cps 10 cpi 48 cps 12 cpi draft 200 cps 10 cpi 240 cps 12 cpi print width 13 inches paper types continuous single sheets envelopes labels multipart forms original plus 2 copies paper paths rear top tractor push paper parking available buffer size 4kb interface parallel font typeface roman sans serif 502
• These character tables are available only on the european version 502
• This setting is available only in ibm mode 502
• Built in features 503
• Feature summary f 127 503
• Mx 80 dip switch settings 503
• Mx 80 year introduced 1980 market america europe pacific 503
• Options with model numbers 503
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper type continuous multipart forms original plus 2 copies paper path rear tractor pull paper parking available buffer size n a interface parallel 503
• Ribbon 8750 fabric 503
• This setting is available only in ibm mode 503
• Built in features 504
• F 128 feature summary 504
• Mx 80 f t dip switch settings 504
• Mx 80 f t year introduced 1980 market america europe pacific 504
• Options with model numbers 504
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size one line interface parallel nonprintable area 22 mm at the top of single sheets 504
• Ribbon 8750 fabric 504
• This setting is available only in ibm mode 504
• Built in features 505
• Feature summary f 129 505
• Mx 80 type ii dip switch settings 505
• Mx 80 type ii year introduced 1981 market europe pacific 505
• Options with model numbers 505
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous roll paper multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line interface parallel 505
• Roll paper holder n a ribbon 8750 fabric 505
• Built in features 506
• F 130 feature summary 506
• Mx 80 f t ftype ii dip switch settings 506
• Mx 80 f t type ii year introduced 1981 market europe pacific 506
• Options with model numbers 506
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper path rear top tractor pull paper parking not available buffer size one line interface parallel nonprintable area 22 mm at the top of single sheets 506
• Roll paper holder n a ribbon 8750 fabric 506
• Built in features 507
• Feature summary f 131 507
• Mx 80 type iii dip switch settings 507
• Mx 80 type iii year introduced 1982 market america europe pacific 507
• Options with model numbers 507
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous roll paper multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line interface parallel 507
• Roll paper holder n a interface 8143 ribbon 8750 fabric 507
• Built in features 508
• F 132 feature summary 508
• Mx 80 f t type iii dip switch settings 508
• Mx 80 f t type iii year introduced 1982 market america europe pacific 508
• Options with model numbers 508
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size one line interface parallel nonprintable area 22 mm at the top of single sheets 508
• Roll paper holder n a interface 8143 ribbon 8750 fabric 508
• Built in features 509
• Feature summary f 133 509
• Mx 82 dip switch setting 509
• Mx 82 year introduced 1981 market europe pacific 509
• Options with model numbers 509
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size one line interface parallel 509
• Roll paper holder n a ribbon 8750 fabric 509
• Built in features 510
• F 134 feature summary 510
• Mx 82 f t type iii dip switch settings 510
• Mx 82 f t type iii year introduced 1982 market europe pacific 510
• Options with model numbers 510
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 8 inches paper types continuous single sheets roll paper multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size one line interface parallel nonprintable area 22 mm at the top of single sheets 510
• Roll paper holder n a ribbon 8750 fabric 510
• Built in features 511
• Feature summary f 135 511
• Mx 100 dip switch settings 511
• Mx 100 year introduced 1981 market america europe pacific 511
• Options with model numbers 511
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 13 inches paper type continuous multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line 511
• Ribbon 8755 fabric 511
• Built in features 512
• F 136 feature summary 512
• Interface 8143 ribbon 8755 fabric 512
• Mx 100 type iii dip switch settings 512
• Mx 100 type iii year introduced 1982 market america europe pacific 512
• Options with model numbers 512
• Print method 9 pin impact speed draft 80 cps 10 cpi print width 13 inches paper type continuous multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line interface parallel 512
• Built in features 513
• Feature summary f 137 513
• Options with model numbers 513
• P 80 dip switch settings 513
• P 80 year introduced 1985 market america europe pacific 513
• Print method 9 element thermal speed draft 80 cps 10 cpi print width 8 inches paper types single sheets roll paper thermal paper paths rear top paper parking available buffer size 240 bytes interface serial 6 pin din connector font typeface roman nonprintable area 22 mm at the top of single sheets 513
• Roll paper holder n a ribbons 8760 film thermal 513
• Built in features 514
• F 138 feature summary 514
• Options with model numbers 514
• Print method 9 pin impact speed draft 100 cps 10 cpi print width 8 inches paper type continuous multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line interface parallel 514
• Roll paper holder n a interface 8143 ribbon 8750 fabric 514
• Rx 80 dip switch settings 514
• Rx 80 year introduced 1983 market america europe pacific 514
• Built in features 515
• Feature summary f 139 515
• Interface 8143 ribbon 8750 fabric 515
• Options with model numbers 515
• Print method 9 pin impact speed draft 100 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size one line nonprintable area 22 mm at the top of single sheets 515
• Rx 80 f t dip switch settings 515
• Rx 80 f t year introduced 1983 market america europe pacific 515
• Built in features 516
• Cut sheet feeder 8330 single bin interfaces 8120 8131 8132 8143 8145 8146 8148 8149 8161 8165 8171 8172 8177 8647 ribbon 8750 fabric 516
• F 140 feature summary 516
• Options with model numbers 516
• Print method 9 pin impact speed draft 100 cps 10 cpi print width 8 inches paper types continuous single sheets multipart forms original plus 2 copies paper paths rear top tractor pull paper parking not available buffer size one line interface parallel nonprintable area 22 mm at the top of single sheets 516
• Rx 80 f t dip switch settings 516
• Rx 80 f t year introduced 1984 market america europe pacific 516
• Built in features 517
• Feature summary f 141 517
• Interface 8143 ribbon 8755 fabric 517
• Options with model numbers 517
• Print method 9 pin impact speed draft 100 cps 10 cpi print width 13 inches paper type continuous multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line interface parallel 517
• Rx 100 dip switch settings 517
• Rx 100 year introduced 1983 market america europe pacific 517
• Built in features 518
• F 142 feature summary 518
• Interfaces 8120 8131 8132 8143 8145 8146 8148 8149 8461 8165 8171 8172 8177 8647 ribbon 8755 fabric 518
• Options with model numbers 518
• Print method 9 pin impact speed draft 100 cps 10 cpi print width 13 inches paper type continuous multipart forms original plus 2 copies paper path rear tractor pull paper parking not available buffer size one line 518
• Rx 100 dip switch settings 518
• Rx 100 year introduced 1984 market america europe pacific 518
• Appendix 519
• Character tables 520
• Iso 8859 2 iso latin 2 538
• 48 pin proportional width tables 539
• For example the width of a 26 point e would be determined as follows 539
• Proportional width during multipoint mode esc p 2 only 539
• Proportional width information 539
• The base width in the above equation is the width listed for each character in the 24 48 pin proportional width tables in the next section 539
• The tables in this section list the widths for all proportional 10 point characters on 24 48 pin printers 539
• The width is calculated based on the width of proportional 10 point 10 point characters using the following formula 539
• The width of proportional characters during multipoint mode varies depending on your selected point size 539
• The widths listed are in 1 360 inch units for example the width of the letter w during proportional spacing is 42 360 inch 539
• Pin proportional width tables 544
• The tables in this section list the widths for all proportional characters on 9 pin printers 544
• The widths listed are in 1 120 inch units for example the width of an italic letter w during proportional spacing is 12 120 inch 544
• Ascii code table 548
• Codes in shaded boxes are printer control codes 548
• Epson printers feature an industry standard centronics parallel type interface the printer side of this interface utilizes a 36 pin connector the pin assignments for this connector are as follows 549
• Parallel interface 549
• Pins and signals 549
• All interface conditions are based on ttl level both the rise and the fall times of each signal must be less then 0 microseconds 550
• Data tranfer must be carried out by observing the acknlg or busy signal data transfer to this printer can be carried out only after receipt of the acknlg signal or when the level of the busy signal is low 550
• Note the values may vary from printer to printer see the user s guide of your printer 550
• Pins and signals continued 550
• Return denotes the twisted pair return to be connected at signal ground level for the interface wiring be sure to use a twisted pair cable for each signal and to complete the connection on the return side to prevent noise these cables should be shielded and connected to either the chassis of the host computer or the printer but not at both ends 550
• The column heading direction refers to the direction of signal flow as viewed from the printer 550
• 48 pin printers excluding lq 1500 sq 2000 and lq 300 and later printers 551
• Lq 1500 sq 2000 551
• Mx series printers 551
• Parallel interface timing 551
• Pin printers excluding mx series and lx 300 and later printers 551
• Lx 300 and later 9 pin printers and lq 300 and later 24 48 pin printers 552
• Parallel interface flow chart 552
• The flow chart shown below illustrates the recommended procedure for checking the status of a parallel interface 552
• Baud rate 300 19 200 bps depending on printer 553
• Connector pin assignment 553
• Data format 1 start bit data word length 8 bits odd even or no parity 1 stop bit 553
• Handshaking handshaking by dtr signal or x on x off when the number of free bytes in the input buffer drops below 256 the dtr signal changes to mark signifying the printer is not ready to receive data when the number of free bytes rises above 528 the dtr signal changes to space specifying that the printer is now ready to receive data 553
• Internal serial interface 553
• Signal level mark 1 3v to 27v space 0 3v to 27v 553
• Six pin din connector type 553
• Synchronization asynchronous 553
• Baud rate 300 19 200 bps depending on printer 554
• Connector pin assignment 554
• Data format 1 start bit data word length 7 or 8 bits odd even or no parity 1 stop bit 554
• Error handling when a parity error is detected the received byte is changed to the character code overrun errors and framing errors are ignored 554
• Etx ack nak d at the time the printer receives an etx 03h command if the available buffer space is more than 256 bytes the printer sends an ack 06h code in reply or if the available buffer space is less than 256 bytes the printer sends nak 15h and d 64h codes continuously the etx ack handshaking protocol can be enabled or disabled altering the default settings 554
• Handshaking dtr signal and xon xoff the dtr signal is mark and an xoff code dc3 13h is transmitted when the available input buffer space drops to 256 bytes the dtr signal is space and an xon dc1 11h is transmitted when the available input buffer space returns to 256 bytes 554
• Pin subminiature d shell connector female type 554
• Signal level eia 232d mark 1 3v to 25v space 0 3v to 25v 554
• Synchronization asynchronous 554
• Optional serial interface pin assignments 555
• Optional serial interfaces 555
• Several optional serial interfaces are offered for the epson printer line the pin assignments and signal direction from the printer side of the female db 25 are described in the table below 555
• Selecting preesc p 2 fonts in esc p 2 multipoint mode 556
• You can use the esc x command to select fonts identical to those available in non esc p 2 printers send the esc x parameters on the right to obtain the point and pitch sizes selected by the commands on the left 556
• Glossary 557
• Resolution 564
• Roll paper 564
• Scalable font s 564
• Single sheet paper 564
• Subscript 564
• Subtractive colors 564
• Superscript 564
• Tiff compressed mode 564
