712 English Instruction Sheet
Page
3
Getting Acquainted with the Calibrator
Press the green O pushbutton to turn the calibrator on and off.
Press the INPUT/OUTPUT pushbutton to select either INPUT
(measuring) or OUTPUT (simulating).
1
8
7
6
2
4
3
5
kg03f.eps

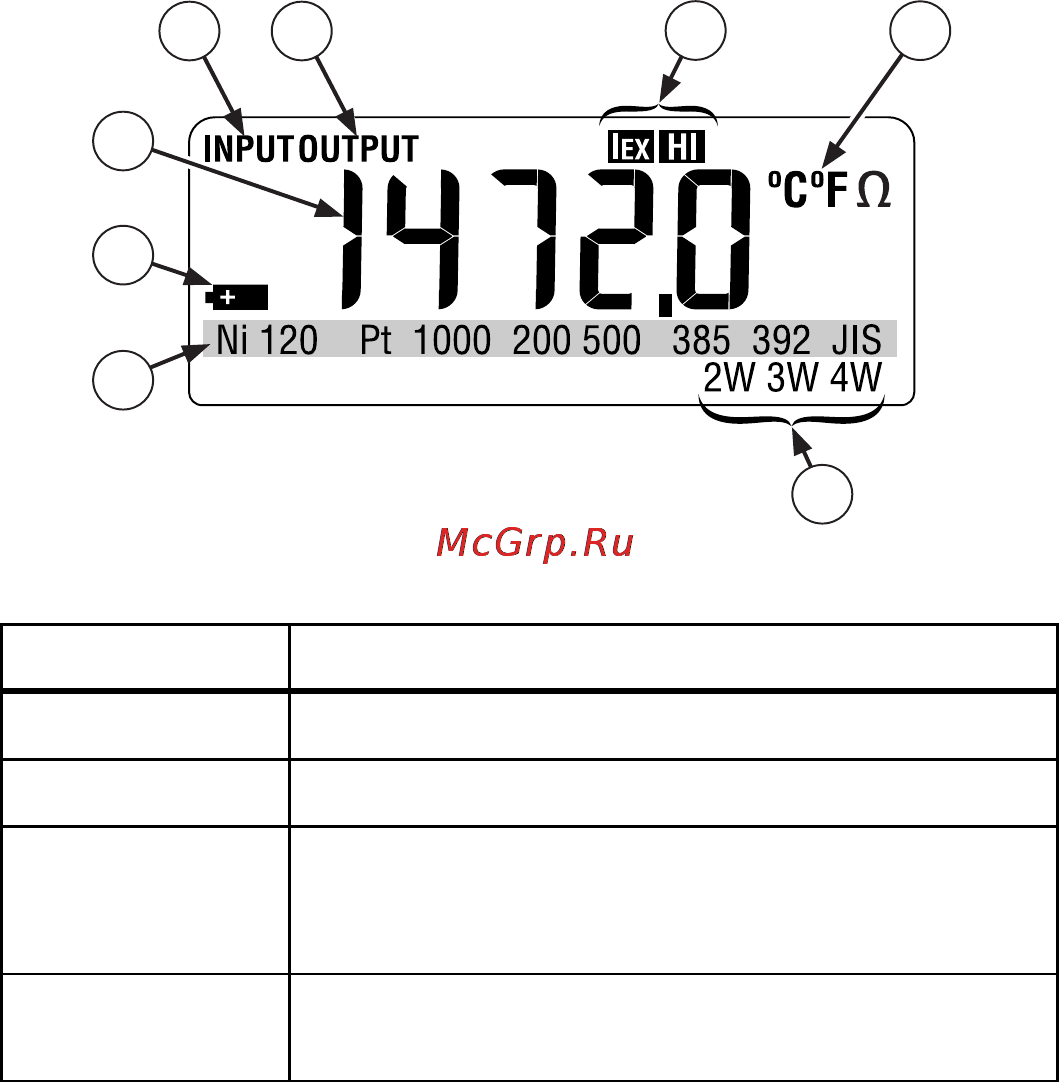

Display Elements
Element Meaning
A INPUT Lit when measuring an RTD or resistance
B OUTPUT Lit when simulating an RTD or resistance
C
i H
When simulating an RTD or ohms, the excitation
current from the measuring device under test is too
high. The calibrator output is unspecified.
D °C, °F, Ω When an RTD type is selected, one of these is lit
to show the selected scale.
