712 English Instruction Sheet
Page
6
Measuring an RTD
To measure an RTD, proceed as follows:
1. Press O to turn on the power.
2. If the calibrator is in simulate mode (OUTPUT on the
display), press INPUT OUTPUT once. Make sure the display
shows INPUT.
3. Press
R to select the desired RTD type.
4. Press
[ or { to select a two-wire, three-wire, or four-
wire RTD input configuration. Look for the 2W, 3W, or 4W
annunciator on the display to verify that the configuration is
set correctly.

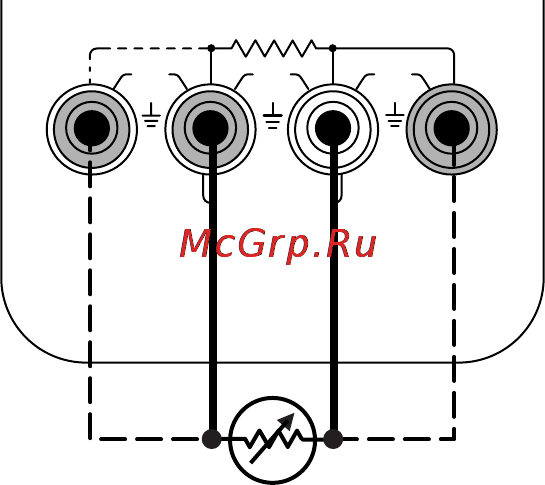

5. Connect test leads to the RTD as shown below. Use two,
three, or four inputs, depending on the setting of 2W, 3W, or
4W on the display.
NC NC
4W 3W
2W 3W 4W
OUTPUT
INPUT
30V
MAX
30V
MAX
30V
MAX
RTD
3W4W
kg02f.eps
