English
10 CC4001U

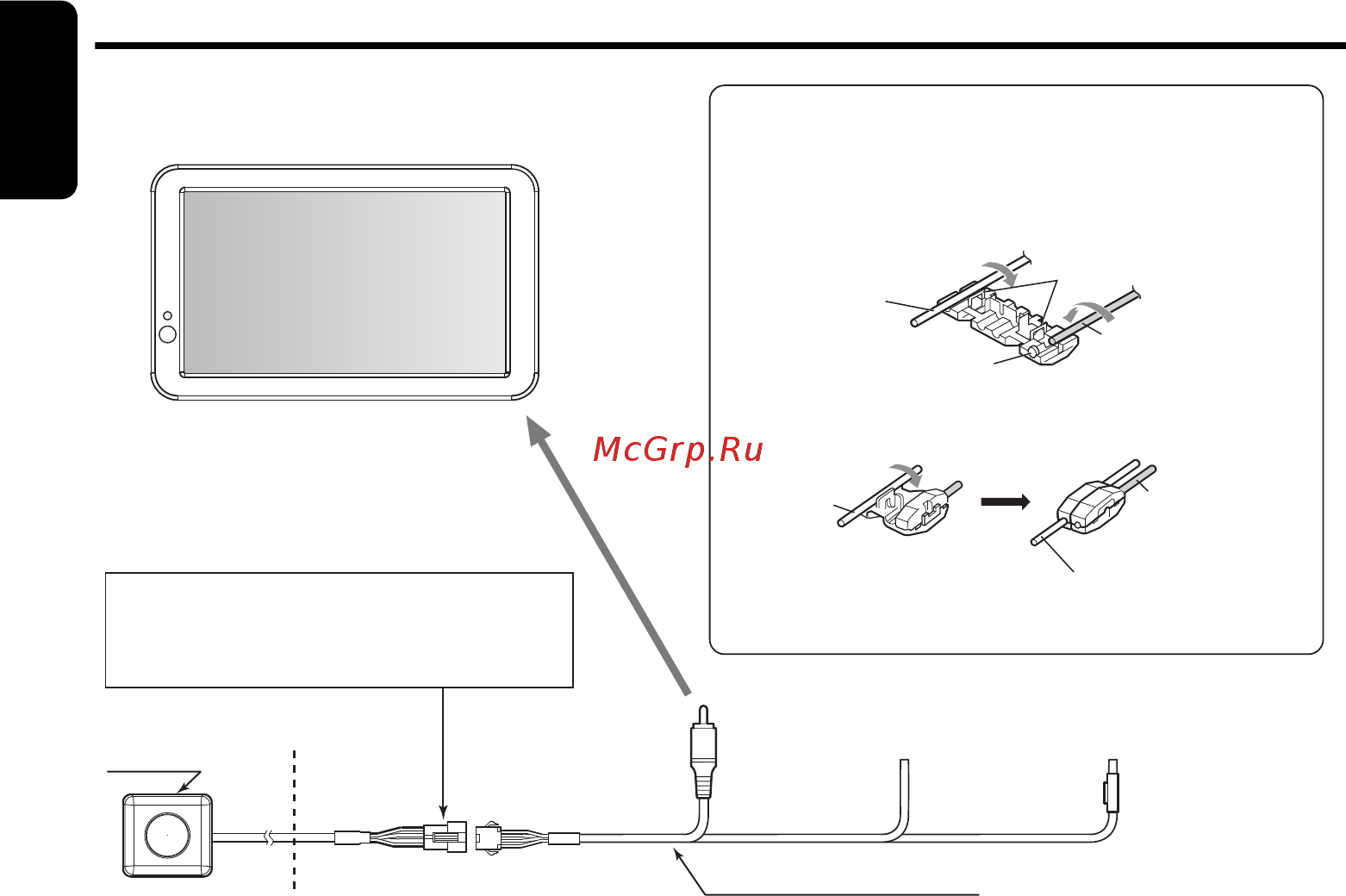

Connecting to a monitor
Note:
• See the the Instruction Manual supplied with the
monitor for information regarding wiring,
operation, and composition of the monitor unit.
The connector is not waterproof.
Always mount the connector inside the
vehicle, away from exposure to water.
Camera
(outside)
(inside)
Extension cable (7 m)
RCA pin cable
(yellow)
GND
DC+12 V (Reverse)
(Fuse 0.5 A)
Commercially available monitor
DC+12 V (Reverse gear) connection wire
Use the accessory Electro-Tap for connections.
Wire to
vehicle
Latch
Stopper
DC+12 V
(
Reverse gear)
connection wire
② Pass the vehicle wire through and fold back in
direction of arrow.
Wire to
vehicle
Wire to vehicle
DC+12 V
(Reverse gear)
connection wire
Press firmly with pliers until
the connector latch fastens
securely.
①
Place end of DC+12 V (Reverse gear) connection wire
against stopper, and fold back in direction of arrow.
CC4001U_12L_En.book 10 ページ ２０１１年１月２０日 木曜日 午前９時２５分
