Installing/Wiring the camera

■

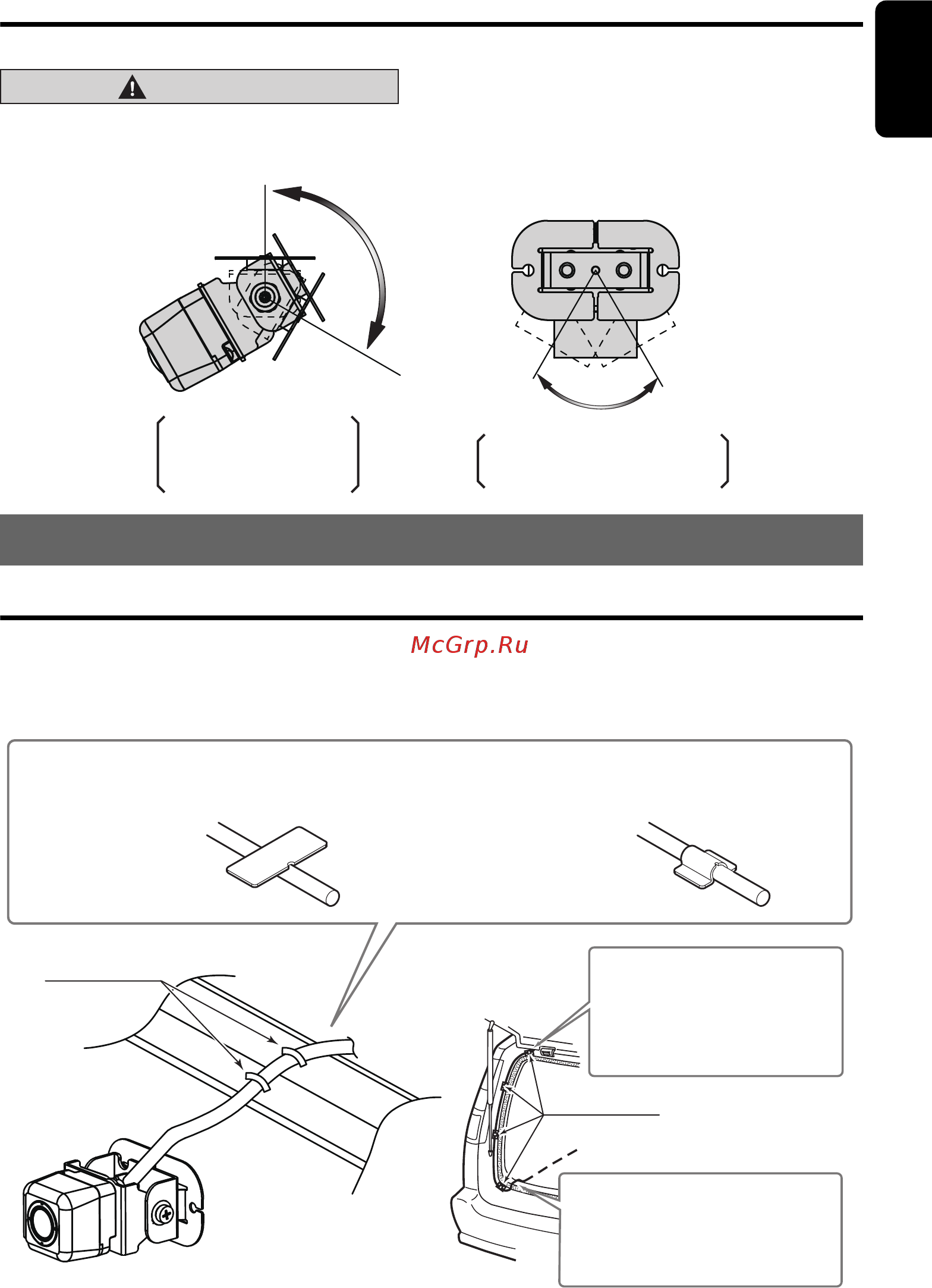

Adjusting camera angle (example)

CAUTION

When the camera angle has been changed,

the range displayed by the image on the

monitor will change. Always confirm by

direct observation when backing.

Wiring

① Lead the camera cable into the vehicle and align it along the vehicle weather stripping. Use the

supplied cable holders as necessary to fix the wires in place and prevent them from being pinched in

hinges or dampers.

② Using an optional extension cable, the camera cable can be installed under the vehicle floor (carpet).

6. WIRING

Adjust the angle of

brackets A+B as

required by the

mounting position.

Adjust horizontal angle

while confirming image on

monitor.

Applying the cable holders

Align the gap in the cable holder with the

center of the cable.

Mount the cable holder onto the vehicle body while twisting

the holder onto the cable. Use the supplied cleaner to remove

any dirt from the vehicle surface before installing.

Cable holders

Fix the cable with adequate

looseness in this area to prevent

it from being stretched or

pinched in the hinge when the

rear gate is opened and closed.

Always introduce the cable into the

vehicle from the bottom (floor) side.

Introducing the cable from the door

top or side may lead to penetration

by water.
