English
7 CC4001U
Before installation
• Before installing the camera or its wiring, read
all safety warnings and be sure to install the
unit correctly.
• Before installing the camera permanently, use
adhesive tape to mount the camera in its
proposed position, then check the image in
the monitor to confirm proper display before
fixing the camera in its final position.
WARNING
• Disconnect the battery’s negative (–)
terminal installing wiring.
Precautions when using
two-sided tape for
installation
■ Do not install on glass or body surfaces
treated with fluorinated resins or other
water-repellent treatments.
■ Do not install within the sweep of a rear-
window wiper, or near the window
washer’s nozzle.
■ Abide by the following rules in order to
prevent lowering of the installation tape’s
adhesion:
• As far as possible, install on a day with clear
weather.
• Within the first 24 hours after installation, do
not expose the installation to moisture
(water, rain, mist, snow, etc.), or subject the
installation to strong forces or impacts.
• When installation must be performed under
conditions of low ambient temperature
(20°C or below), use a hair dryer to warm
the surface of the bracket where the 2-sided
tape is to be applied.
• Do not touch the bracket-mounting surface’s
2-sided tape, and do not attempt to move or
reset the tape after initial application.
Installing/Wiring the
camera

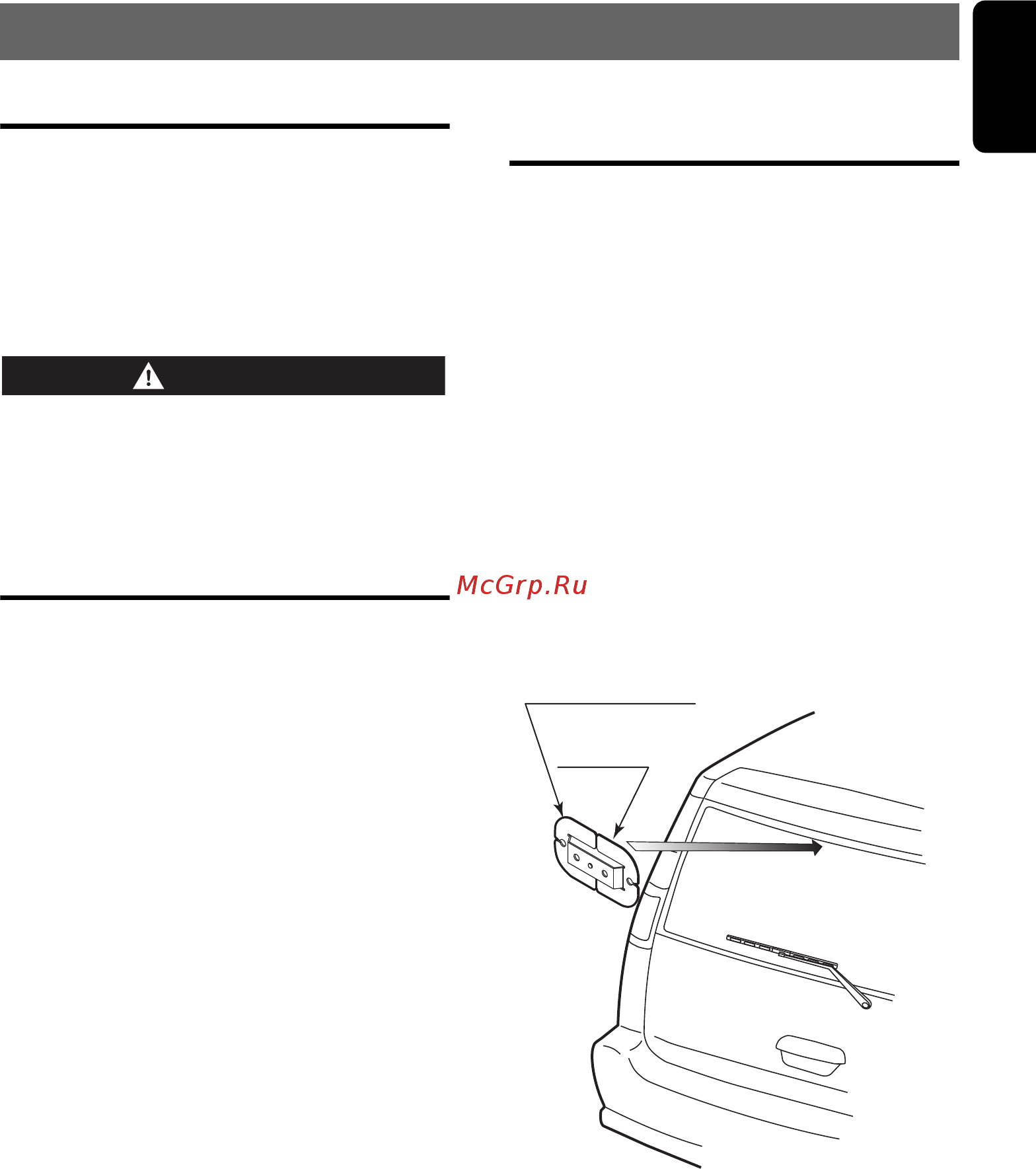

1. Installing the mounting bracket B
Use the supplied cleaner to clean the vehicle
surface to which the bracket is to be applied,
then remove the protective paper from the
mounting surface of bracket B and press
securely onto the vehicle surface.
Notes:
• Before using the supplied cleaner, read the label
on the cleaner container thoroughly.
• Do not wipe the camera body with the cleaner,
since it may be discolored or otherwise
damaged.
• Before removing the protective paper on the
bracket, place it in the proposed position on the
vehicle and confirm that the surfaces match
properly without gaps.
• When using screws to install the bracket, use the
right-left screw holes provided on bracket B.
5. INSTALLATION
Mounting bracket B
Protective
paper
