8 CC4001U
Installing/Wiring the camera

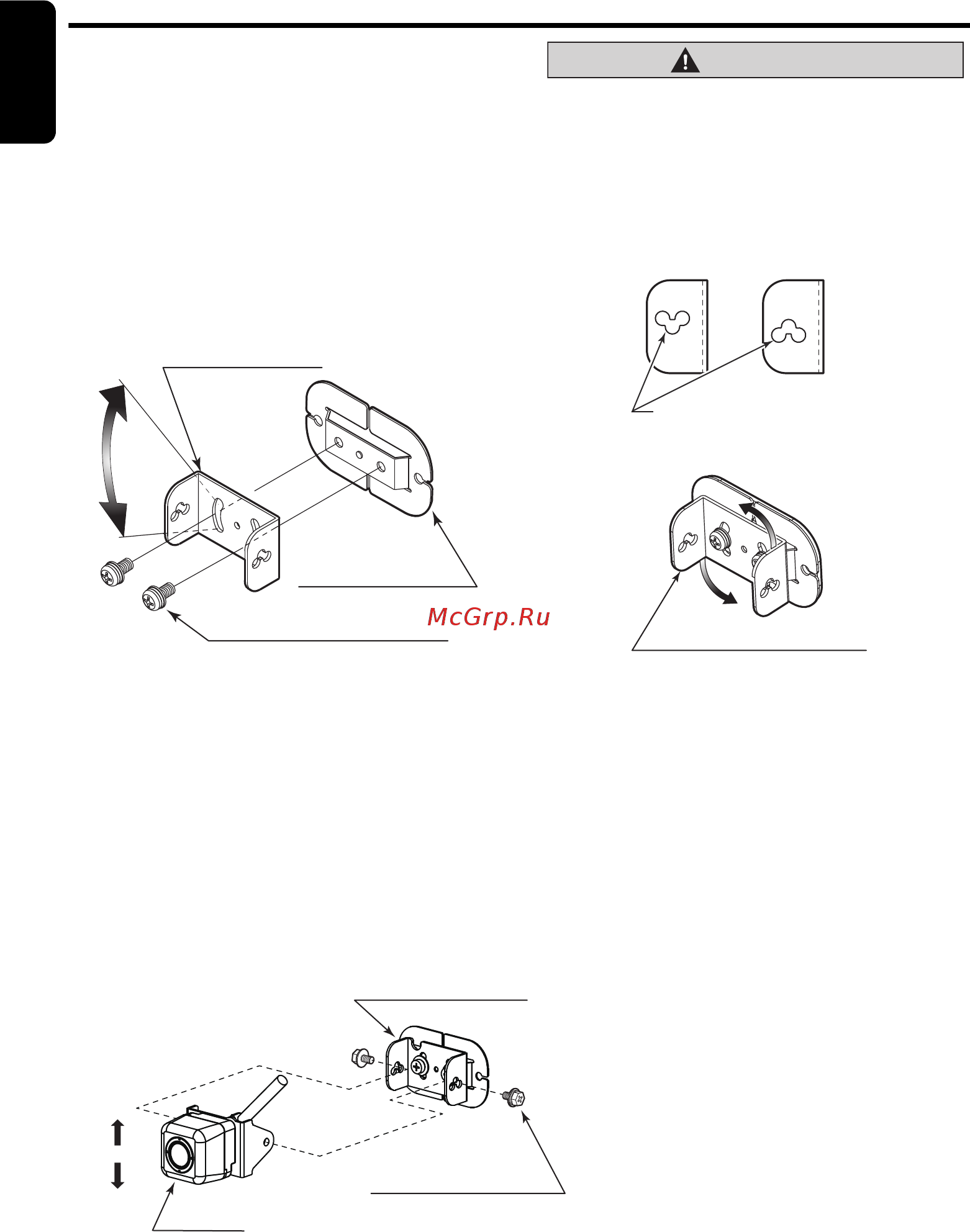

2. Installing the mounting bracket A
Using the two supplied installation screws (pan
head M3 x 6), fasten bracket A to bracket B.
• While tightening the screws, adjust the angle
of the bracket A to produce the optimum
camera angle.
To mount the camera at a level angle, mount
bracket A’s engraved leveling line (——) even
with the center of the installation screws when
tightening.
3. Installing the camera
Using the two supplied installation screws (hex
head M3 x 6), attach the camera to the
mounting bracket A.
• When attaching the camera to mounting
bracket A, the camera position can be
adjusted by using any of the three holes on
the side of bracket A. The position can also
be adjusted by inverting the position of
bracket A.
Adjust the camera angle when mounting the
camera.
CAUTION
• When adjusting the camera position, do
not allow the camera cable to be
excessively stretched or loose.
• Periodically check the tightness of the
installation screws and retighten if
necessary.
Mounting bracket A
Mounting bracket B
Installation screws (pan head)
Angle adjustment direction
Installation screws
(hex head)
Camera
Top
Bottom
Use one of the three holes.
or
Invert mounting bracket A
Mounting bracket A
