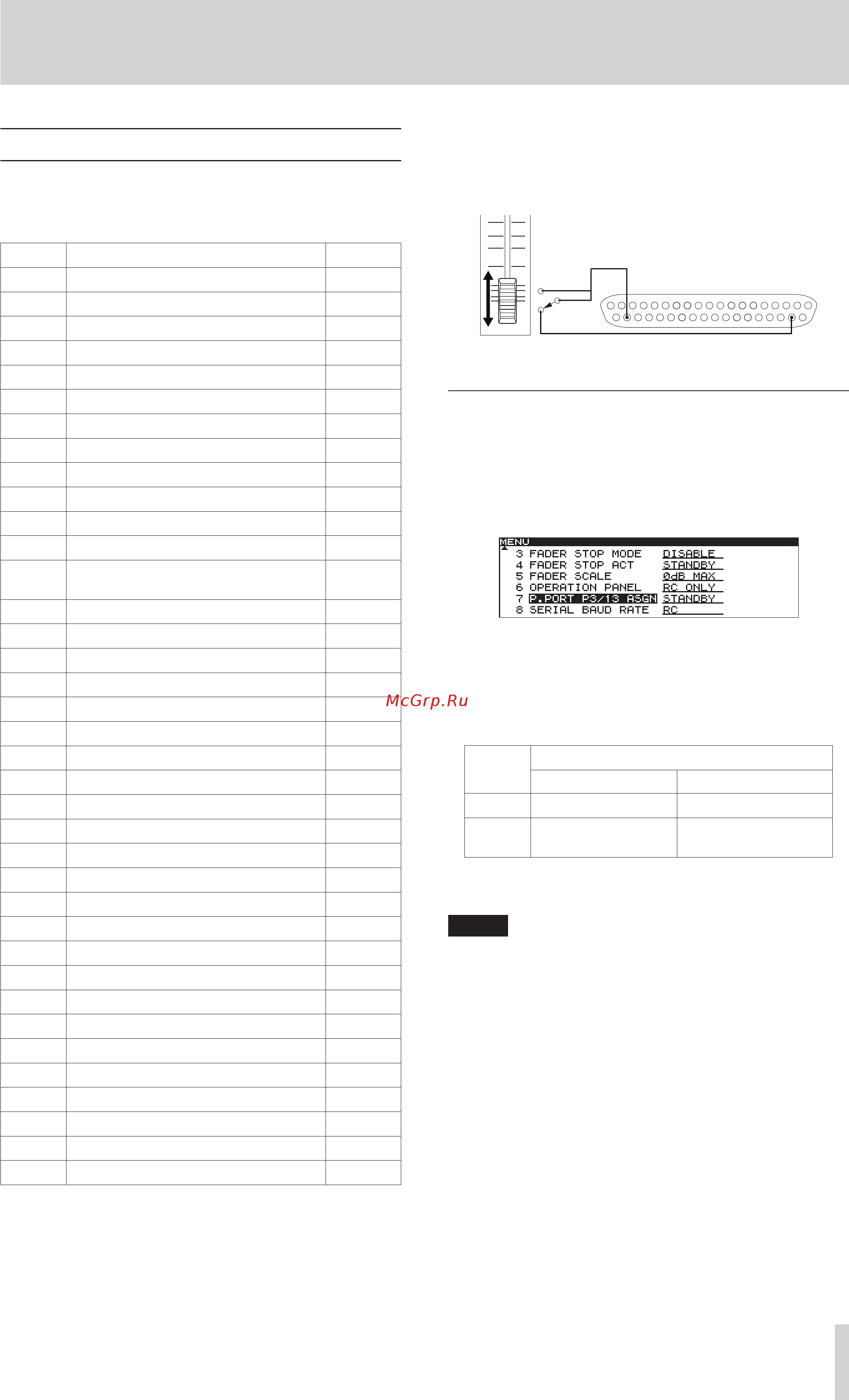

TASCAM CD-9010
35
8 – Using the remote connectors
Using the parallel connector
Using the REMOTE (PARALLEL) connector, you can control this
unit with an external controller.
The pin assignments are as follows.
Pin Function IN/OUT
1 ON LINE PLAY IN IN
2 MONITOR PLAY IN IN
3 STANDBY IN/PAUSE (JOG ON) IN** IN
4 STANDBY IN IN
5 STOP IN IN
6 TRACK SEARCH REV IN [.] IN
7 N.C –
8 TRACK SEARCH FWD IN [/] IN
9 SEARCH REV IN [m] IN
10 SEARCH FWD IN [,] IN
11 MONITOR PLAY TALLY OUT
12 STANDBY TALLY OUT
13
STANDBY TALLY/
PAUSE (JOG ON) TALLY**
OUT
14 STOP TALLY OUT
15 INDEX SEARCH REV IN [s] IN
16 INDEX SEARCH FWD IN [w] IN
17 ON LINE PLAY TALLY OUT
18 CUE UP IN
19 ON LINE IN IN
20 EOM OUT OUT
21 FADER START/STOP IN IN
22 ON LINE TALLY OUT
23 TEN KEY 0 IN
24 TEN KEY 1 IN
25 TEN KEY 2 IN
26 TEN KEY 3 IN
27 TEN KEY 4 IN
28 TEN KEY 5 IN
29 TEN KEY 6 IN
30 TEN KEY 7 IN
31 TEN KEY 8 IN
32 TEN KEY 9 IN
33 CD_TALLY OUT
34 Reserved –
35 CUE UP_TALLY OUT
36 GND –
37 +5V* –
IN: Active low external command reception
(operates when at ground 50 ms or longer)
OUT: Signal for tally output display by open collector
(50V maximum voltage, 100mA maximum current)
*100mA maximum supplied current
**Use the
P.PORT P3/13 ASGN
item on the
REMOTE
menu screen
to set their functions. (See "Parallel port 3-pin/13-pin setting"
below.)
The following is an example of a connection for playback control
of this unit using fader start/stop.
START
STOP
Pin21
FADER START/STOP IN
Pin36 GND
REMOTE（PARALLEL）
Parallel port 3-pin/13-pin setting
You can set the functions of the unit's REMOTE (PARALLEL)
connector 3-pin and 13-pin.
1. Press the MENU button to open the
MENU
screen.
2. Open the
REMOTE
menu screen.
3. Select
P.PORT P3/13 ASGN
.
4. Press the DATA dial to move the cursor right to select the
setting.
5. Turn the DATA dial to set the REMOTE (PARALLEL)
connector 3-pin and 13-pin functions.
Options:
PAUSE
,
STANDBY
(default value)
Pin
number
P.PORT P3/13 ASGN
setting
PAUSE STANDBY
3 PAUSE (JOG ON) IN STANDBY IN
13
PAUSE (JOG ON)
TALLY
STANDBY TALLY
6. After completing the setting, press the HOME button to
return to the Home Screen.
NOTE
The pin assignment setting is retained even when the power is
turned OFF.
