HS-P82
8 TASCAM HS-P82
When set to
•
Mirror, if recording is not possible on the current
CF card, recording will not occur on the other CF card either,
regardless of its remaining space.
During mirror recording, if the time counter display mode is
•
TOTAL REMAIN, the amount of recording time possible when
set to Mirror is shown (in other words, the time available on
the CF card with the least amount of open space). During mirror
recording, if one of the CF cards runs out of space, the amount
of time that can be recorded on the CF card that is still being
recorded to is shown.

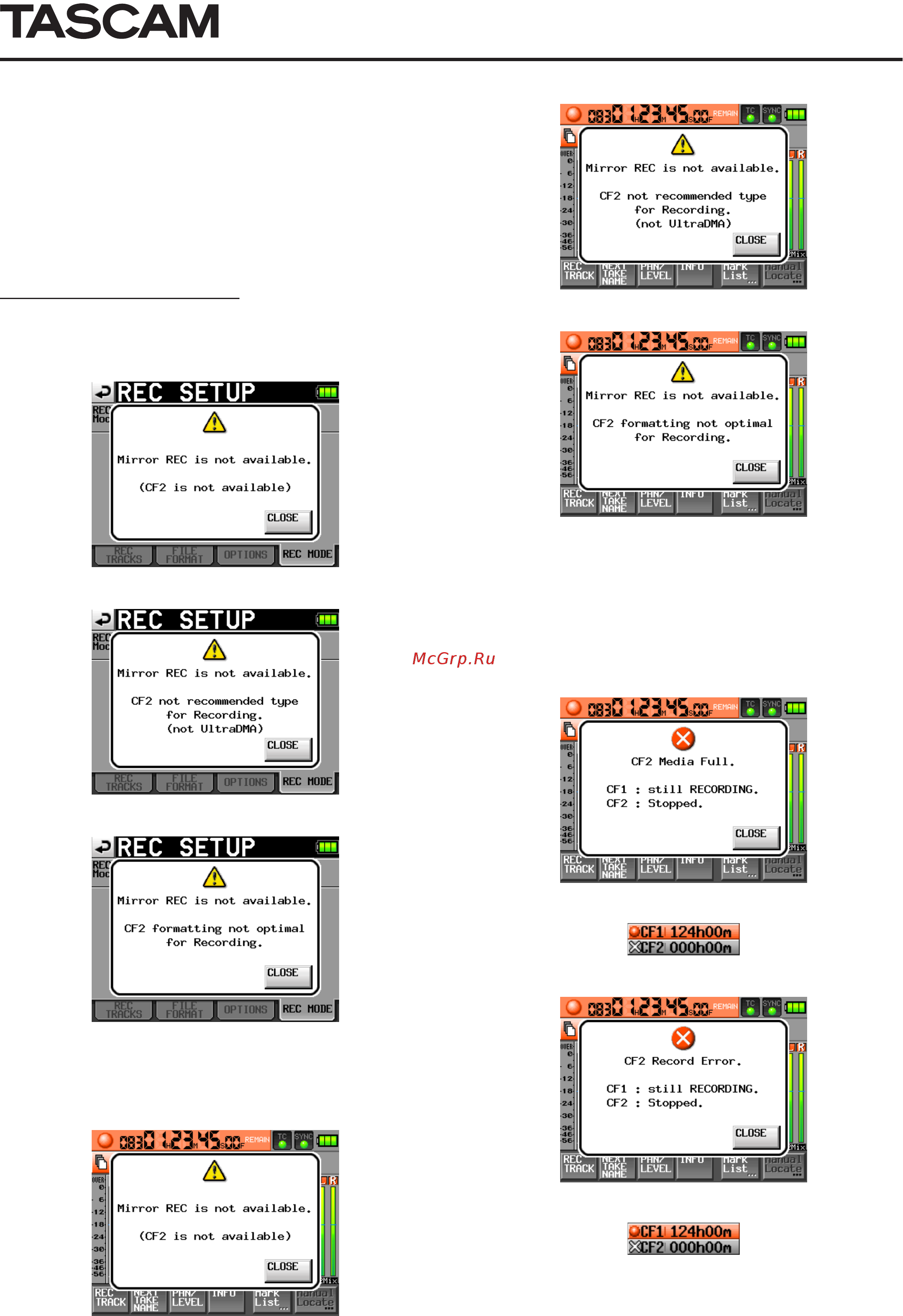

Mirror recording messages
If the REC Mode is set to Mirror when mirror recording is not
ª
possible, one of the following messages appears.
1 When recording not possible to one of the CF cards
2 When one of the CF cards is not compatible with UDMA
3 When one of the CF cards was not formatted by this unit
If recording is started when Mirror recording is disabled, one
ª
of the following messages appears.
1 When Mirror recording is disabled for a reason other than
2 or 3 below
2 When one of the CF cards is not compatible with UDMA
3 When one of the CF cards was not formatted by this unit
During mirror recording, if one of the CF cards runs out of
ª
remaining space or has an error, recording to that CF card
will stop. Recording of the current take to the other CF card
will stop, but recording of a new take as a new file will start
immediately.
When this happens, a message will appear and the CF card
remaining time display buttons will be shown as follows
1 When one CF card runs out of open space
CF card remaining time buttons
2 When an error occurs with one CF card
CF card remaining time buttons
