23

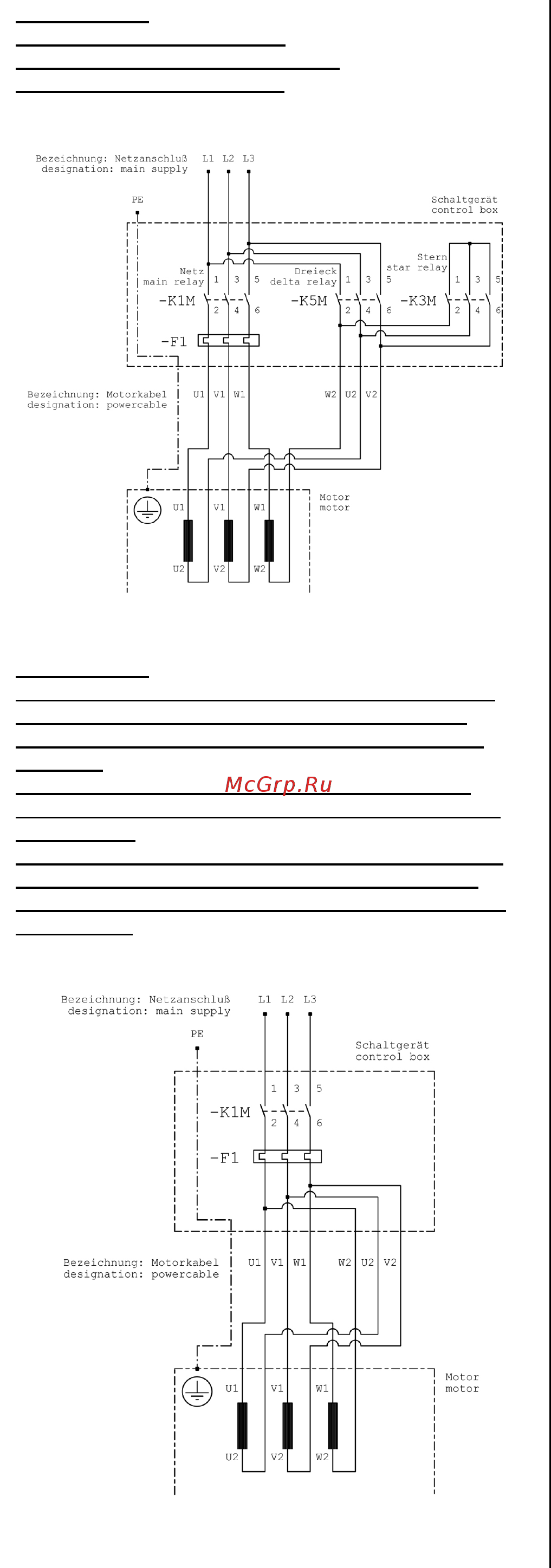

Abb. 3 / Fig. 3:
Netzanschluss Stern-Dreieck
Starter Connection Star-Delta Start
Netaansluiting Ster-Driehoek
Abb. 4 / Fig. 4:
Netzanschluss Direkt-Start (DOL) für Stern-Dreieck-
vorbereitete Motoren (Alle Wicklungsenden über
Anschlusskabel zugänglich) Dreieckschaltung der
Wicklung
Starter Connection Direct-on-Line (DOL) Start for
Star-Delta prepared Motors Delta Connection of Sta-
tor Windings
Netaansluiting Direkt-Start (DOL) voor Ster-Driehoek
voorbereide motoren (Alle wikkeleingseinden met
aansluitkabel toegankelijk) Driehoeksschakeling van
de wikkeling
