22

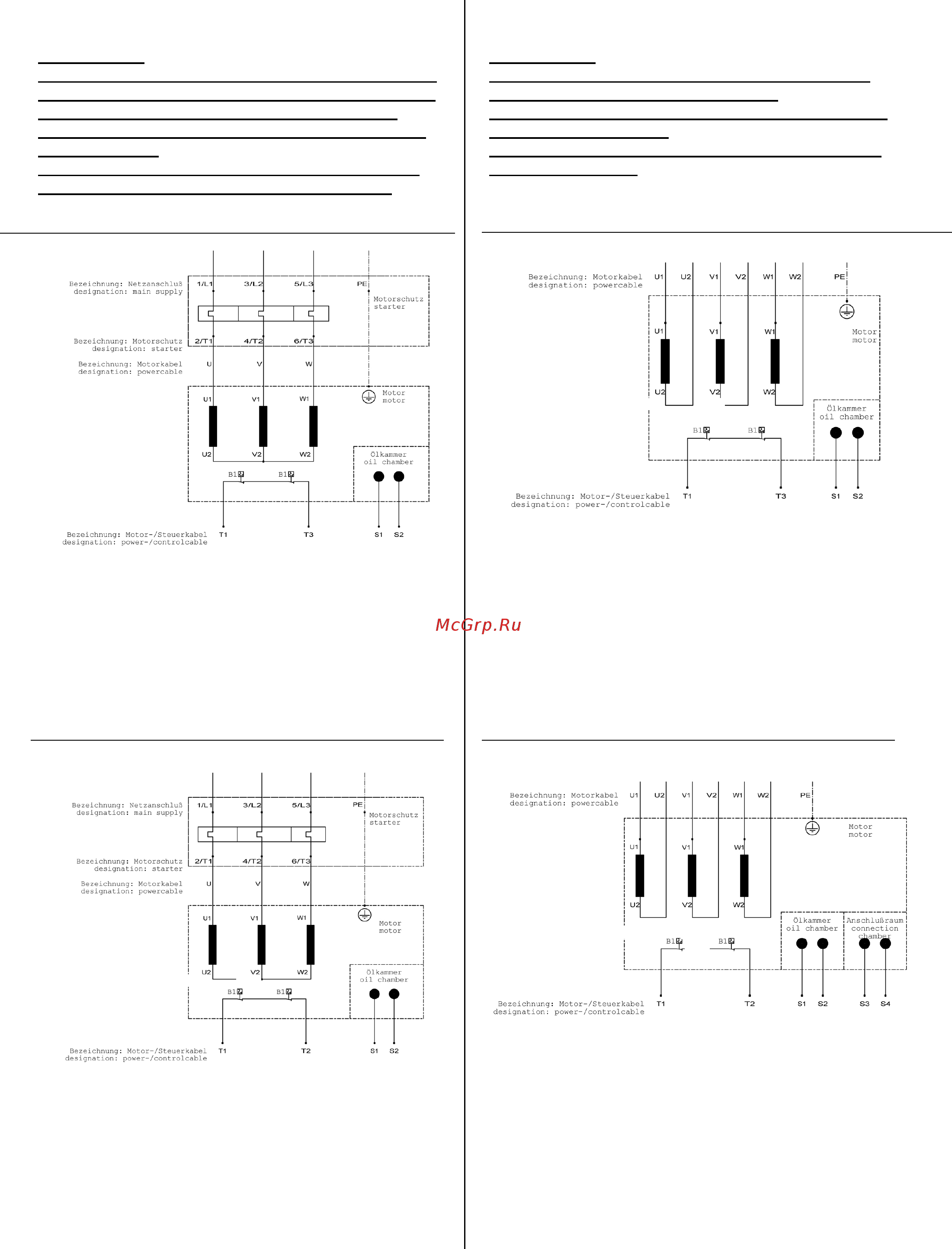

13. Anschlussdiagramme / Wiring diagrams/
Aansluitschema
Abb. 1 / Fig. 1:
Anschlußdiagramm Standardmotor Direkt-Start (DOL)
- GRP 16 bis GRP 36 Stern-Schaltung der Wicklungen
Wiring diagram pump motor Direct-on-Line Start
(DOL) – GRP 16 up to GRP 36 Star connection of the
Stator-Windings
Aansluitschema Standaardmotor Direkt-Start (DOL)
GRP 16 tot GRP 36 Ster-schakeling wikkelingen
Normalausführung / Standard model / Normale uitvoering
T1, T3: Temperaturfühler (ca. 130° C)
Temperature sensors (approx. 130° C)
Temperatuurvoelers (ca. 130° C)
S1, S2: Dichtungsüberwachung Ölkammer*
Oil chamber seal condition sensor*
Dichtingscontrole Oliekamer*
Ex-Ausführung / Model Ex / Ex- uitvoering
T1, T3: Temperaturfühler (ca. 140° C)
Temperature sensors (approx. 140° C)
Teperatuurvoelers (ca. 140° C)
S1, S2: Dichtungsüberwachung Ölkammer*
Oil chamber seal condition sensor*
Dichtingscontrole Oliekamer*
Abb. 2 / Fig. 2:
Anschlussdiagramm Standardmotor Stern-Dreieck-
Start vorbereitet – GRP 44 bis GRP 111
Wiring diagram pump motor Star-Delta Start prepared
– GRP 44 up to GRP 111
Aansluitschema Standaardmotor Ster-Driehoek-Start
GRP 44 tot GRP 111
Normalausführung / Standard model /Normale uitvoering
T1, T3: Temperaturfühler (ca. 130° C)
Temperature sensors (approx. 130° C)
Temperatuurvoelers (ca. 130° C)
S1, S2: Dichtungsüberwachung Ölkammer*
Oil chamber seal condition sensor*
Dichtingscontrole Oliekamer*
Ex-Ausführung / Model Ex / Ex- uitvoering
T1, T3: Temperaturfühler (ca. 140° C)
Temperature sensors (approx. 140° C)
Temperatuurvoelers (ca. 140° C)
S1: Dichtungsüberwachung Ölkammer*
Oil chamber seal condition sensor*
Dichtingscontrole Oliekamer*
* je nach Ausführung.
