24

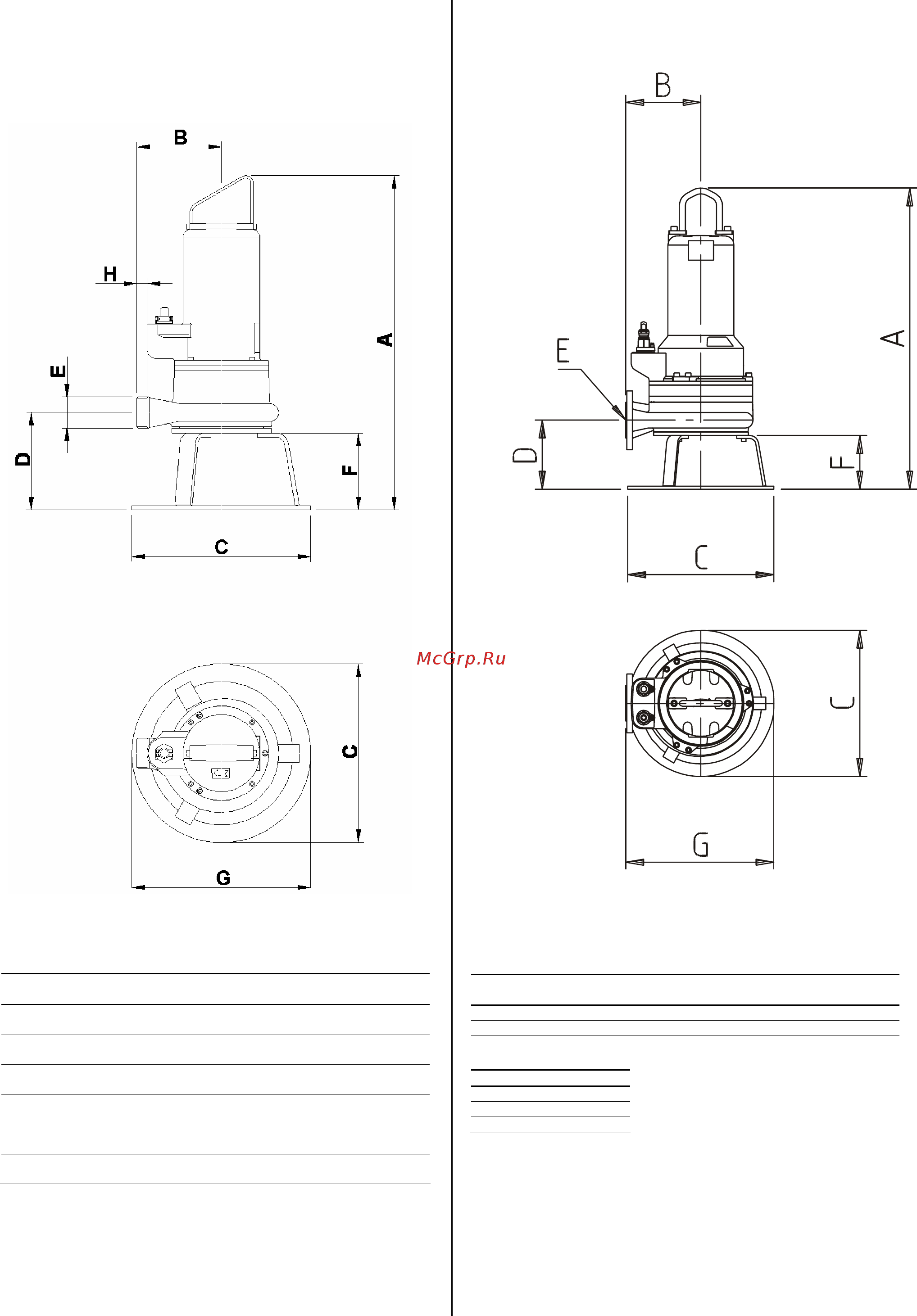

14. Baumaße / Dimensions / Afmetingen
(in mm)
GRP 16 (Ex), GRP 22 (Ex), GRP 26 (Ex),
GRP 36 (Ex), GRP 44 (Ex), GRP 50 (Ex)
Maße / Dimensions / Afmetingen
Typ /
type
A B C D E F G H
16 (Ex) 496 125 239 133 R 2“AG
BSP 2“M
90 239 20
22 (Ex) 618 165 350 191 R 2“AG
BSP 2“M
150 350 -
26 (Ex) 618 165 350 191 R 2“AG
BSP 2“M
150 350 -
36 (HD)
(Ex)
655 165 350 191 R 2“AG
BSP 2“M
150 350 -
44 (Ex) 695 180 350 199 R 2“ AG
BSP 2“M
150 350 25
50 (Ex) 695 180 350 199 R 2“ AG
BSP 2“M
150 350 25
GRP 56 (Ex), GRP 76 (Ex), GRP 111 (Ex)
Maße / Dimensions / Afmetingen
Typ /
type
A B C D E F G
56 (Ex) 771 210 410 193 DN 50 PN 10 150 415
76 (Ex) 771 210 410 193 DN 50 PN 10 150 415
111 (Ex) 844 210 410 193 DN 50 PN 10 150 415
Typ / type A
56 U (Ex) 775
76 U (Ex) 775
111 U (Ex) 848
