25

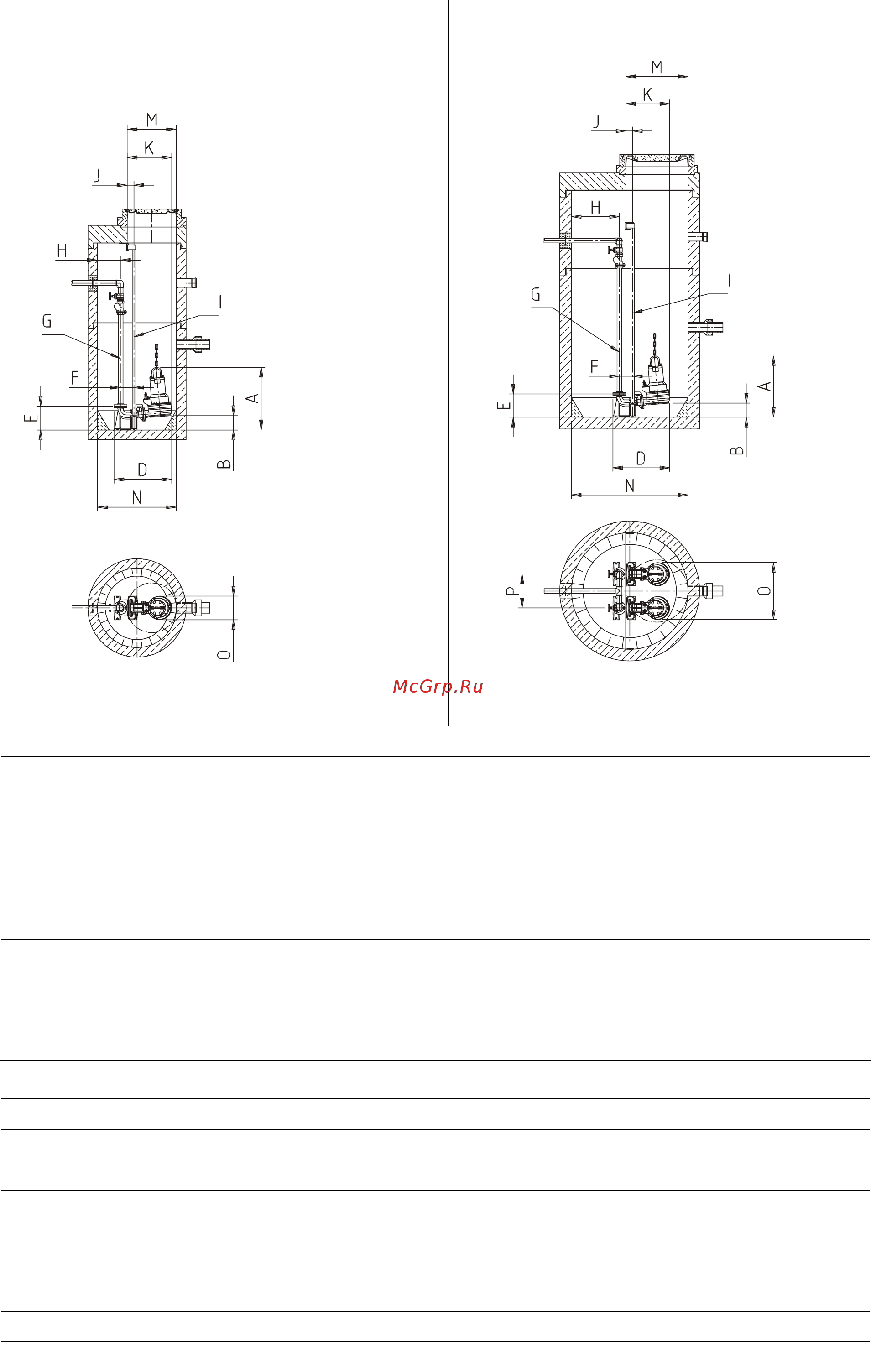

14.2 Schachtinstallation mit Kupplungssystem
14.2 Submerged Installation with Auto-Coupling
14.2 Installatie met automatische koppeling
Einzelstation / Single station / Enkel pompstation
Doppelstation / Double station / Dubbel pompstation
Maße / Dimensions / Afmetingen
Einzelanlage / Single station / Enkel pompstation
Typ /
type
A B C D E F G H I J K L M N O P
16 (Ex) 560 172 84 490 225 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO
Pipe ½“ ISO
45 393 625 Ø 625 Ø 1000 212 -
22 (Ex) 630 183 84 504 225 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO
Pipe ½“ ISO
45 407 625 Ø 625 Ø 1000 223 -
26 (Ex) 630 183 84 504 225 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO
Pipe ½“ ISO
45 407 625 Ø 625 Ø 1000 223 -
36 (Ex) 667 183 84 504 225 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO
Pipe ½“ ISO
45 407 625 Ø 625 Ø 1000 223 -
44 (Ex) 706 187 - 527 250 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO 45 407 625 Ø 625 Ø 1000 223
50 (EX) 706 187 - 527 250 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO 45 429 - Ø 625 Ø 1000 250
56 (Ex) 790 182 - 728 300 170 Rohr 2“ ISO
Pipe 2“ ISO
292 Rohr 1½“ ISO
Pipe 1½“ ISO
87 563 - Ø 625 Ø 1000 297 -
76 (Ex) 790 182 - 728 300 170 Rohr 2“ ISO
Pipe 2“ ISO
292 Rohr 1½“ ISO
Pipe 1½“ ISO
87 563 - Ø 625 Ø 1000 297 -
111 (Ex) 862 182 - 728 300 170 Rohr 2“ ISO
Pipe 2“ ISO
292 Rohr 1½“ ISO
Pipe 1½“ ISO
87 563 - Ø 625 Ø 1000 297 -
Doppelanlagen / Double station / Dubbel pompstation
Typ /
type
A B C D E F G H I J K L M N O P
16 (Ex) 560 172 84 490 225 90 Rohr 2“ ISO
Pipe 2“ ISO
530 Rohr ½“ ISO
Pipe ½“ ISO
45 393 625 Ø 625 Ø 1200 512 300
22 (Ex) 630 183 84 504 225 90 Rohr 2“ ISO
Pipe 2“ ISO
530 Rohr ½“ ISO
Pipe ½“ ISO
45 407 625 Ø 625 Ø 1200 523 300
26 (Ex) 630 183 84 504 225 90 Rohr 2“ ISO
Pipe 2“ ISO
530 Rohr ½“ ISO
Pipe ½“ ISO
45 407 625 Ø 625 Ø 1200 523 300
36 (Ex) 667 183 84 504 225 90 Rohr 2“ ISO
Pipe 2“ ISO
530 Rohr ½“ ISO
Pipe ½“ ISO
45 407 625 Ø 625 Ø 1200 523 300
50 (Ex) 706 187 - 527 250 90 Rohr 2“ ISO
Pipe 2“ ISO
330 Rohr ½“ ISO
Pipe ½“ ISO
45 429 - Ø 625 Ø 1200 550 300
56 (Ex) 790 182 - 728 300 170 Rohr 2“ ISO
Pipe 2“ ISO
617 Rohr 1½“ ISO
Pipe 1½“ ISO
87 563 - Ø 800 Ø 1500 733 436
76 (Ex) 790 182 - 728 300 170 Rohr 2“ ISO
Pipe 2“ ISO
617 Rohr 1½“ ISO
Pipe 1½“ ISO
87 563 - Ø 800 Ø 1500 733 436
111 (Ex) 862 182 - 728 300 170 Rohr 2“ ISO
Pipe 2“ ISO
617 Rohr 1½“ ISO
Pipe 1½“ ISO
87 563 - Ø 800 Ø 1500 733 436
