MEASUREMENT FOUNDATION

ProDigit 60

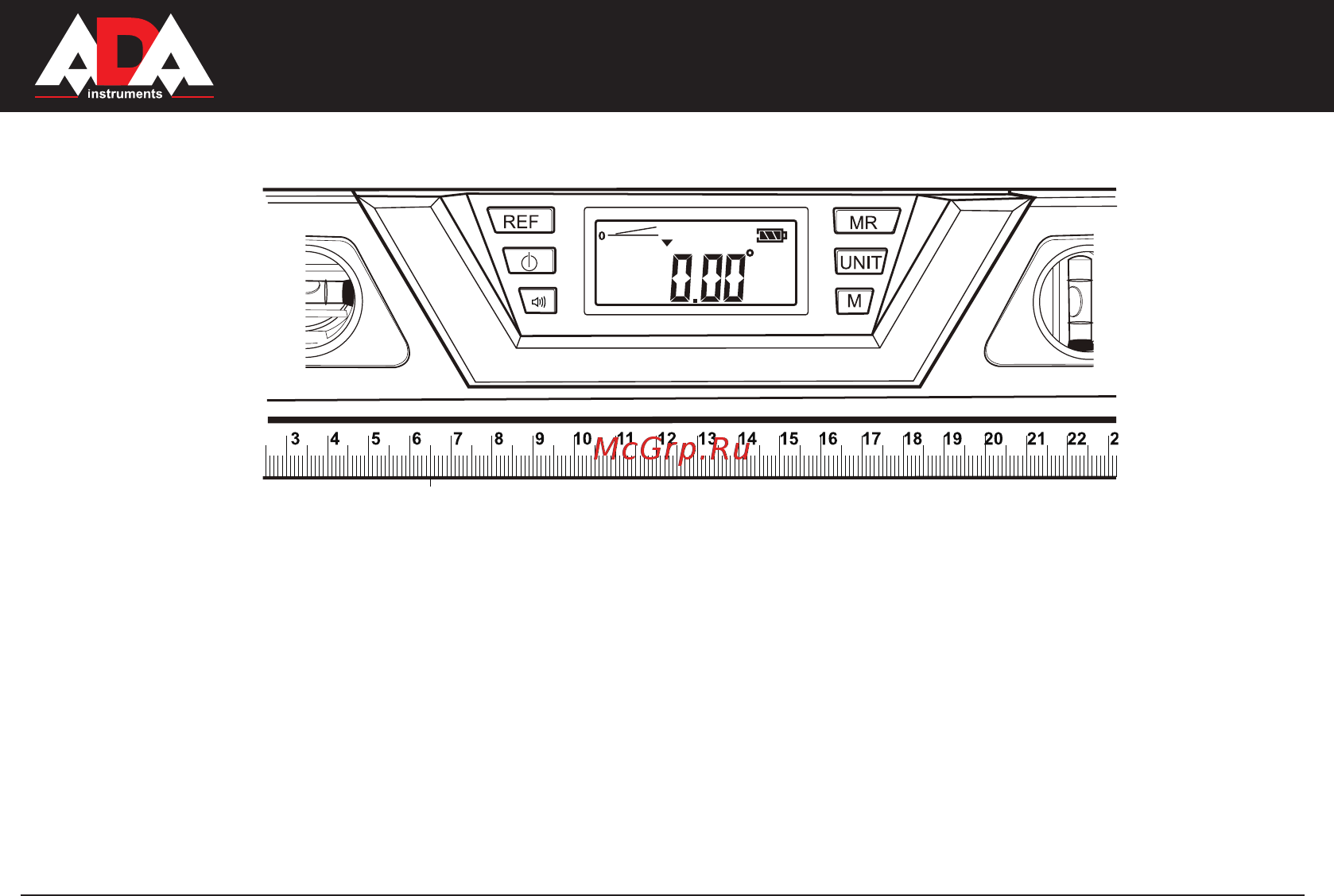

Key function (Fig.1b)

Power button-press the button to turn the LCD display screen on. Long press it to turn off the LCD display.

REF Button - Push the button briey to set current angle to zero, enter relative angle measurement mode. Push the button for about

3 seconds to start the calibration.

Sound On/Off Button- Used to activate the beeper. When button is pushed, beeper sounds at level (0°), 45°, plumb (90°) and last

saved angle. To turn sound off, simply push button again.

M Button - Push to save the current reading in its memory. The level will save last nine different consecutive angle readings in its

memory.

MR Button - Push button to recall the last 9 measurements that are saved in the memory. They will read in order of the latest mea-

surement entered as “rst”.

UNIT Button - By pushing this button you can convert angles to different units. Push to change the display units from degrees (°)

to pitch (in / ft), to percent slope (%). Pitch readings are in 1/8-inch/feet increments. Plus and minus signs indicate that the pitch is

slightly more (+) or less (-) than true level.
