MEASUREMENT FOUNDATION

ProDigit 60

Battery installation (Fig. 2)

This multi-function digital laser level uses two “AAA” batteries (sold separately), to power both the LCD module display and the Laser

dot.

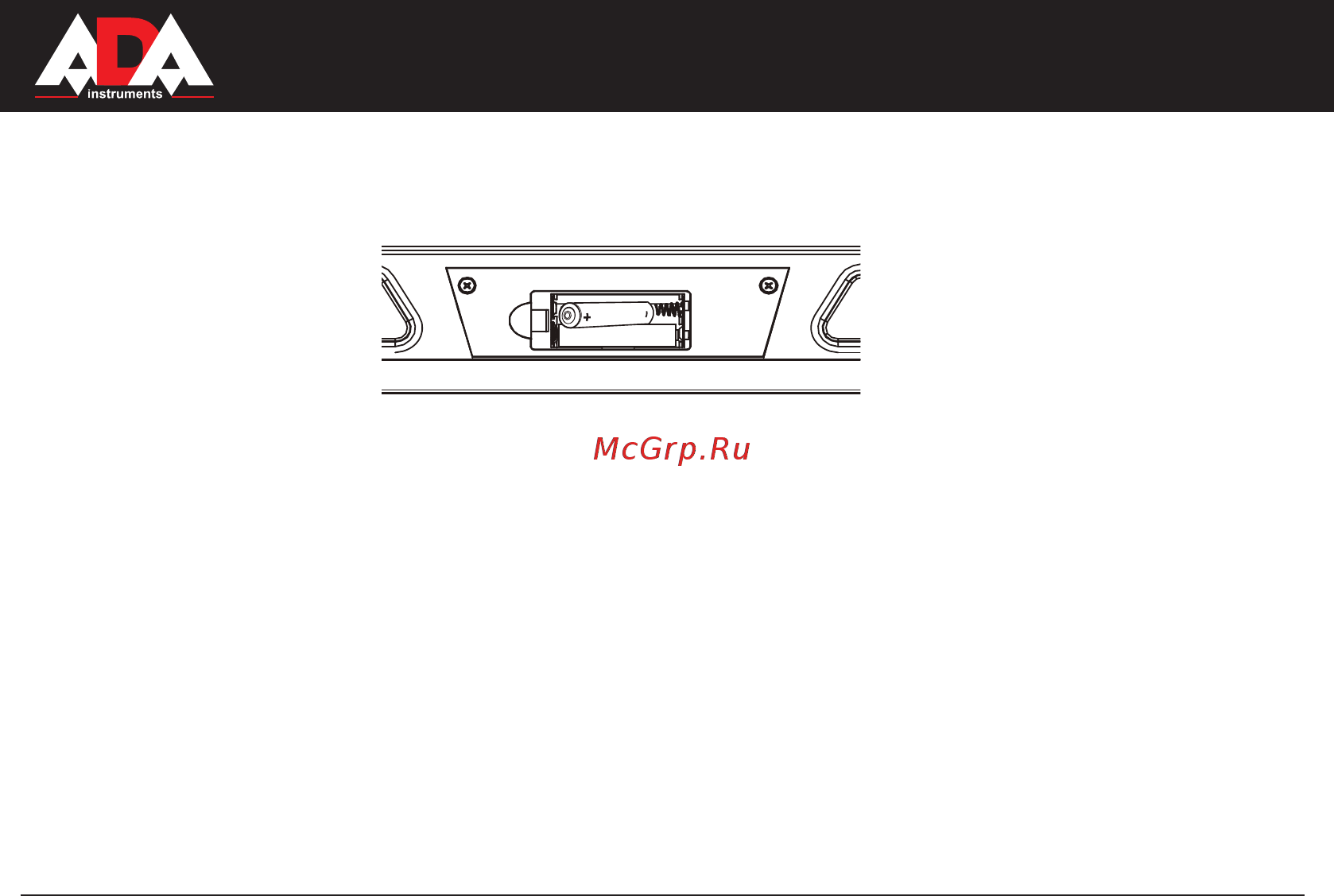

Fig.2

NOTE: Always ensure the on/off button is in OFF position before installing or replacing the batteries.

Open the battery cover, located in the middle of the back of the level (Fig.2).

Insert two new “AAA” alkaline batteries with the polarity (+/-) as indicated on the inside of the battery compartment.

Close the cover securely in place.

Turn on the LCD display

Press the Power button to turn the LCD display screen on. When the screen rst comes on, the temperature is displayed in centigrade

for about 2 seconds, to indicate if level is being used in optimum operating temperature range. The current angle of the level is then

displayed, and a picture of that angle is shown either above or below the line for true level. An arrow on the display indicates if the level

has to be moved up or down. True level is reached when the two lines are together and the angle shows 0.00°. Turn off the LCD display

by pressing and holding the button in for about 2 seconds. If the digital level is not used for 5 minutes the level automatically turns off.

The LCD display is large and easy to read. When the level is turned upside down, the LCD screen senses and changes to read correctly

in the inverted position.
