Emotron FLD48-061-54 [55/68] Fig 56 safe stop connection

CG Drives & Automation, 01-6142-01r0 Options 51

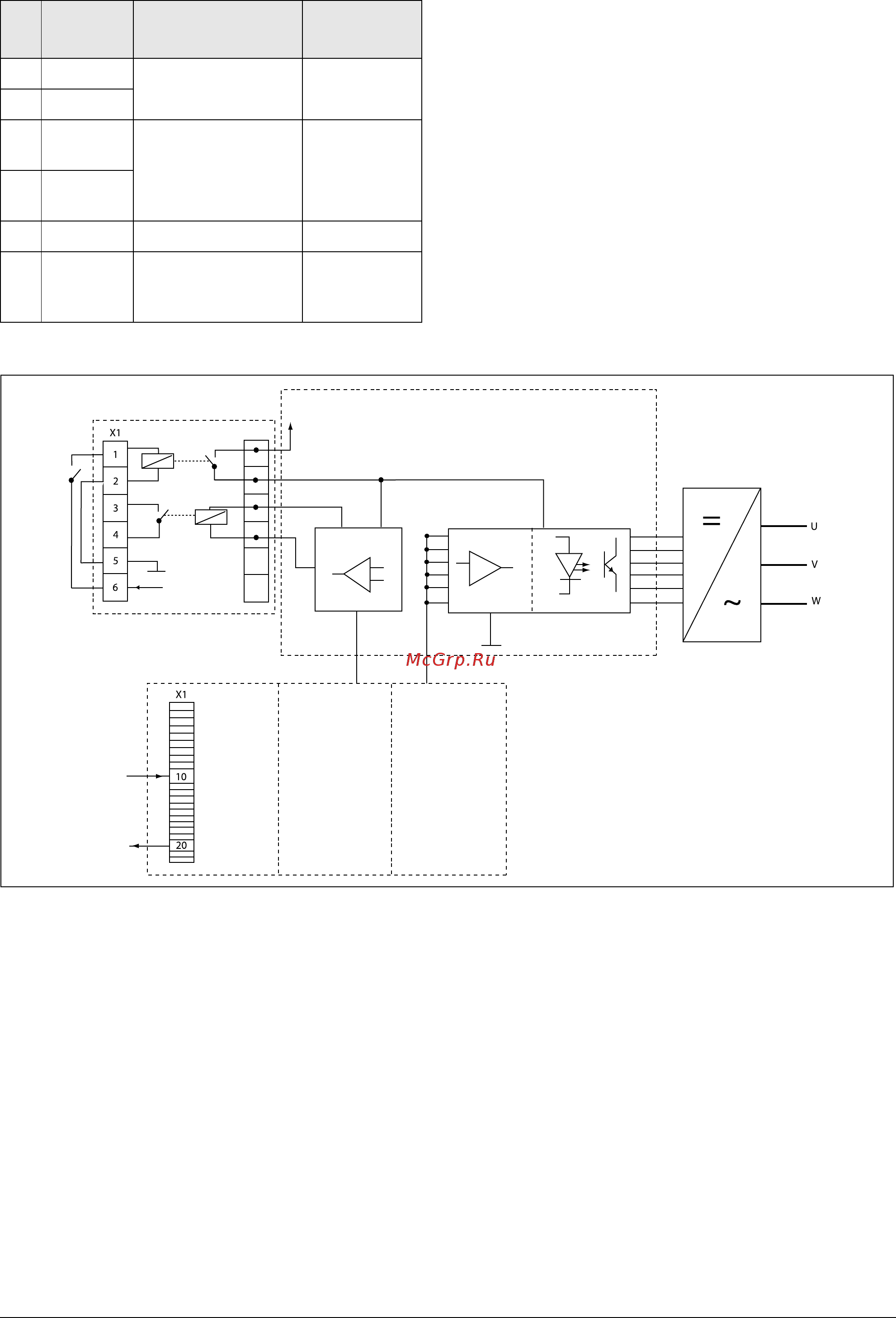

Fig. 56 Safe Stop connection

Table 21 Specification of Safe Stop option board

Name Function Specification

1 Inhibit +

Inhibit driver circuits of

power conductors

DC 24 V

(20–30 V)

2 Inhibit -

NO contact

relay K2

Feedback; confirmation

of activated inhibit

48 V

30 V

/2 A

P contact

relay K2

5 GND Supply ground

6+24 VDC

Supply Voltage for

operating Inhibit input

only.

+24 V

50 mA

Safe Stop

+5V

+24 V

Power board

PWMController

DigIn

DigOut

Enable

Stop
