Air chillers and heat pumps - LER
LER 40 - 420 kW
Dimensional drawings

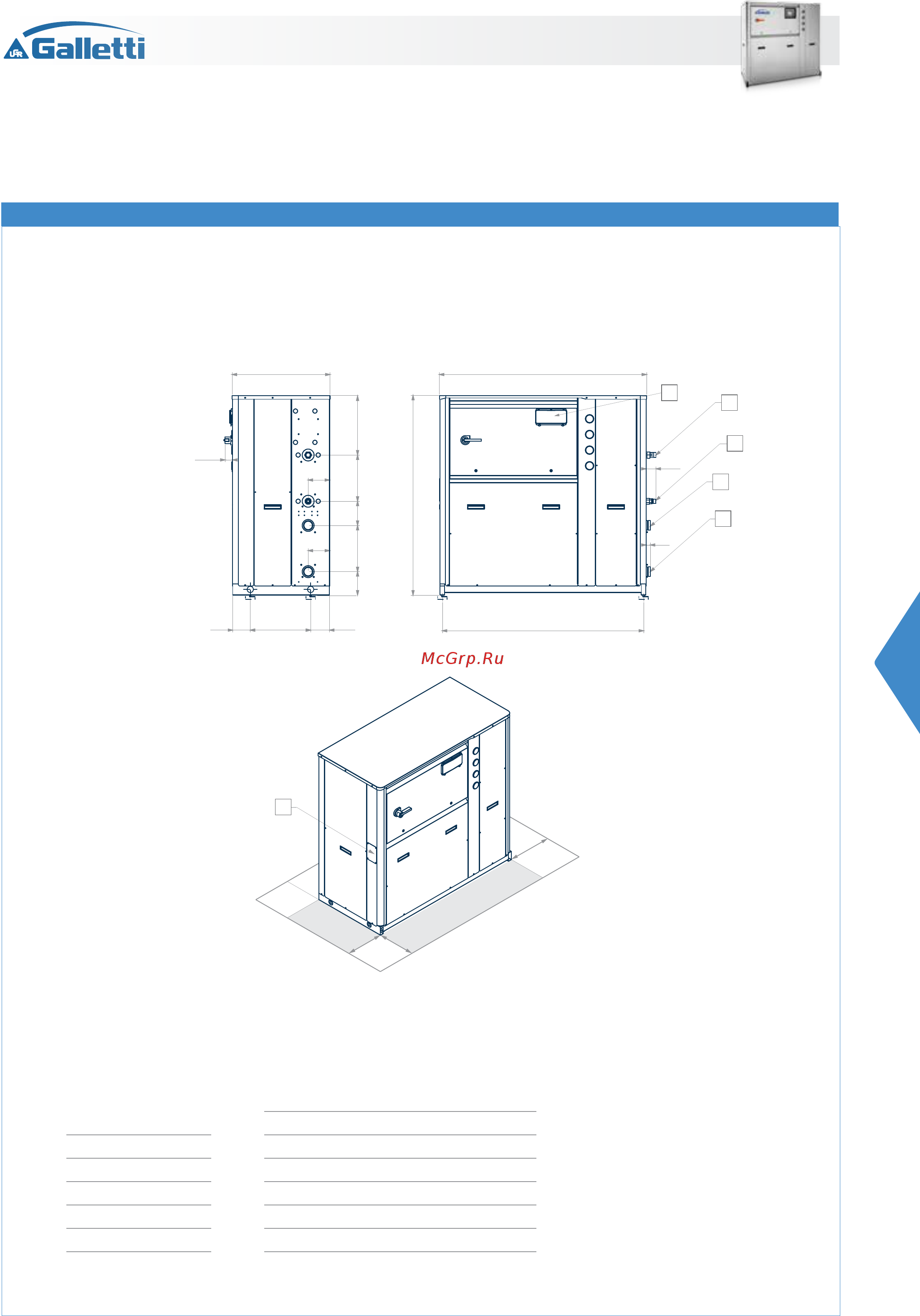

LER 112 - 182
LEGEND
1 Air outlet, refrigerant side (Ø 35)
2 Air intake, refrigerant side (Ø 35)
3 User circuit inlet (Victaulic 2” ½ )
4 User circuit outlet (Victaulic 2” ½ )
5 User interface
6 Power supply input
772 1644
1
2
3
4
5
6
5 - INTERFACCIA UTENTE
6 - INGRESSO ALIMENTAZIONE ELETTRICA
150
1606
1594
482140
34
79
187 369 193 369 476
171
171
(60)
2 - ASPIRAZIONE LATO REFRIGERANTE (35)
4 - USCITA CIRCUITO UTILIZZATORE (VICTAULIC 2 1/2")
3 - INGRESSO CIRCUITO UTILIZZATORE (VICTAULIC 2 1/2")
1 - MANDATA LATO REFRIGERANTE (35)
1 m
1 m
0,5 m
772 1644
1
2
3
4
5
6
5 - INTERFACCIA UTENTE
6 - INGRESSO ALIMENTAZIONE ELETTRICA
150
1606
1594
482140
34
79
187 369 193 369 476
171
171
(60)
2 - ASPIRAZIONE LATO REFRIGERANTE (35)
4 - USCITA CIRCUITO UTILIZZATORE (VICTAULIC 2 1/2")
3 - INGRESSO CIRCUITO UTILIZZATORE (VICTAULIC 2 1/2")
1 - MANDATA LATO REFRIGERANTE (35)
1 m
1 m
0,5 m
Model Version
LER 112 S-L
LER 132 S-L
LER 142 S-L
LER 162 S-L
LER 182 S-L
