13 ELECTRICAL DATA
- The maximum input power is the mains power that must be available in order for the unit to work.
- The maximum current absorption refers to the current that will trigger the internal safety devices of the unit. It is the maximum current allowed in the unit. This
value may never be exceeded; it must be used as a reference for determining the size of the power supply line and the related safety devices (refer to the wiring
diagram supplied with the units).

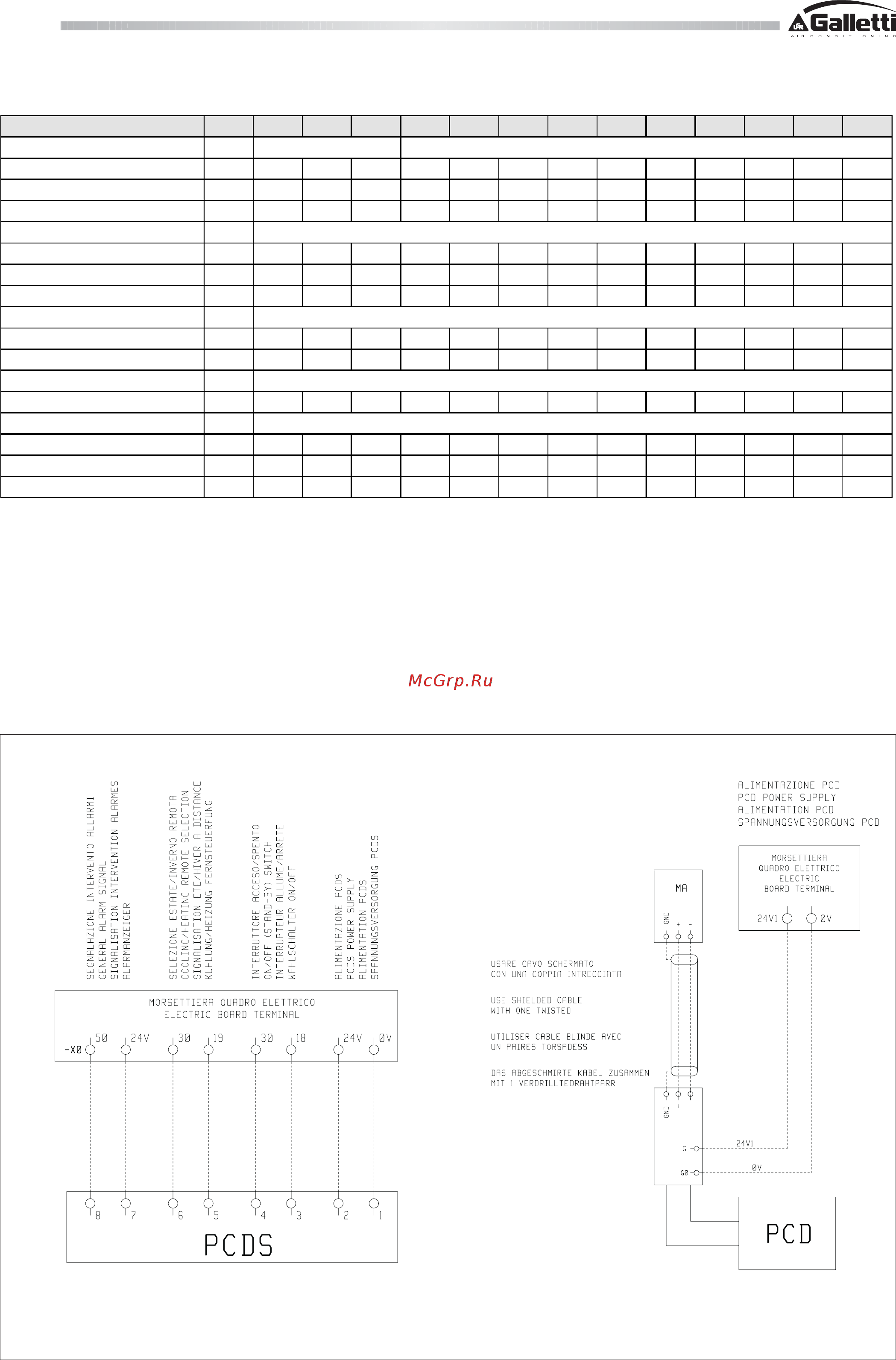

DIAGRAM SHOWING ELECTRICAL CONNECTIONS BETWEEN MCA AND PCDS / PCD REMOTE CONTROL PANEL
MCC
6 M 7 M 9 M 6 7 9 12 15 18 22 25 33 37
Unit power supply V/ f/Hz
Max power input kW 4,0 5,0 7,0 4,0 5,0 7,0 9,0 9,0 11,0 13,0 17,0 19,0 21,0
Max current absorbed A 17,1 19,1 33,6 7,5 9,5 17,4 19,4 20,4 23,2 25,2 28,4 34,6 38,2
Starting ampere A
Fan motor lpower supply
Number of fans n1111111111222
Fan motor power input (each) kW 0,73 0,73 1,90 0,73 0,73 0,73 1,90 1,90 2,00 2,00 1,90 2,00 2,00
Fan motor current (each) A 3,0 3,0 9,0 3,0 3,0 9,0 9,0 9,0 9,5 9,5 9,0 9,5 9,5
Pump power supply
Pump rated powe r input kW 0,1 0,1 0,4 0,1 0,1 0,4 0,4 0,4 0,4 0,4 0,6 0,6 0,6
Pump rated current absorbtion A 0,6 0,,58 3,2 0,6 0,6 3,2 3,2 3,2 3,2 3,2 4,6 4,6 4,6
Auxiliary power supply V/f/Hz
Sezione cavi alimentazione
mm
2
6,0 2,5 6,0 4,0 10,0 6,0 6,0 6,0 6,0 6,0 10,0 10,0 16,0
PCD connection cable
mm
2
PCDS connection cable
mm
2
1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5
F protection fuse A 20102516402025253232405050
IL mains switch A 20102516402025253232405063
2 pole s with braiding
24 / 50
230 / 1 / 50
400 / 3 / 50
230 / 1 / 50
230 / 1 / 50
