5
RG66002701 - Rev 01
The technical and dimensional data reported in this manual may be modified
MCC

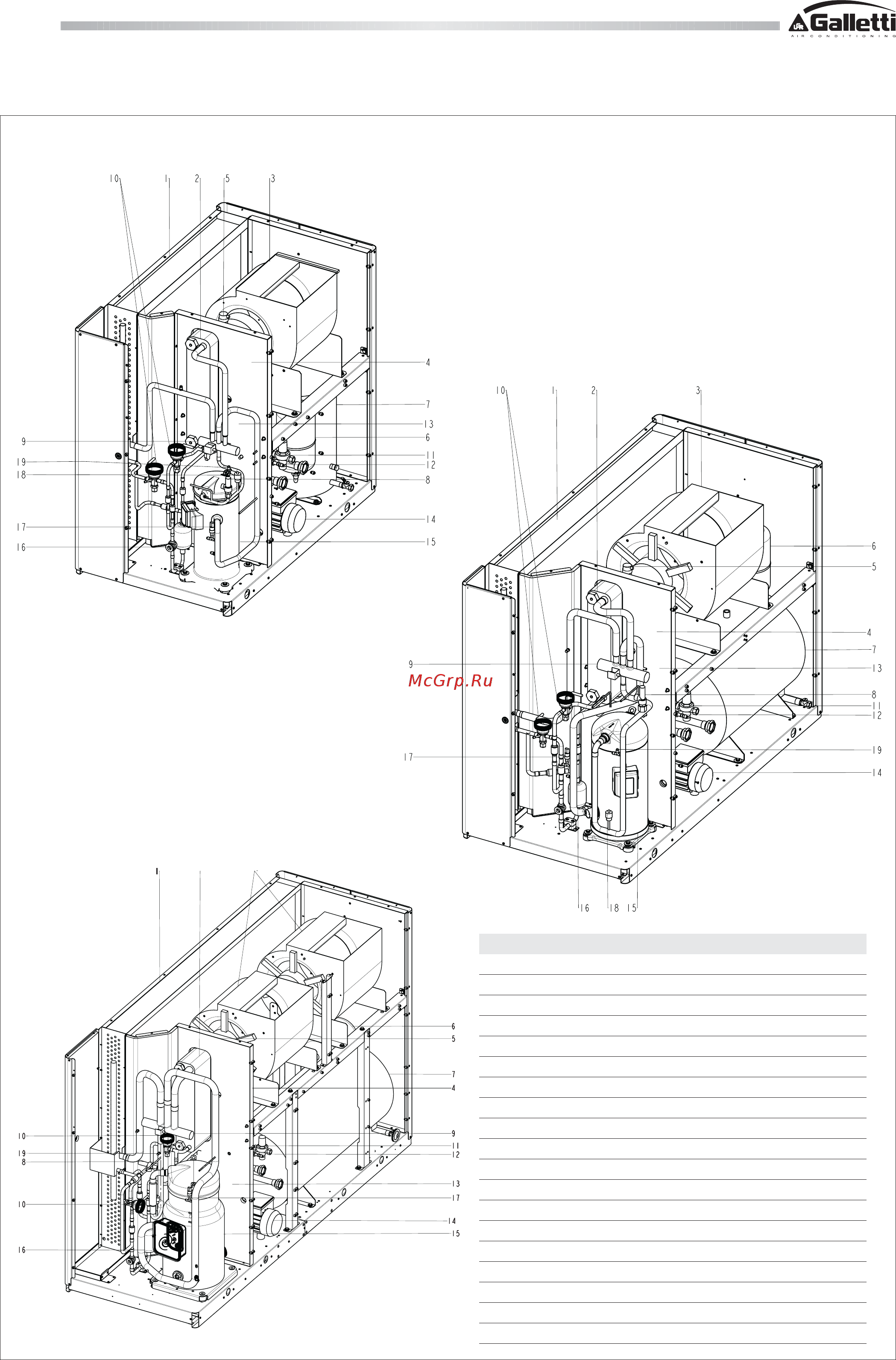

3 COMPONENTS LAY-OUT
MCC 09 - 15
MCC 25- 37
2
3
MCC 18 - 22
Description
1 R410A-air heat-exchangers
2 R410A-water heat-exchanger
3 Fan
4 Water differential pressure switch
5 Air purge valve
6 Expansion vessel
7 Water tank
8 R410A safety valve
9 4-way valve (MCC H)
10 Thermostatic valve
11 Automatic filling device
12 Water safety valve
13 Liquid receiver
14 Pump
15 Compressor
16 Refrigerant filter
17 Low pressure switch and charge port
18 High pressure switch and charge port
19 Port on refrigerant circuit (high)
