21
RG66002701 - Rev 01
The technical and dimensional data reported in this manual may be modified
MCC

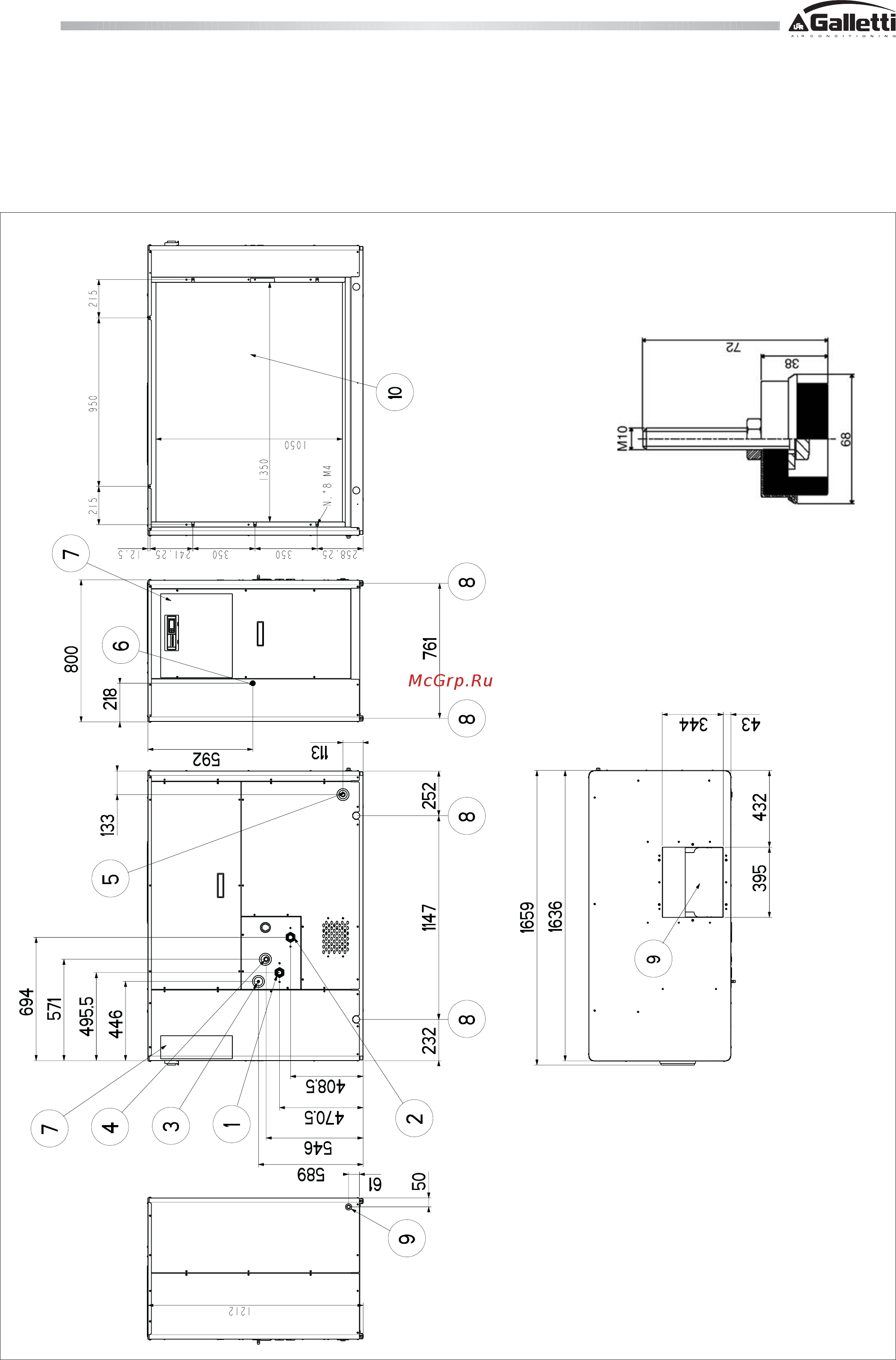

14 OVERALL DIMENSIONS MCC 18 - 22
1 1
1
/
4
" female water inlet
2 1
1
/
4
" female water outlet
3
1
/
2
" safety valve discharge
4
1
/
2
" female water supply
5
1
/
2
" drain manifold
6 Power supply Φ 28 mm
7 Electrical box
8 Dampers fastening points
9 Air discharge
10 Air suction
BASE DAMPERS
Dimensions in mm
