Galletti МСС-С 07 [3/24] Constructive features

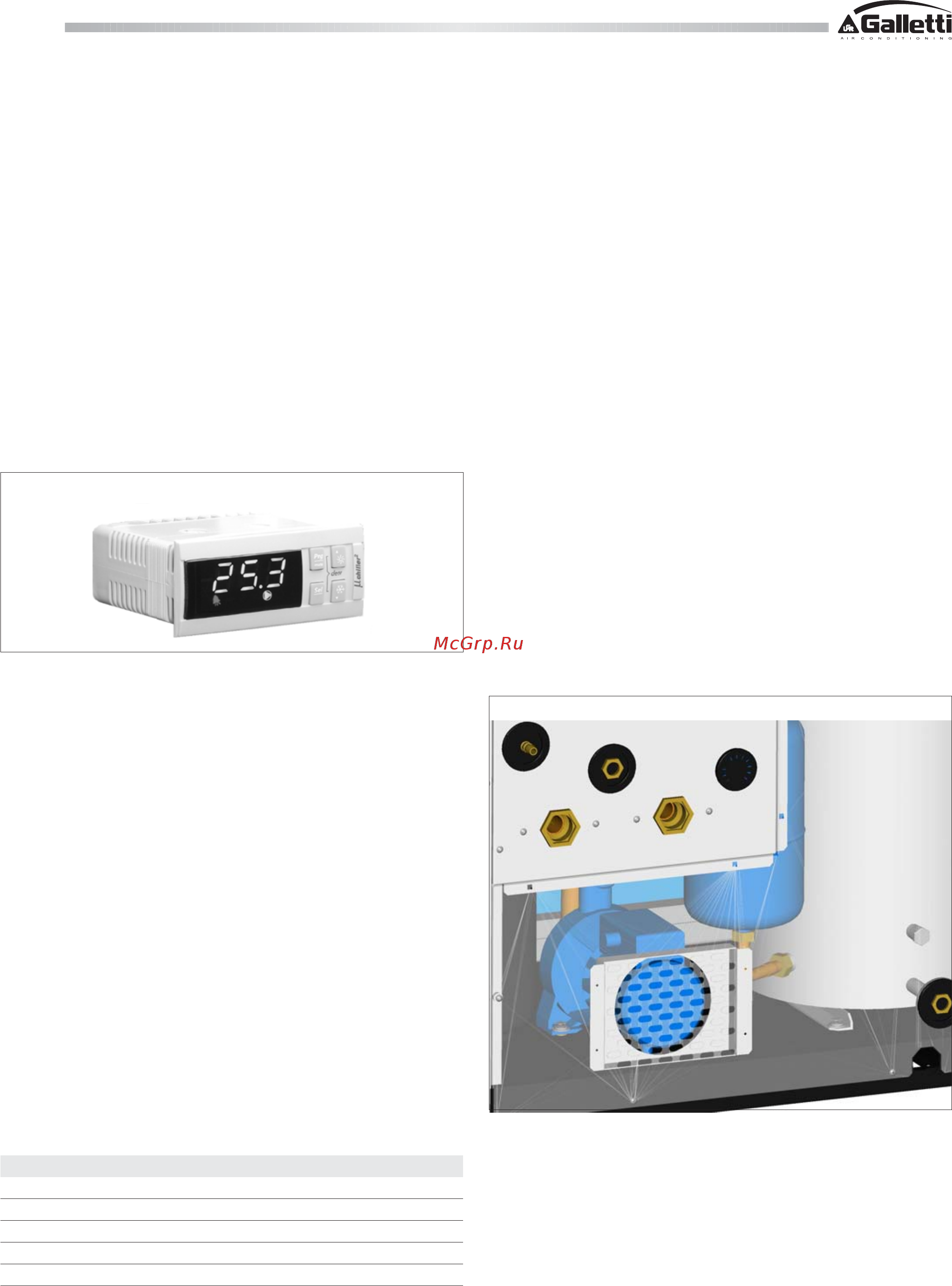

![Galletti МСС-С 07 [3/24] Constructive features](/views2/1576245/page3/bg3.png)
3
RG66002701 - Rev 01
The technical and dimensional data reported in this manual may be modified
MCC
2 CONSTRUCTIVE FEATURES
REFRIGERANT GAS: R410A
STRUCTURE
Galvanised sheet steel supporting base and enclosing panels made of
Peraluman to ensure effective protection against corrosive agents.
All bolts and screws and fastening devices are made of non-oxidisable
materials, or carbon steel that has undergone surface-passivating treatments.
The compressor compartment is completely sealed, acoustically isolated
and may be accessed on 2 sides (electric board side and plumbing
connection side) thanks to easy-to-remove panels that greatly simplify
maintenance and inspection.
The ventilation compartment is separated from the compressor compartment
of the unit, for inspection purposes when the unit is working.
For lifting the unit, ø 40-mm holes are provided in the base, through which
lifting pipes can be inserted and the vibration-damping feet can be accessed
for fastening.
MICROPROCESSOR CONTROL
The control panel enables the complete control of the MCC unit. It can be
easily accessed through a polycarbonate flap with IP65 protection rating.
Main functions
- Control over the temperature of water entering the evaporator
- Defrosting management (heat pumps) via pressure control
- Control of fan speed via pressure probe
- Complete alarm management
- Can be connected to an RS485 serial line (optional) for supervisory /
teleassistance operation
- Integrated MODBUS protocol
- Can be connected to ERGO networks (via RS485 optional)
- A remote terminal that reproduces the control functions is available as
optional (not compatible with ERGO)
- A configuration with external air probe that assures dynamic variation of
unit set point is available (optional).
Controlled devices:
- compressors
- fans
- cycle reversing valve (only for heating pump MCA-H)
- circulating pump
- antifreeze resistence (optional)
- alarm relay
The end user can change the parameter settings shown in the table within the
limits indicated.
Parameter min standard max
Cooling setpoint (°C) 8 11,5 20
Heating setpoint (°C) 15 40 45
Cooling hysterisis (°C) 0,3 2 5
Heating hysterisis (°C) 0,3 3 5
Antifreeze set point (°C) -40 3 5
All other parameters may be adjusted by an AUTHORISED SERVICE CENTRE
by means of a programming access key, except for the machine configuration,
which may be modified exclusively by GALLETTI S.p.A.
REFRIGERANT CIRCUIT
- scroll compressor fitted in a sound proofed compartment
- heat exchanger with stainless steel braze-welded plates optimised for
type of plate and distribution for R410A.
- finned block condenser coil with copper pipping and aluminium fins.
- dehydration filter.
- refrigerant sight glass with humidity indicator.
- thermostatic valve with external equalization and integrated MOP function.
- cycle - reversing valve (heat pump models only).
- check valves (heat pump only).
- liquid receiver (heat pump only).
- high and low pressure switches.
- safety valve.
- Schrader valves for checks and/or maintenance.
- refrigerant manometers (options).
TAYLORED HYDRONIC KIT
To simplify the connection of the MCC unit to user plant , 3 different hydraulic
kit are available.:
- base unit (MCC..B)
- kit including water pump and expansion vessel (MCC..P)
- kit including water pump and expansion vessel and buffer tank (MCC..S)
The main features are:
- High performance pump with extended working range: suitable to operate
with glycol mix up to 30%.The pump is fitted in the compressors vane,
acoustically insulated and of easy access thanks to the openable
panels.The pump is provided with internal thermal protection.
The water pump is cooled by the external air through a suitable grille.
- expansion vessel
- water safety valve
- automatic filling system
- automatic vent valve
- differential pressure switch and antifreeze thermostat with probe on leaving
water side.
- buffer tank dowstream to the evaporator, best solution to reduce the
chilled water variation due to the compressor ON/OFF operation.
