22
RG66002701 - Rev 01
MCC
The technical and dimensional data reported in this manual may be modified

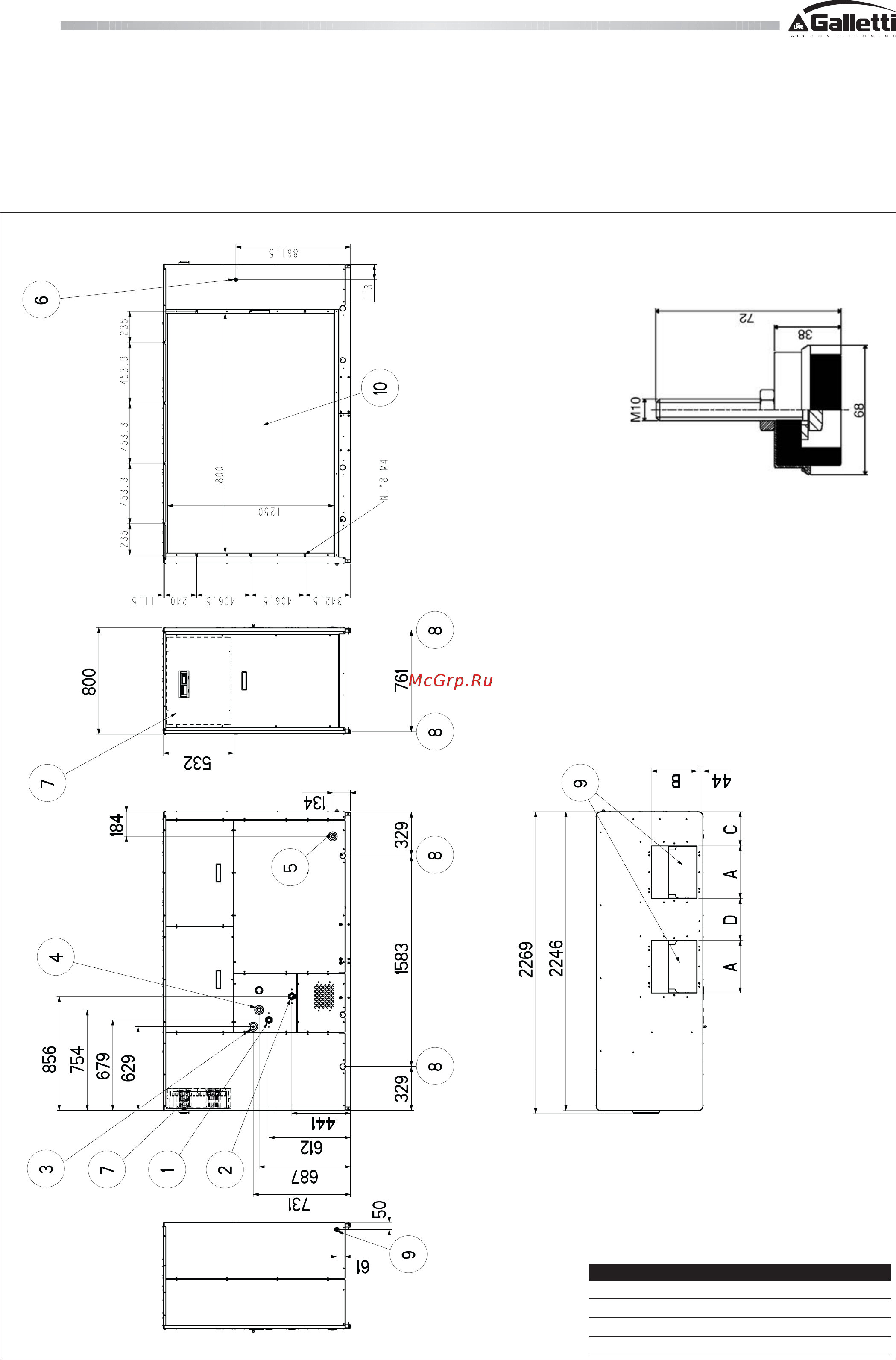

14 OVERALL DIMENSIONS MCC 25 - 37
1 1
1
/
4
" female water inlet
2 1
1
/
4
" female water outlet
3
1
/
2
" safety valve discharge
4
1
/
2
" female water supply
5
1
/
2
" drain manifold
6 Power supply Φ 28 mm
7 Electrical box
8 Dampers fastening points
9 Air discharge
10 Air suction
BASE DAMPERS
MCC 25 33 37
A 333 395 395
B 292 344 344
C 288 257 257
D 377 315 315
Dimensions in mm
