Cabinet design and EMC for components, Blocksize format
9.6 Arrangement of components and equipment
Manual
262 Manual, 01/2011, 6SL3097-4AC10-0BP2
9.6 Arrangement of components and equipment
9.6.1 General
The arrangement of the components and equipment takes account of
● Space requirements
● Cable routing
● Bending radiuses of the connecting cables
MOTION-CONNECT cables, refer to catalog PM21
● Heat dissipation
● EMC
Components are usually located centrally in a cabinet.
Always observe the mounting clearances necessary above and below the components.
9.6.2 Mounting
The components should be mounted on a conductive mounting surface to ensure low
impedance between the component and the mounting surface. Mounting plates with a
galvanized surface are suitable.

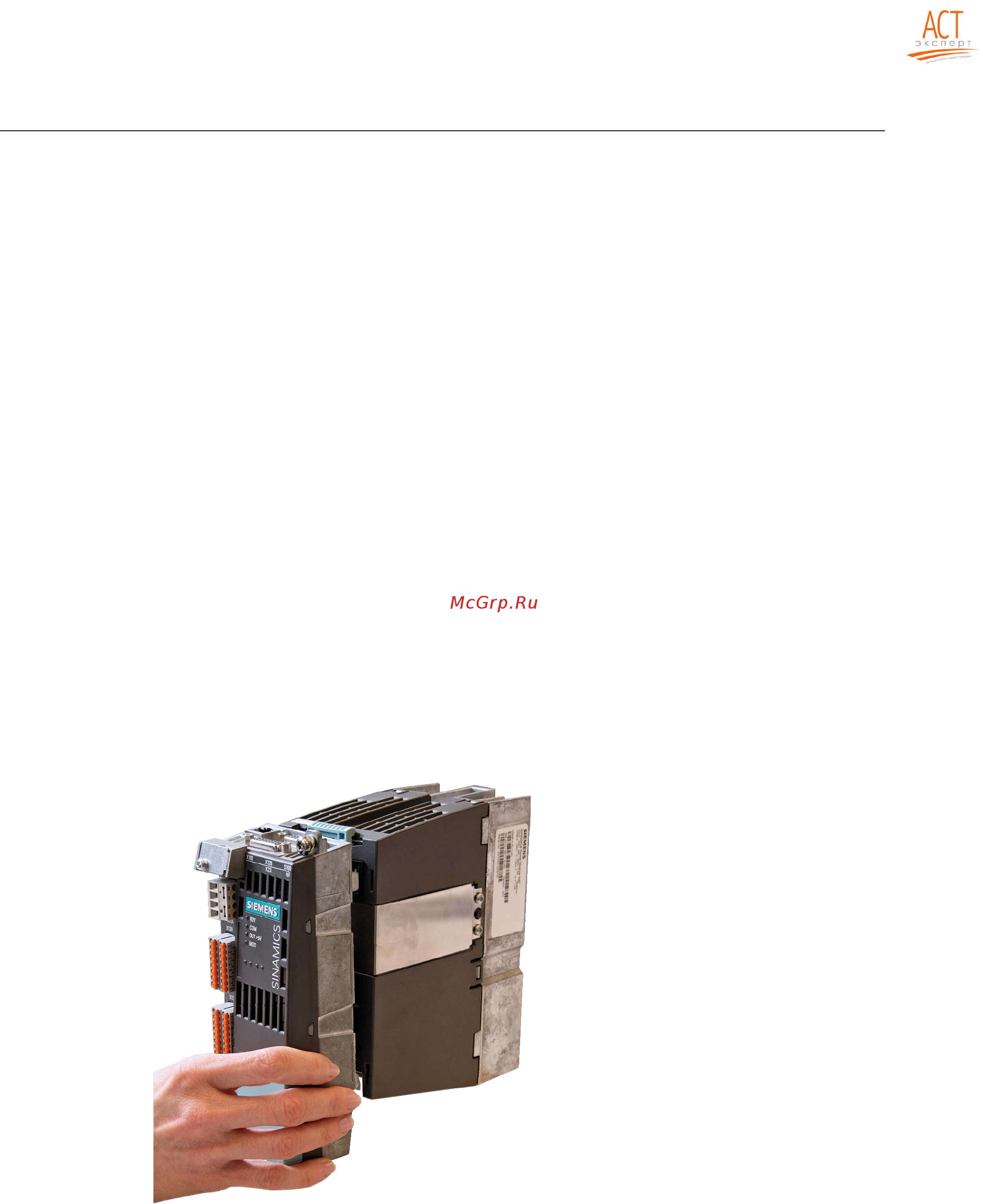

Figure 9-2 Mounting the CU305 onto the Power Module PM340 (frame size FSA)
