Supplementary system components and encoder system integration
7.2 Sensor Module Cabinet-Mounted SMC10
Manual
192 Manual, 01/2011, 6SL3097-4AC10-0BP2

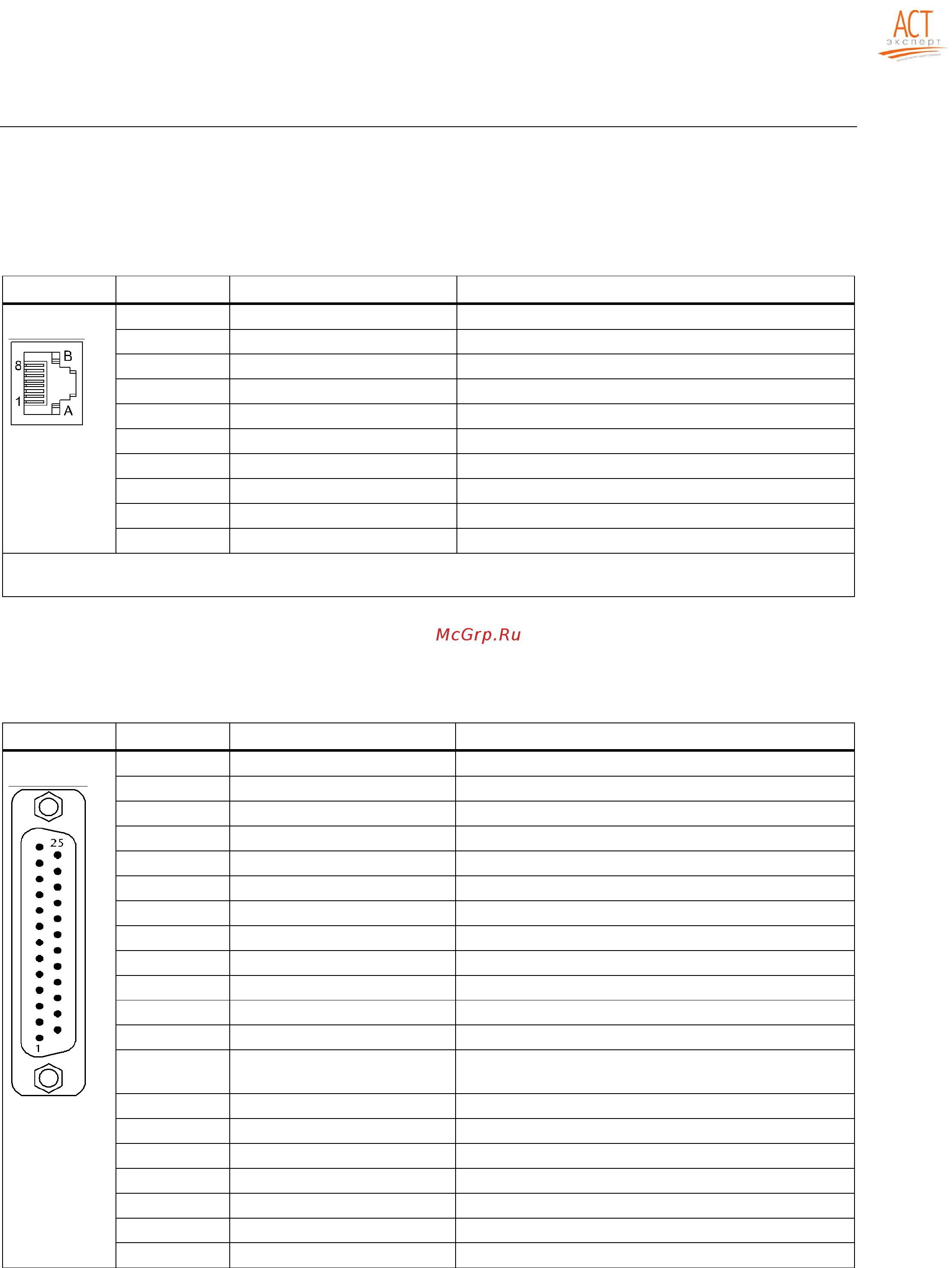

7.2.3.2 DRIVE-CLiQ interface X500
Table 7- 3 DRIVE-CLiQ interface X500
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A Reserved, do not use
B GND (0 V) Electronic ground
Connector type: RJ45 socket; blanking plate for DRIVE-CLiQ interface included in the scope of delivery;
blanking plate (50 pieces) Order no.: 6SL3066-4CA00-0AA0
7.2.3.3 X520 encoder system interface
Table 7- 4 X520 encoder system interface
Pin Signal name Technical specifications
1 Reserved, do not use
2 Reserved, do not use
3 S2 Resolver signal A (sin+)
4 S4 Inverted resolver signal A (sin-)
5 Ground Ground (for internal shield)
6 S1 Resolver signal B (cos+)
7 S3 Inverted resolver signal B (cos-)
8 Ground Ground (for internal shield)
9 R1 Resolver excitation positive
10 Reserved, do not use
11 R2 Resolver excitation negative
12 Reserved, do not use
13 + Temp Motor temperature measurement KTY84-1C130 (KTY+)
Temperature sensor KTY84-1C130 / PTC
14 Reserved, do not use
15 Reserved, do not use
16 Reserved, do not use
17 Reserved, do not use
18 Reserved, do not use
19 Reserved, do not use
20 Reserved, do not use
