Siemens 6SL3210-1SE14-1UA0 [221/318] Cable cross sections
![Siemens 6SL3210-1SE14-1UA0 [221/318] Cable cross sections](/views2/1587218/page221/bgdd.png)
Supplementary system components and encoder system integration
7.4 Sensor Module Cabinet-Mounted SMC30
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
221
For encoders with a 5 V supply at X521/X531, the cable lengths depend on the encoder
current (for 0.5 mm
2
cable cross-sections):
(QFRGHUSRZHU
&DEOHOHQJWK>P@

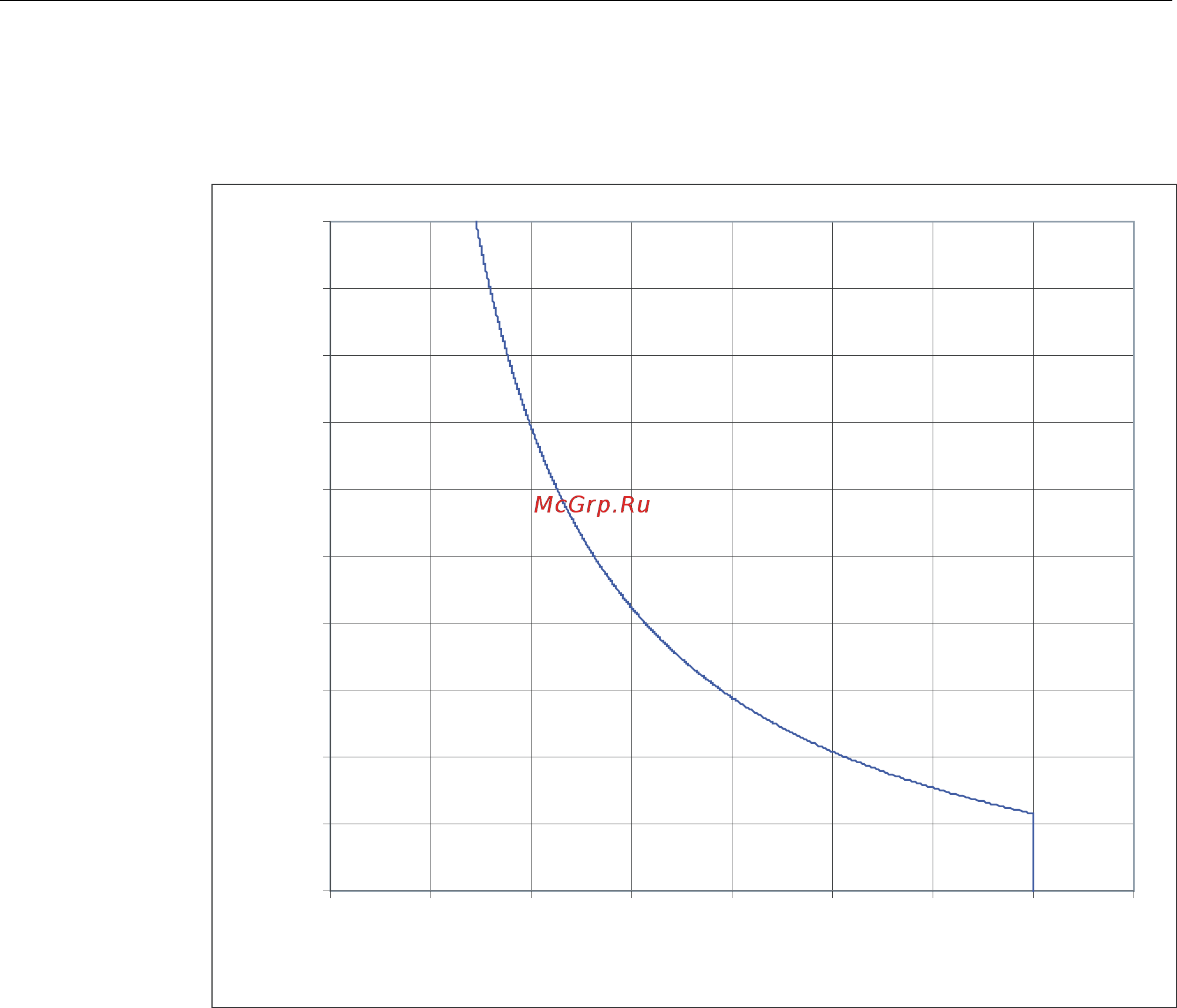

Figure 7-17 Max. cable length as a function of the encoder current drawn
For encoders without Remote Sense the permissible cable length is restricted to 100 m
(reason: the voltage drop depends on the cable length and the encoder current).
