Kohler Courage SV810 [28/84] Fuel system

Fuel System

28 32 690 01 Rev. HKohlerEngines.com

Governor/Throttle Control Connections

M

C

E

I

H

I

D

C

F

A

E

G

C

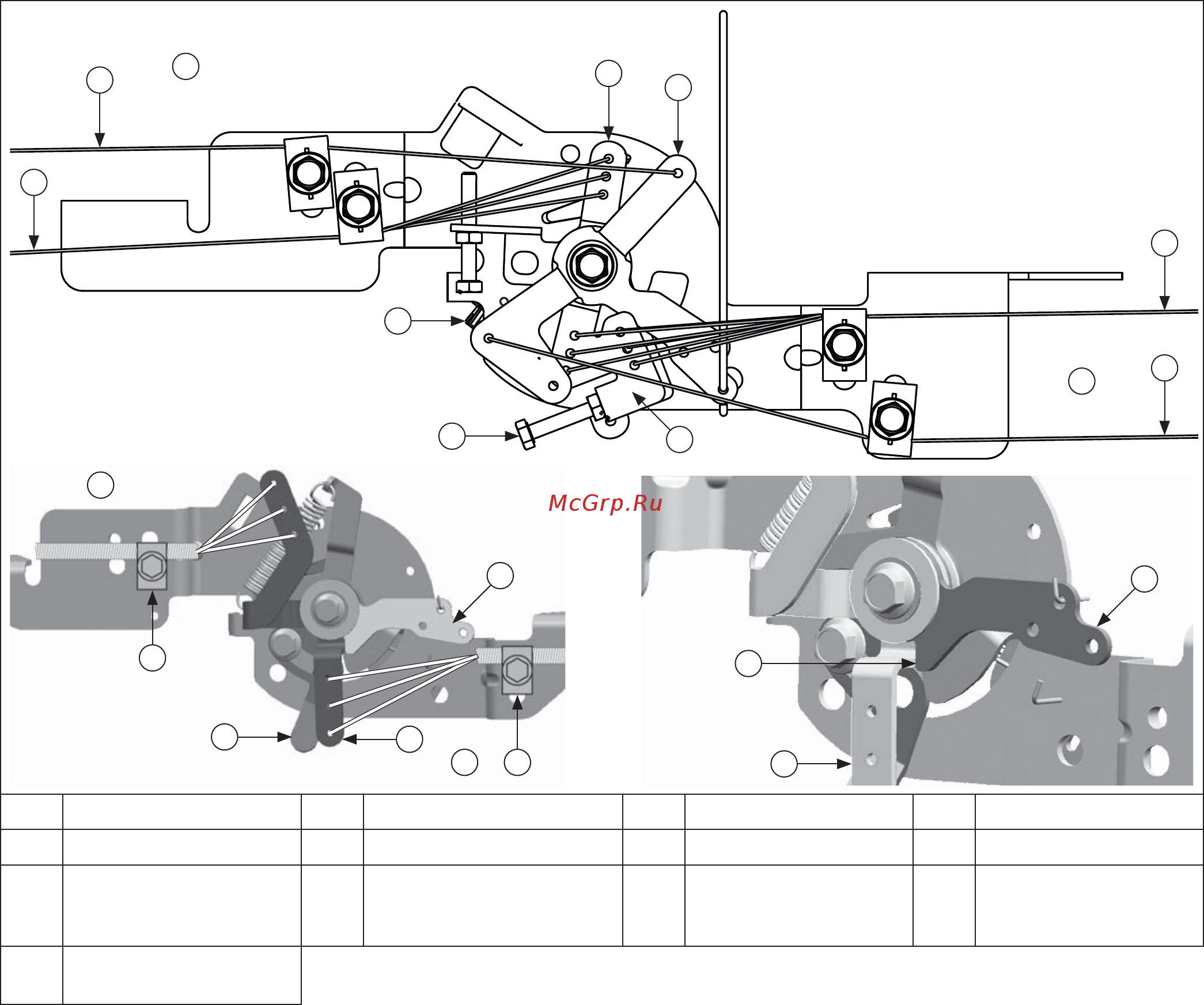

A Left Side Pull B Cable Clamp C Speed Control Lever D Speed Setting Lever

M

High Speed Control

Lever

UNITIZED THROTTLE AND CHOKE CONTROL

Some engines are equipped with a unitized throttle and choke control. This assembly controls choke and engine

speed with a single lever. Engines with a unitized throttle and choke control will have either a left side pull or a right

side pull.
