71
Reassembly
32 690 01 Rev. H KohlerEngines.com

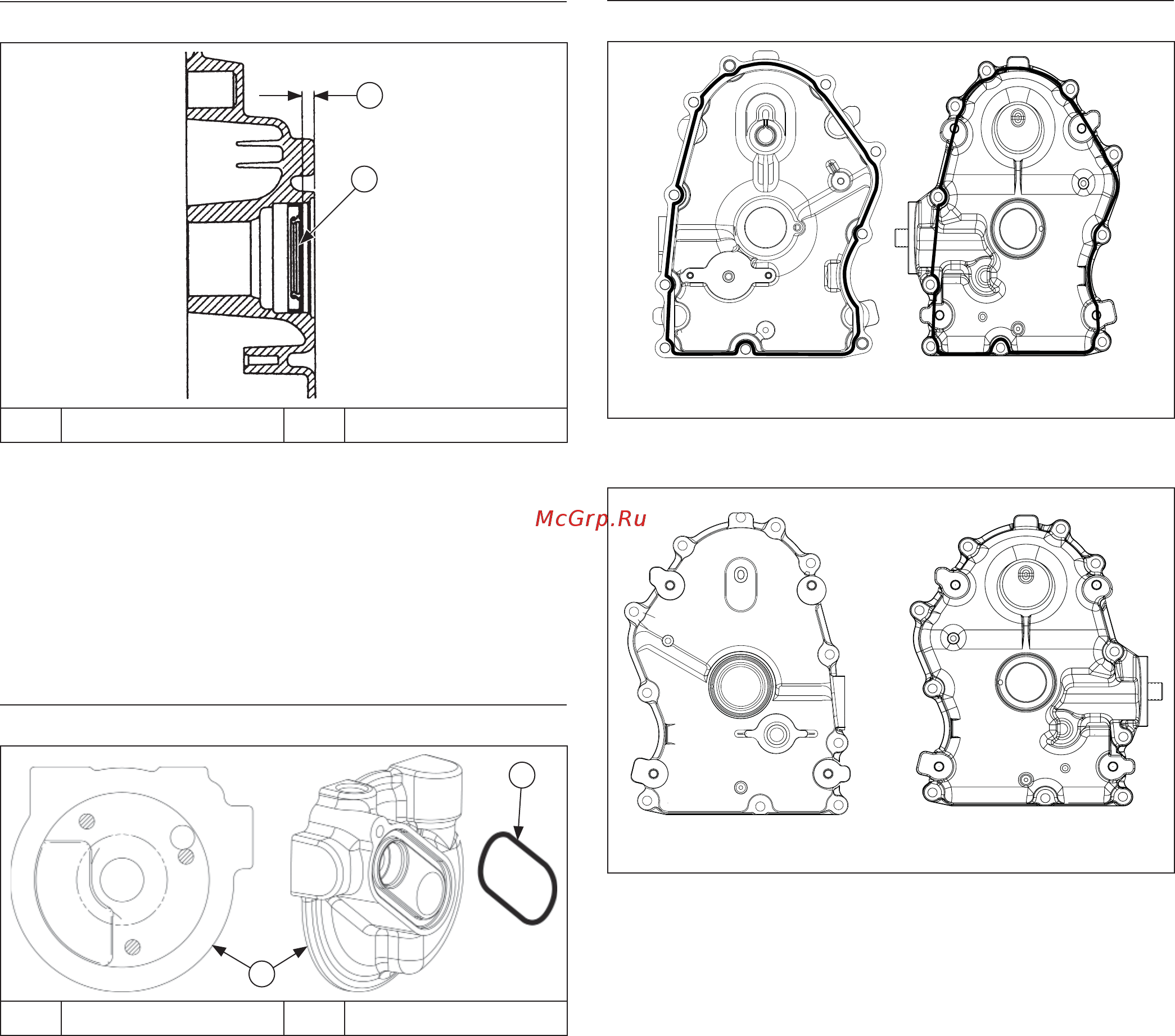

Install Oil Seal in Oil Pan
Oil Seal Component and Detail
A
B
A 6.5 mm (0.255 in.) B Oil Seal
1. Check to make sure there are no nicks or burrs in
crankshaft bore of oil pan.
2. Apply a light coat of engine oil to outside diameter of
oil seal.
3. Drive oil seal into oil pan using a seal driver. Make
sure oil seal is installed straight and true in bore, to
depth shown.
Install Oil Feed Tubes and Filter Adapter
(Style A Oil Pan Only)
Oil Filter Adapter Components
A
B
A Oil Filter Adapter B O-Ring
1. Lubricate new O-rings with clean oil and install into
groove on ends of oil pump oil feed tube.
2. Install oil feed tube with O-rings. Push in until seated
into outlet of oil pump. Make sure inner O-ring is not
unseated or damaged when installing.
3. Slide oil feed tube through oil pan and into hole for
main bearing. A small amount of grease applied to
outside, forward end of tube will hold tube in position
until adapter is installed.
4. Apply a small amount of grease and install a new
O-ring into groove of adapter for oil fi lter.
5. Position adapter, aligning locating pin with
corresponding recess in oil pan. Install fl at washer
(plastic adapters only) onto adapter nipple, then
insert through adapter, surrounding oil feed tube and
fi nger tighten. Tighten nipple and torque to 33.9 N·m
(300 in. lb.). Do not overtighten.
Install Oil Pan Assembly
Sealant Pattern
Style A
Style B
Fastener Torque Sequence
1
10
8
6
4
2
9
7
5
3
1
10
8
6
4
2
9
7
5
3
Style A
Style B
RTV sealant is used as a gasket between oil pan
and crankcase. Refer to Tools and Aids for a listing of
approved sealants. Always use fresh sealant. Using
outdated sealant can result in leakage.
1. Be sure sealing surfaces have been cleaned and
prepared as described at beginning of Reassembly.
2. Check to make sure there are no nicks or burrs on
sealing surfaces of oil pan or crankcase.
3. Apply a 1.5 mm (1/16 in.) bead of black RTV sealant
to sealing surface of oil pan. See sealant pattern. Oil
pan must be installed within 5 minutes of sealant
being applied for proper sealing to occur.
4. Make sure end of governor cross shaft is lying
against bottom of cylinder inside crankcase.
5. Install oil pan to crankcase. Carefully seat camshaft
with shim and crankshaft into their mating bearings.
Rotate crankshaft to help engage oil pump and
governor gear meshes.
6. Install 10 screws securing oil pan to crankcase.
Torque fasteners in sequence shown to 24.4 N·m
(216 in. lb). On some engines 1 of 10 mounting
screws is plated. Plated screw is typically installed in
hole location 6 as shown.
