Reassembly
32 690 01 Rev. H KohlerEngines.com

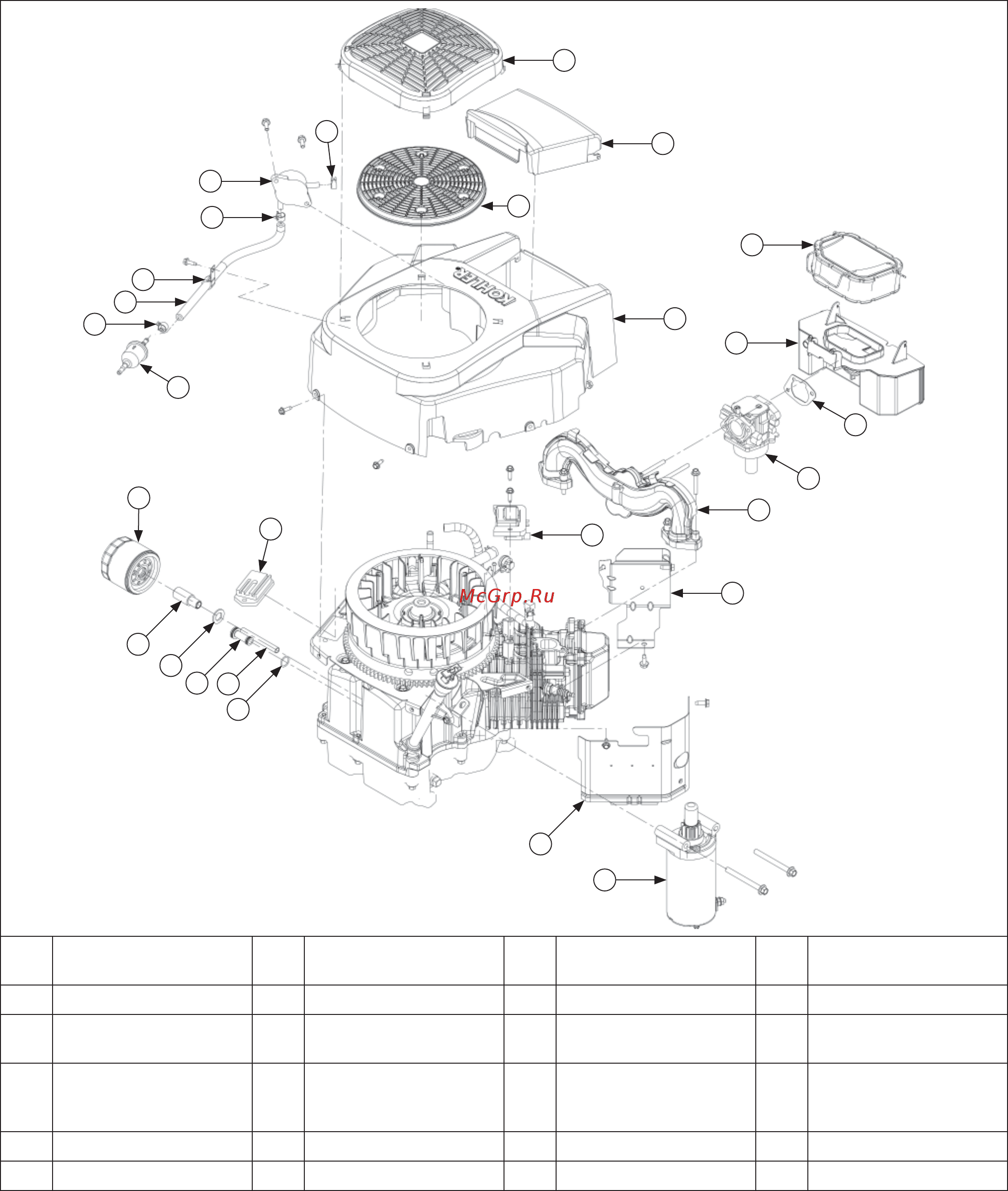

External Engine Components
J
X
E
P
G
W
V
E
E
F
H
K
I
L
M
N
L
O
B
A
C
D
R
Q
S
T
U
A Fixed Guard B
Air Cleaner
Access Door
C Debris Screen D Blower Housing
E Hose Clamp F Fuel Pump G Hose Clip H Fuel Line
I Fuel Filter J Oil Filter K
Nipple
(Style A Oil Pan)
L
O-Ring
(Style A Oil Pan)
M
Oil Feed Tube
(Oil Pump Outlet)
(Style A Oil Pan)
N
Oil Feed Tube
(Filter to Pan)
(Style A Oil Pan)
O Outer Baffl e P Electric Starter
Q Inner Baffl e R Ignition Module S Intake Manifold T Carburetor
U Gasket V Air Cleaner Base W Air Cleaner X Rectifi er-Regulator
