KSB Etanorm ETN 065-040-160 [34/40] Centrifugal pumps with shaft seal
![KSB Etanorm ETN 080-065-250 [34/40] Centrifugal pumps with shaft seal](/views2/1603700/page34/bg22.png)
Gland packing and clamped casing cover
This view applies to the following pump sizes:
040-025-160 050-32-125.1 065-040-125 065-050-125 080-065-125 100-080-160 125-100-160 150-125-200 200-150-200
050-32-160.1 065-040-160 065-050-160 080-065-160 100-080-200 125-100-200
050-32-125
050-32-160
[ Supplied in packaging units only

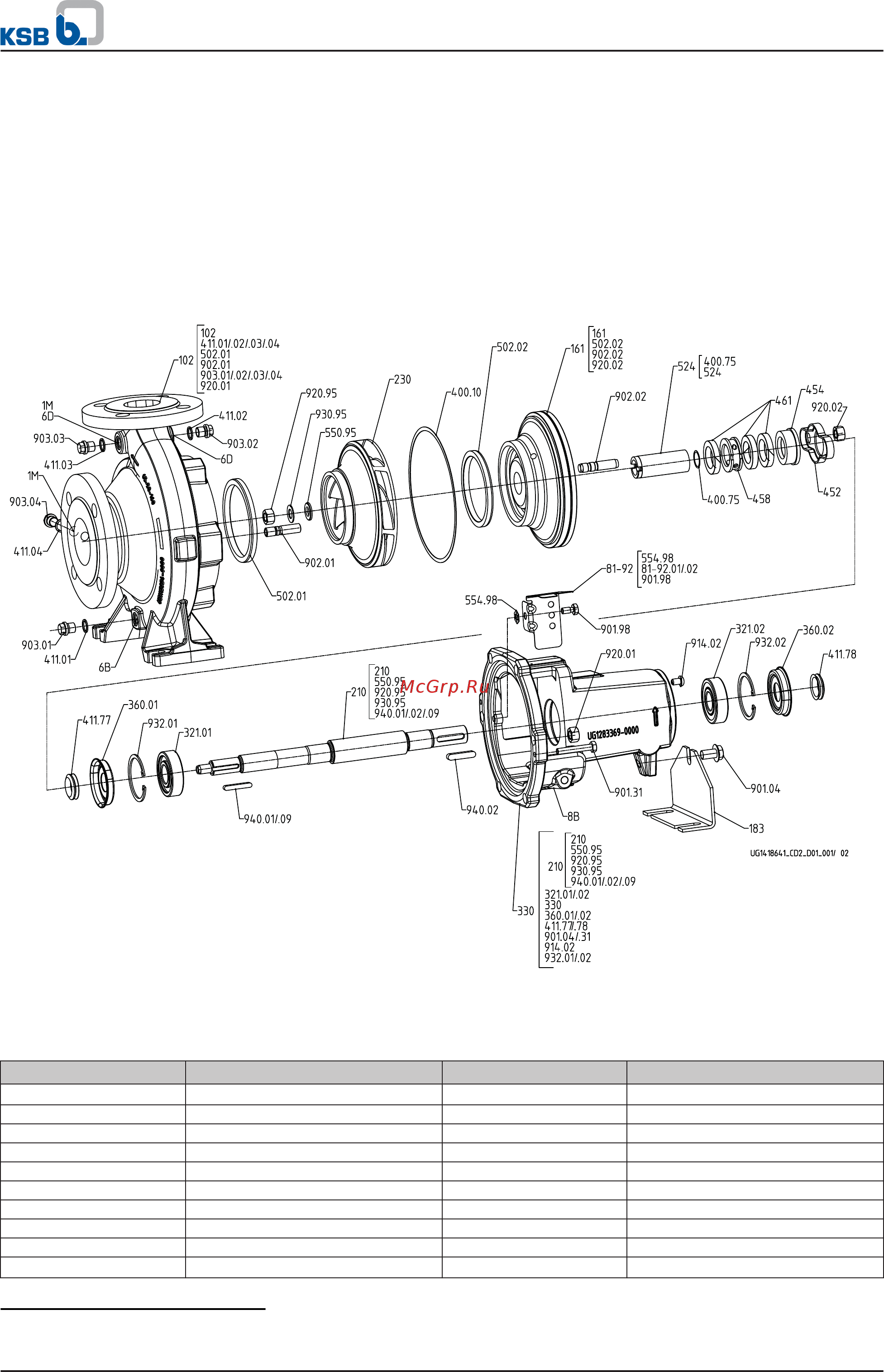

Pump set with gland packing and clamped casing cover
List of components
Part No. Description Part No. Description
102 Volute casing
550.95
40)
Disc
161 Casing cover 554.98 Lock washer
183 Support foot 81-92.01/.02 Cover plate
210 Shaft 901.04/.30/.98 Hexagon head bolt
230 Impeller 902.01/.02 Stud
321.01/.02 Deep groove ball bearing 903.01/.02/.03/.04 Screw plug
330 Bearing bracket 914.02 Round-head screw
360.01./02 Bearing cover 920.01/.02/.15/.95 Hexagon nut
400.10/.75 Gasket 930.95 Spring washer
411.01/.02/.03/.04
Joint ring
41)
932.01/.02 Circlip
40)
For shaft unit 25 only
