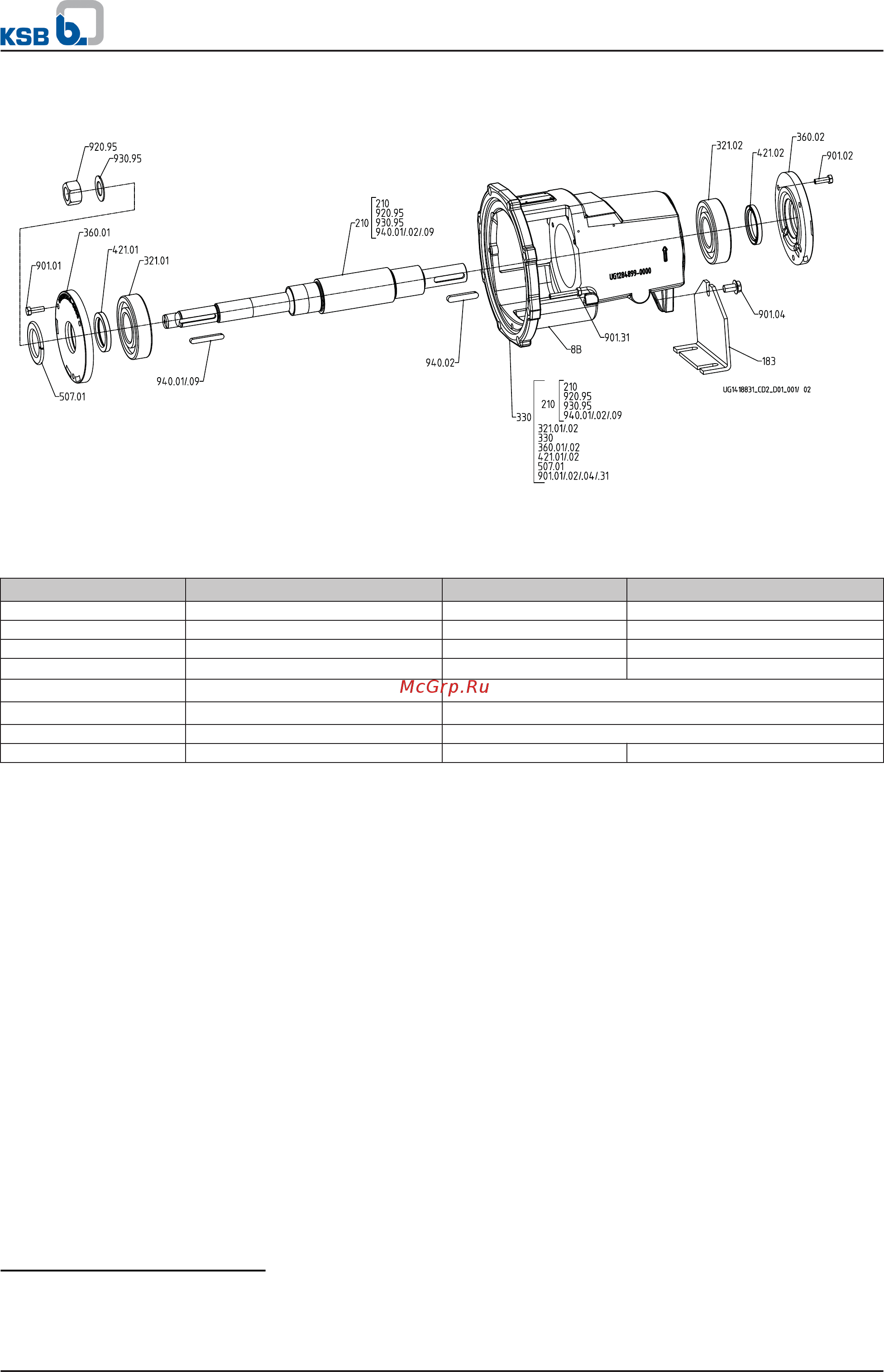

Reinforced bearings
Version with reinforced bearings (shaft units 50 and 60)
List of components
45)
Part No. Description Part No. Description
183 Support foot 901.01/.02/.04/.31 Hexagon head bolt
210 Shaft 920.95 Hexagon nut
330 Bearing bracket 930.95 Spring washer
321.01/.02 Deep groove ball bearing
940.01/.02/.09
46)
Key
360.01/.02 Bearing cover
400
47)
Gasket
421.01/.02 Lip seal Connections:
507.01 Thrower 8B Leakage drain
45)
Some individual components may not be applicable, depending on the size and material.
46)
For shaft unit 60 only
47)
For oil-lubricated pump sets only
