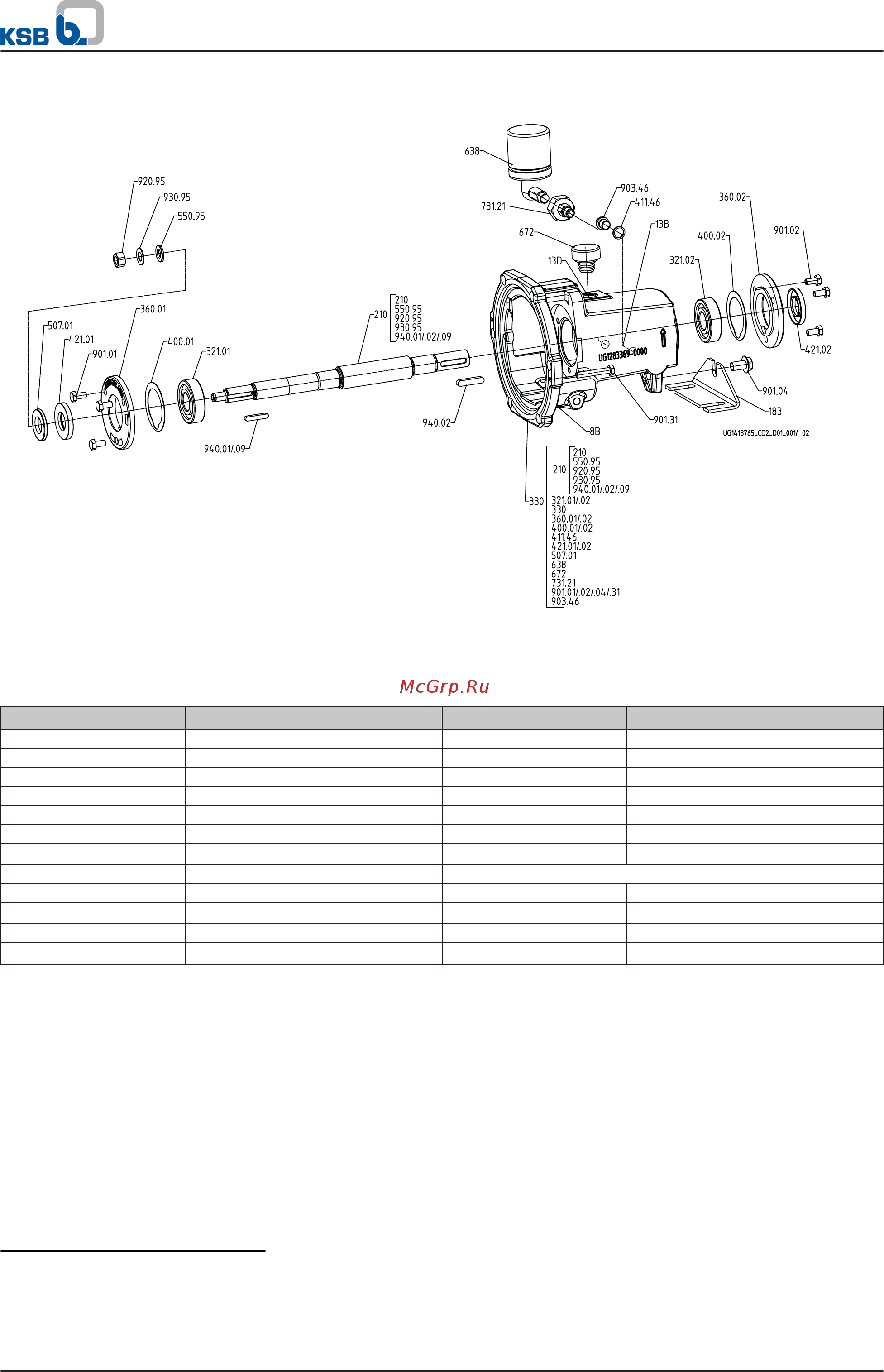

Oil lubrication with constant level oiler
Version with oil lubrication and constant level oiler
List of components
48)
Part No. Description Part No. Description
183 Support foot 672 Vent
210 Shaft 731.21 Pipe union
330 Bearing bracket 901.01/.02/.04/.31 Hexagon head bolt
321.01/.02 Deep groove ball bearing 903.46 Screw plug
360.01/.02 Bearing cover 920.95 Hexagon nut
400.01/.02 Gasket 930.95 Spring washer
411.46 Joint ring
940.01/.02/.09
49)
Key
421.01/.02 Lip seal Connections:
507.01 Thrower 8B Leakage drain
550.95
50)
Disc 13B Oil drain
638 Constant level oiler 13D Oil filling and venting
642
51)
Oil level sight glass
48)
Some individual components may not be applicable, depending on the size and material.
49)
For shaft units 55 and 60 only
50)
For shaft unit 25 only
51)
Always supplied with constant level oiler and oil level sight glass for region B.
