Indesit KJ3G2/R [14/44] Electrical connection

• Do not position

blinds behind the

cooker or less than 200

mm away from its

sides.

• Any hoods must be

installed according to

the instructions listed in

the relevant operating

manual.

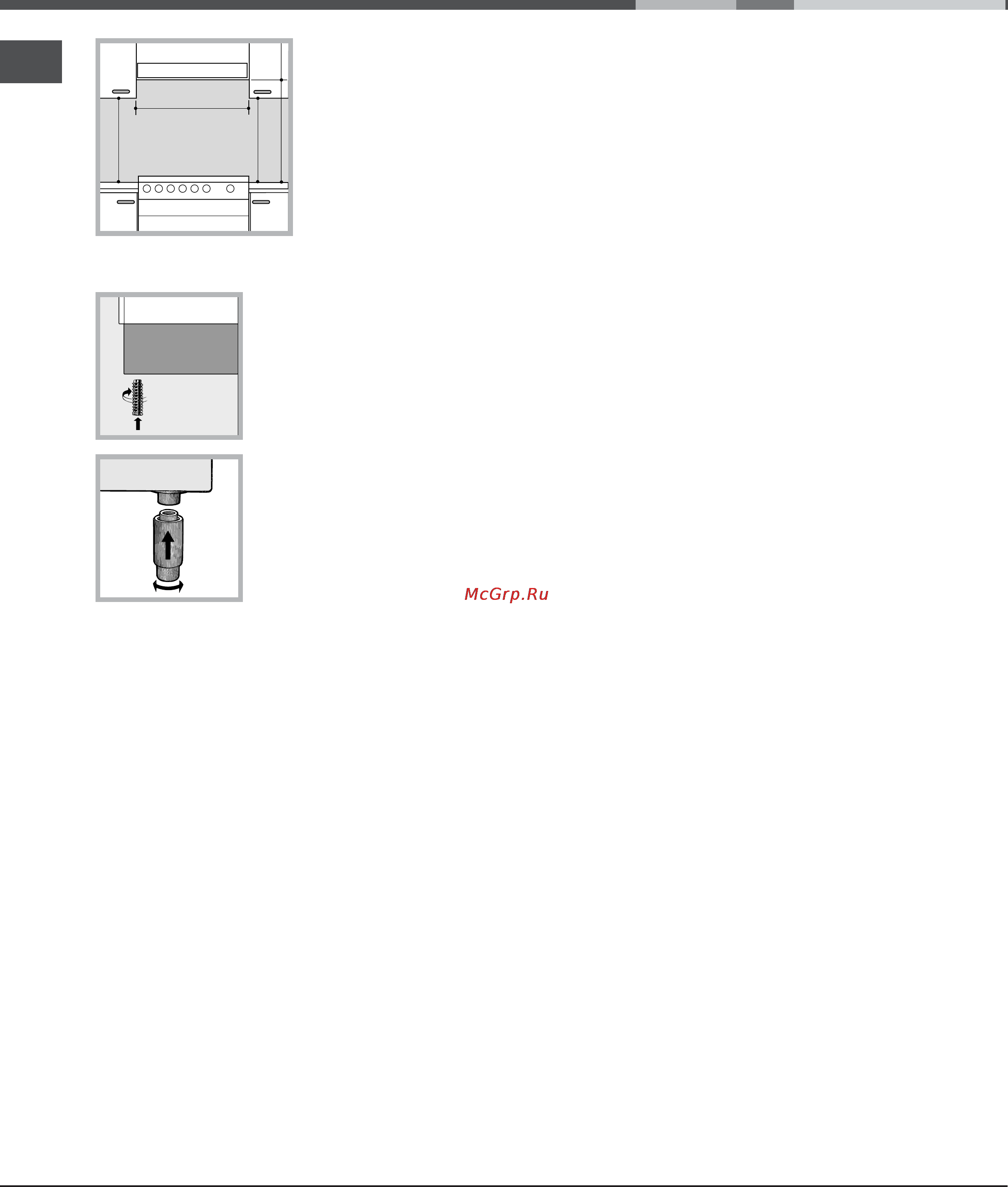

Levelling

If it is necessary to level the

appliance, screw the

adjustable feet into the places

provided on each corner of the

base of the cooker (

see

figure

The legs* fit into the slots on

the underside of the base of

the cooker.

Electrical connection

Install a standardised plug corresponding to the

load indicated on the appliance data plate (

see

Technical data table

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum

contact opening of 3 mm installed between the

appliance and the mains. The circuit-breaker must be

suitable for the charge indicated and must comply with

NFC 15-100 regulations (the earthing wire must not be

interrupted by the circuit-breaker). The supply cable

must be positioned so that it does not come into

contact with temperatures higher than 50°C at any point.

Before connecting the appliance to the power

supply, make sure that:

• The appliance is earthed and the plug is compliant

with the law.

• The socket can withstand the maximum power of

the appliance, which is indicated by the data plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it.

Do not use extension cords or multiple sockets.

HOOD

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

600

Min. mm.

420

Min. mm.

* Only available in certain models

! Once the appliance has been installed, the power

supply cable and the electrical socket must be

easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only.

! The manufacturer declines any liability should

these safety measures not be observed.

Gas connection

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel

hose, in accordance with current national legislation

and after making sure that the appliance is suited to

the type of gas with which it will be supplied (see the

rating sticker on the cover: if this is not the case

see

below

). When using liquid gas from a cylinder, install a

pressure regulator which complies with current national

regulations. To make connection easier, the gas

supply may be turned sideways*: reverse the position

of the hose holder with that of the cap and replace the

gasket that is supplied with the appliance.

! Check that the pressure of the gas supply is

consistent with the values indicated in the Table of

burner and nozzle specifications (

see below

). This

will ensure the safe operation and durability of your

appliance while maintaining efficient energy

consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with current

national legislation. The internal diameter of the hose

must measure: 8 mm for liquid gas supply; 13 mm

for methane gas supply.

Once the connection has been performed, make

sure that the hose:

• Does not come into contact with any parts that

reach temperatures of over 50°C.

• Is not subject to any pulling or twisting forces and

that it is not kinked or bent.

• Does not come into contact with blades, sharp

corners or moving parts and that it is not

compressed.

• Is easy to inspect along its whole length so that

its condition may be checked.

• Is shorter than 1500 mm.

• Fits firmly into place at both ends, where it will be

fixed using clamps that comply with current

regulations.
